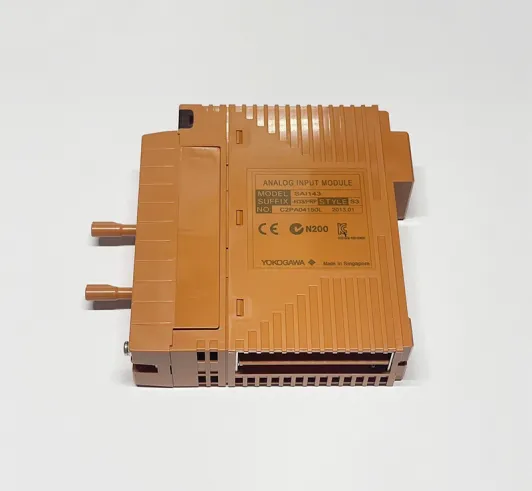

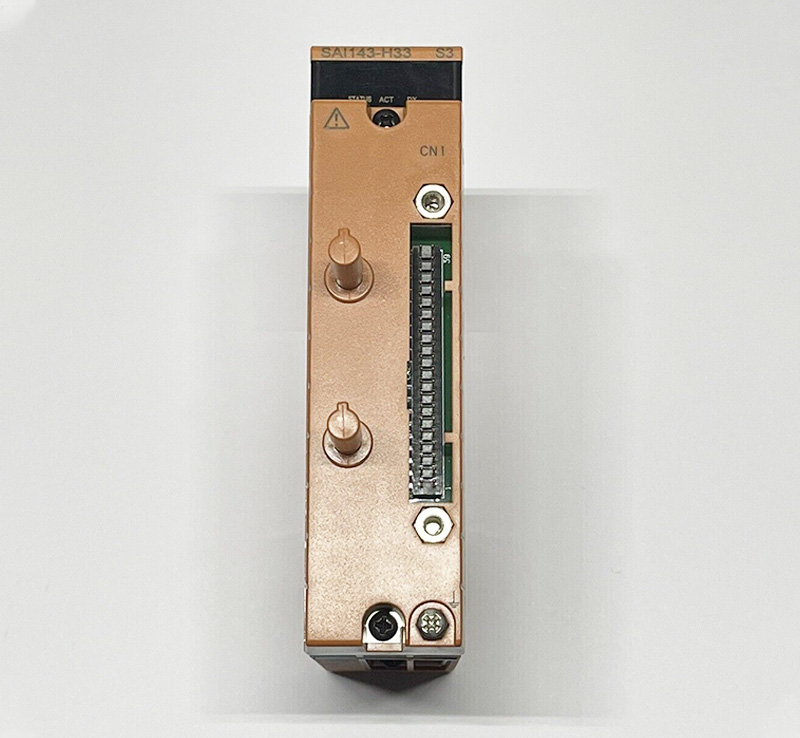

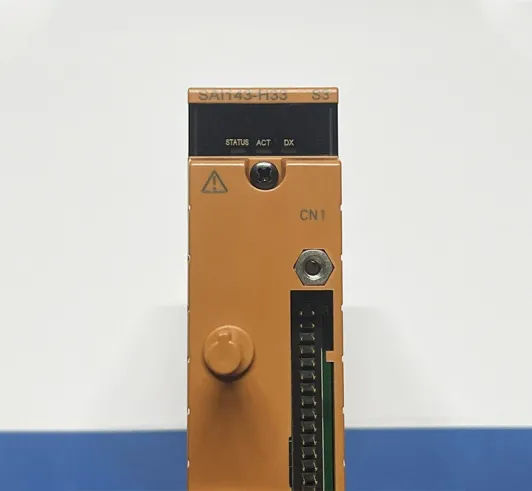

YOKOGAWA SAI143-H33 Communication Module

Brand: YOKOGAWA

Model number: SAI143-H33

Colour: new

Warranty: 12 months

Lead Time: 3-day working day

Country of origin: Japan

Price: Please contact us

Product weight: 0.35kg

Shipping Port: Xiamen, China

Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Product Dimensions:

YOKOGAWA  SAI143-H33  Communication Module

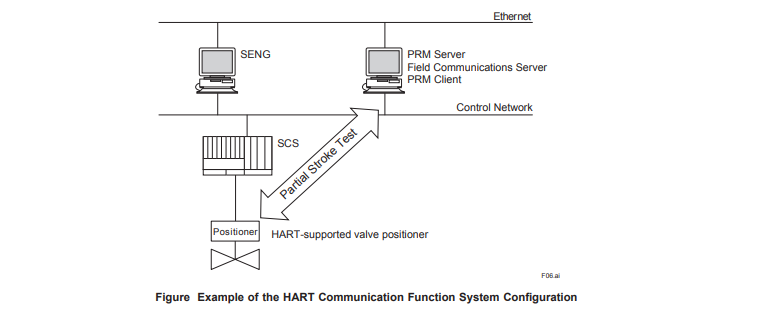

HART communicationn Analog I/O module with HART communication on ProSafe-RS allows Plant Resource Manager (PRM) to manage the HART communication devices connected to input and output modules on SCS. Also, the analog output module allows PRM client to conduct Partial Stroke Test (PST) on HART-supported valve positioner equipped with the PST function. The HART communication functions on ProSafe-RS are interference-free and have no impact on the safety functions on SCS.

*1: When selecting SAI533-H63 or -HF3, you can not choose the option code of pressure clamp terminal block and MIL cable connector.

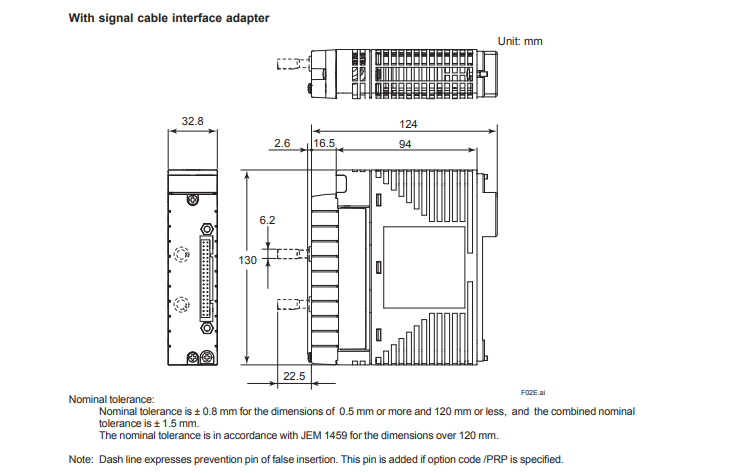

*2: When using this module in a dual-redundant configuration, order an additional module with the same specifications but without option codes. *3: When SAI533-H63 or -HF3 is selected, you can choose the option code for prevention pin of false insertion. A mechanism to prevent wrong type I/O module insertion is supported with signal cable. The signal cable used with this I/O module must have option code /SAI533

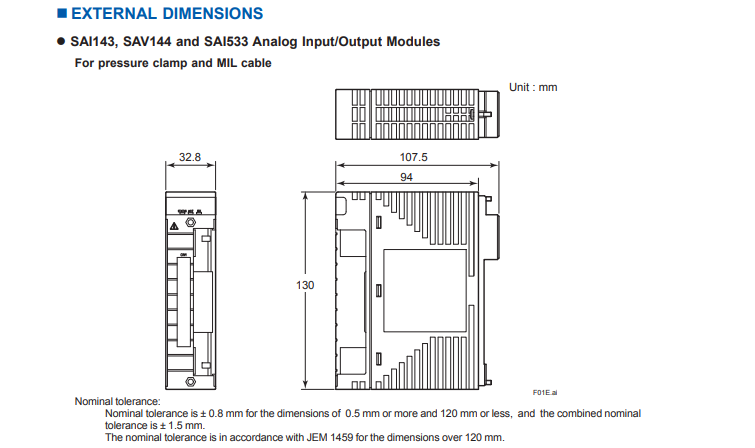

Nominal tolerance: Nominal tolerance is ± 0.8 mm for the dimensions of 0.5 mm or more and 120 mm or less, and the combined nominal tolerance is ± 1.5 mm. The nominal tolerance is in accordance with JEM 1459 for the dimensions over 120 mm.
