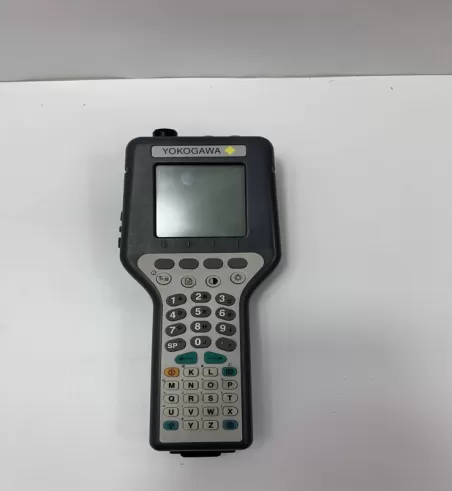

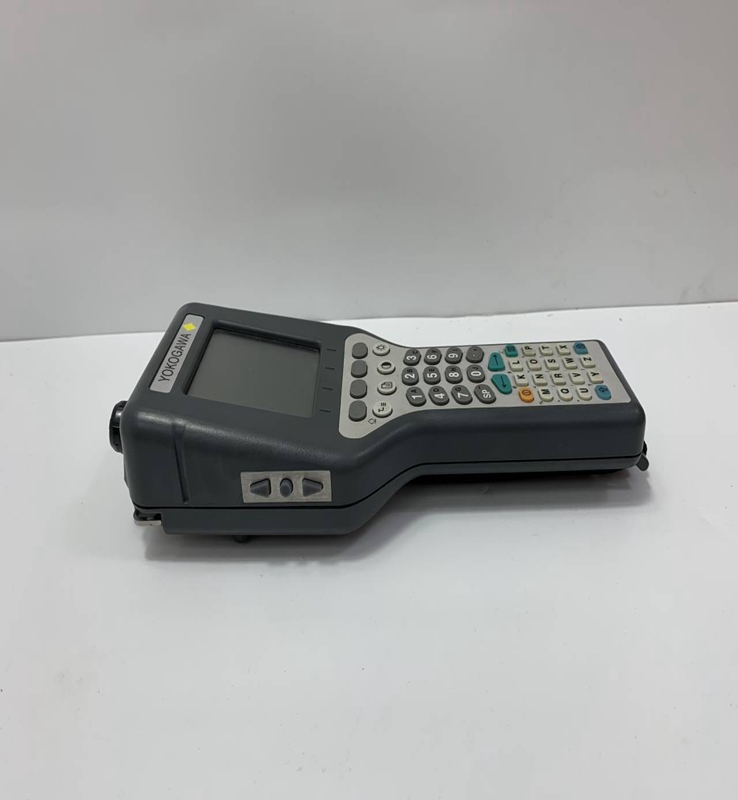

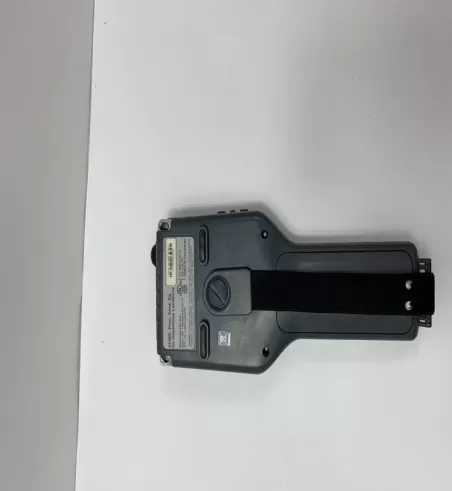

YHC4150X-01 Yokogawa

Product Dimensions：

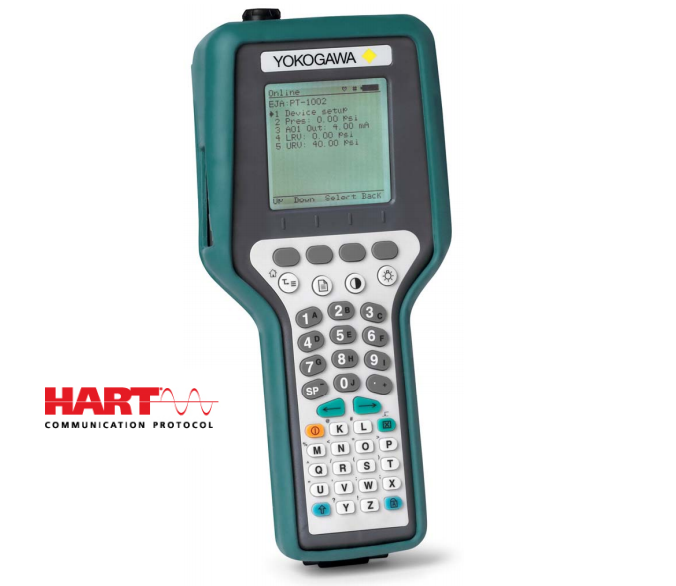

The YHC 4150X HART Communicator is a full function HART Communicator supporting Universal,

Common Practice and Device Specific commands for commissioning, configuration and maintenance

operations. HART field devices can be configured, polled, and trimmed using the YHC with HART

communications.

Note: For Intrinsically Safe YHC models, consult the Hazardous Area Use section of this manual and the

Intrinsic Safety Control Drawing in the Appendix of this manual for specific details on use of approved

YHCs and applicable restrictions.

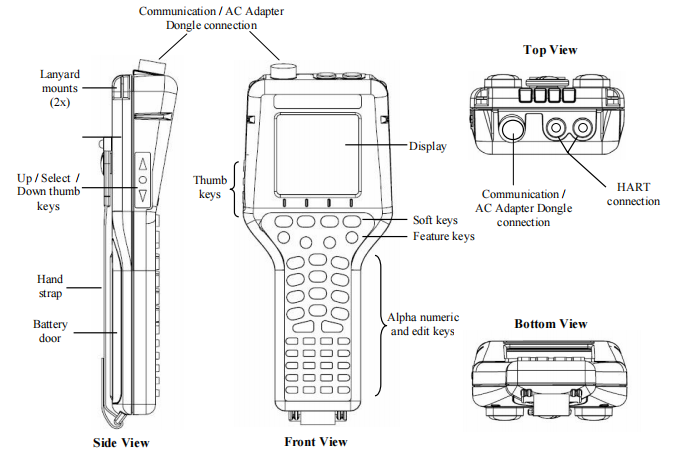

The display of the YHC is a 128 x 128 pixel graphic display with backlight. Viewable area is 2.6” x 2.6” for

13 viewable message lines. The display provides three types of information: 1) header information including

display titles, HART communication status indicator, SHIFT indicator, alpha or numeric entry mode

indicator and battery gauge, 2) main data display section for display of YHC operating menus, HART

menus, and device information, and 3) footer information defining the display’s soft key functionality

Pressing the ON/OFF key powers up or turns off the YHC. As the unit powers up, an internal

diagnostic check is performed. Any abnormalities are posted on the display. The unit will briefly

display the YHC model number and then check for a HART device with address of zero. If a device

with zero address is found, the YHC immediately goes into online status and displays information

about the device. If no device is found, the YHC enters the YHC Main navigation screen. To turn the

YHC off, press and hold the ON/OFF key for approximately .5 seconds. Unit will power down

provided a critical HART operation is not in process.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

YokogawaAFV10D

YokogawaUT55A-040-11-00

YokogawaADV151

YokogawaANB10D

YokogawaAAI143-S

YokogawaAAI543-S

YokogawaADV551

YokogawaSAI143-H63

YokogawaPW301

YokogawaAAI543-H00

YokogawaEB401-10

YokogawaUM-330-00

YokogawaR/475-HP1EKLUGMT/S

YokogawaUT55A-132-11-00

YokogawaEC401-51

YokogawaNFAI143H

YokogawaNFDV151

YokogawaNFPW444-10

YokogawaNFAP135

YokogawaNFSB100-S50

YokogawaNFLR121

YokogawaCP401

YokogawaFLXA21-D-P-D-AB-C1-NN-A-N-LA-N-NN/UM

YokogawaADV151-P50

YokogawaYTA610-JA1A2DK/X2/KU2

YokogawaADV151-P00

YokogawaYTA110-EA4DN/KU2

YokogawaVF701

YokogawaSNT501

YokogawaSDV541-S63

YokogawaSDV144-S63

YokogawaYS1700

YokogawaEC401-50

Colour：new                                 Warranty: 12 months

Lead Time：3-day working day    Price: Please contact us

Shipping Port: Xiamen, China      Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
