SGMEV-04DDA6C YASKAWA

SGMEV-04DDA6C YASKAWA Output I/O module

Brand：YASKAWA Model number：SGMEV-04DDA6C

Country of origin: Japan Product weight：0.55kg

HS code：853710119

Inquire Now Next Product

Product Details：

Product Dimensions：

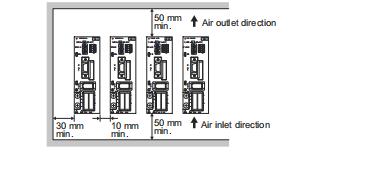

Space between SERVOPACK Units

• Be sure to keep a space between adjacent SERVOPACK units if they are mounted inside the control panel so that

the units can be cooled.

• Do not cover the inlet or outlet parts and prevent any foreign objects, such as metallic fragment, or combustibles

from entering the product.

Failure to observe this caution may cause internal elements to deteriorate resulting in malfunction or fire.

• Be sure to correctly ground the SERVOPACK and the servomotor.

• Wiring must be performed by an authorized person qualified in electrical work.

Protection for Power Supply Line

• Use a molded-case circuit breaker and fuse to protect the power supply line from high voltage. The SJDE SERVOPACK connects directly to a commercial power supply without a transformer, so always use a circuit breaker

and fuse to protect the SERVOPACK from accidental high voltage.

Caution for Grounding

Consider the following conditions when grounding the SERVOPACK.

• For a ground wire, use as thick a cable as possible (2.0 mm2 or thicker).

• A ground resistance of 100 (Ω) or less is recommended.

• Ground to one point only

Other Precautions

• Make sure that the emergency-stop circuit turns OFF the /S-ON signal as well as the power supply of the main

circuit. Refer to 3.14 EMG Sequence.

• An overtravel function is not provided for the SERVOPACK.

For system safety, include a sequence so that the /S-ON signal will turn OFF when the limit switch is activated.

• If the servomotor is used to drive a vertical axis, install a safety device with an alarm function to prevent the

workpiece from falling down. Failure to observe this precaution may result in injury or damage to the equipment

from fallen workpieces.

• Install an interlock system in the circuit to avoid any accident when opening or closing the machine’s protective

cover.

• Whether the electricity is served or not to the motor, do not use the motor being rotated from the outside.

• When restarting the power supply soon after turning OFF, alarm may occur to the SERVOPACK. Refer to the

power supply holding time in the following table to restart the power supply correctly.
