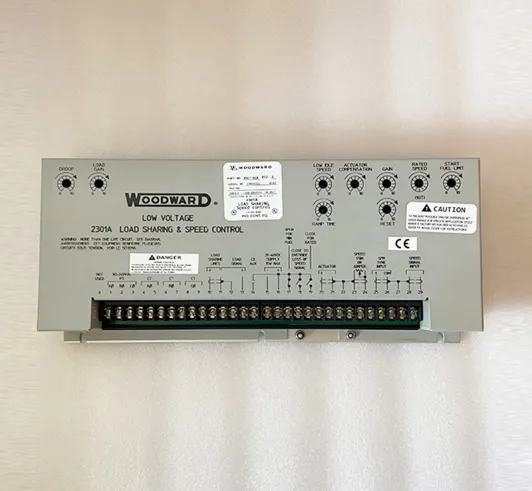

WOODWARD 9907-018 Load Sharing and Speed Control

Brand: WOODWARD

Model number: 9907-018

Colour: new

Warranty: 12 months

Lead Time: 3-day working day

Country of origin: U.S.A

Price: Please contact us

Product weight: 2.72kg

Shipping Port: Xiamen, China

Payment: T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Product Dimensions:

WOODWARD  9907-018  Load Sharing and Speed Control

This product is intended for installation in a “closed electrical operating area” or in a closed industrial control cabinet. Consider these requirements when selecting the mounting location:  Adequate ventilation for cooling·  Space for servicing and repair·  Protection from direct exposure to water or to a condensation-prone· environment  Protection from high-voltage or high-current devices, or devices which· produce electromagnetic interference  Avoidance of vibration·  Selection of a location that will provide an operating temperature range of· –40 to +70 °C (–40 to +158 °F)  The control must NOT be mounted on the engine.

All shielded cable must be twisted conductor pairs. Do not attempt to tin (solder) the braided shield. All signal lines should be shielded to prevent picking up stray signals from adjacent equipment. Connect the shields to the control terminals as shown in Figure 2-1 and in the plant wiring diagram (Figure 1-2). Wire exposed beyond the shield should be as short as possible, not exceeding 50 mm (2 inches). The other end of the shields must be left open and insulated from any other conductor. Do not run shielded signal wires with other wires carrying large currents. See Woodward application note 50532, EMI Control for Electronic Governing Systems, for more information. Where shielded cable is required, cut the cable to the desired length and prepare the cable as instructed below and shown in Figure 2-1. 1. Strip outer insulation from BOTH ENDS, exposing the braided or spiral wrapped shield. DO NOT CUT THE SHIELD. 2. Using a sharp, pointed tool, carefully spread the strands of the shield. 3. Pull inner conductor(s) out of the shield. If shield is the braided type, twist to prevent fraying. 4. Remove 6 mm (1/4 inch) of insulation from the inner conductor(s). 5. Connect wiring and shield as shown. In installations with severe electromagnetic interference (EMI), shielded wire run in conduit, double shielded wire, or other precautions may be required. Contact Woodward for more information.
