SIEMENS E3L020

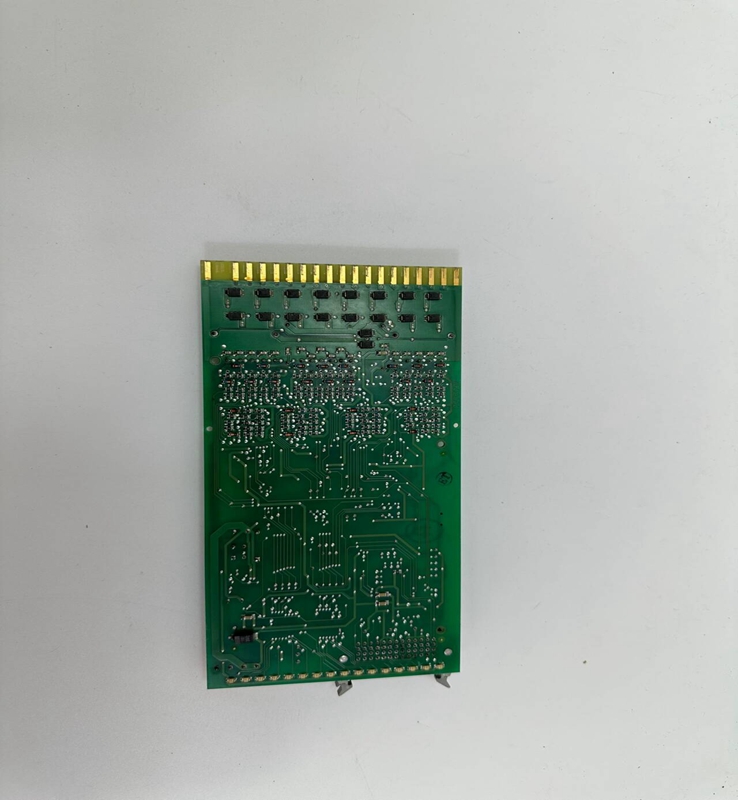

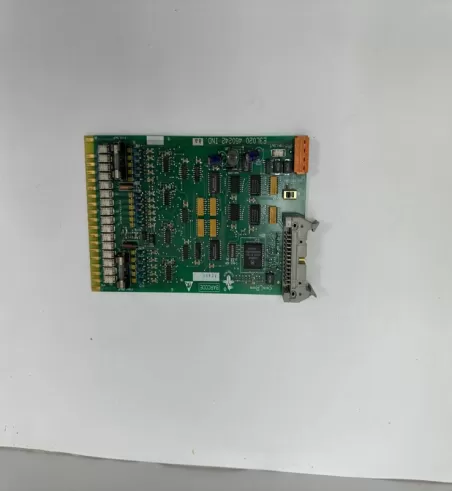

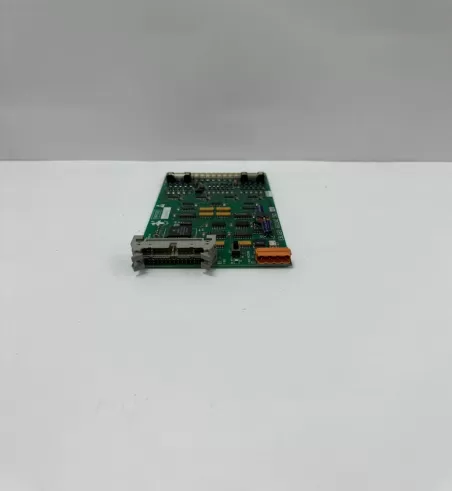

SIEMENS E3L020 Output/input linkage card

BrandSIEMENS                          Model number:E3L020

Country of origin: Germany          Product weight0.73kg

HS code:8517623990

Product Details:

Product Dimensions:

z Activation of fire control installations (shutting-down ventilation, closing fire

dampers etc.)

z Activation and monitoring of alarm device

z Activation and monitoring of remote transmission equipment

z Activation of Mimic Display panels

1 Can also be used as control inputs (e.g. 'acknowledgement')

2 These inputs/outputs also serve for the activation of the remote transmission

equipment

3 For activation of Mimic Display panel, connected to the operating terminal

B3Q700 or K3I050 (no I-Bus module) -> Details see chapter 17.7

4 Applicable only with K3R072 -> Details see chapter 17.9

5 Programmable

6 LON-Bus module -> Details see chapter 18.5

z Any statuses of entry nodes can be linked to control ZONES

z Normally, only 1 control ELEMENT is contained in 1 control ZONE (= control

output)

z A user text is allocated to each control ZONE

– Short circuit-protected outputs

– Output for local buzzer and LED operation

– Inputs for button 'buzzer switch-off' und 'lamp test'

– Only suitable for the activation of LEDs

– Outputs can only be allocated the statuses from one logical node

– Max. 24 devices however max. 8 addresses
