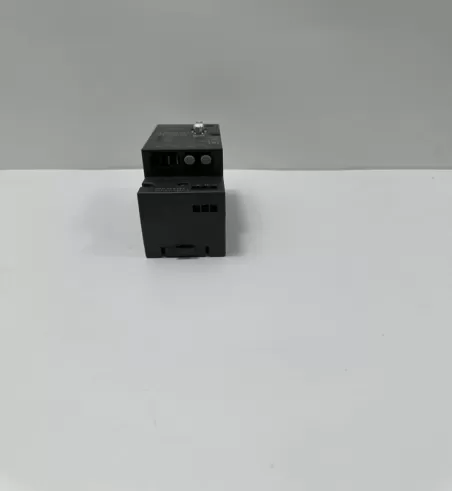

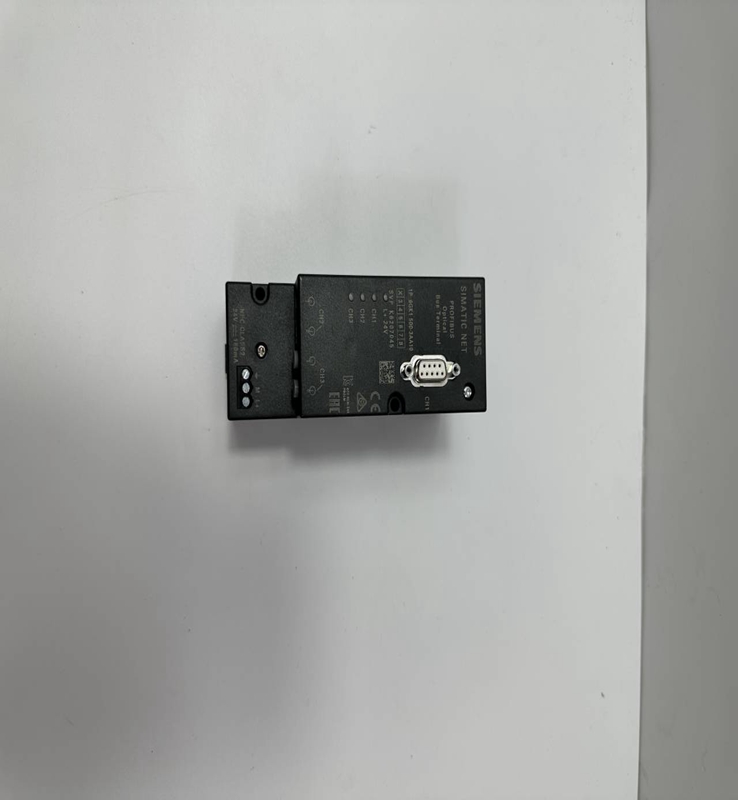

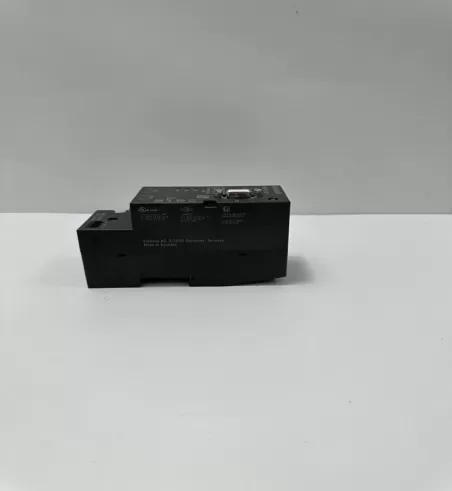

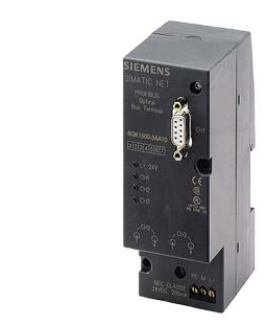

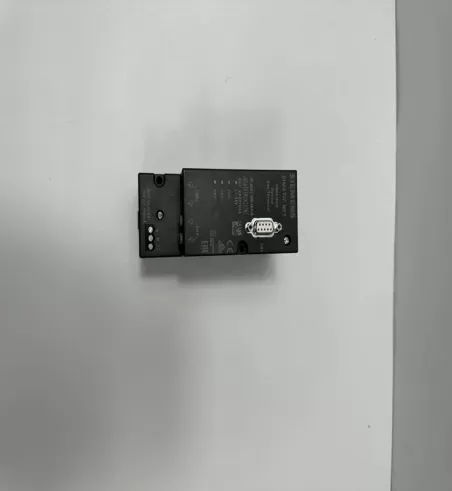

6GK1500-3AA10 SIEMENS

Product Dimensions：

PROFIBUS OBT OPT. BUS TERMINAL FOR CONNECT. A

PROFIBUS CLIENT WITHOUT INTEGRATED OPT.

INTERFACE TO OPTICAL PROFIBUS DP,

WITHOUT SIMPLEX CONNECTOR

Transfer rate

• with PROFIBUS 9.6 kbit/s … 12 Mbit/s

• With PROFIBUS PA 45.45 kbit/s

Interfaces

Number of electrical/optical connections / for network components or

terminal equipment / maximum 3

Number of electrical connections

• for network components and terminal equipment 1

• for power supply 1

Design of the electrical connection

• for network components and terminal equipment 9-pin Sub-D socket

• for power supply 3-pole terminal block

Number of optical interfaces / for optical waveguide 2

Design of the optical interface / for optical waveguide Duplex port

Optical data

Damping ratio / of FOC transmission link

• for PCF FOC with 200/230 µm / at 10 dB/km 3 dB

• for POF FOC with 980/1000 µm / at 230 dB/km 13 dB

Signal delay time in bit time 6.5 bit

Injectable optical power relating to 1 mW / of FOC transmission link

• for PCF FOC with 200/230 µm / at 10 dB/km -16 dB

• for POF FOC with 980/1000 µm / at 230 dB/km -5.9 dB

Optical sensitivity relating to 1 mW / of FOC transmission link

• for PCF FOC with 200/230 µm / at 10 dB/km -22 dB

• for POF FOC with 980/1000 µm / at 230 dB/km -20 dB

Wavelength / of FOC transmission link

• for PCF FOC with 200/230 µm / at 10 dB/km 660 nm

• for POF FOC with 980/1000 µm / at 230 dB/km 660 nm

Cable length

• for PCF FOC with 200/230 µm / at 10 dB/km / maximum 300 m

• for POF FOC with 980/1000 µm / at 230 dB/km / maximum 50 m
