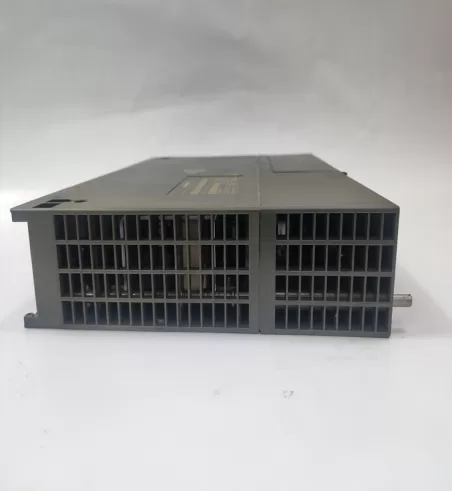

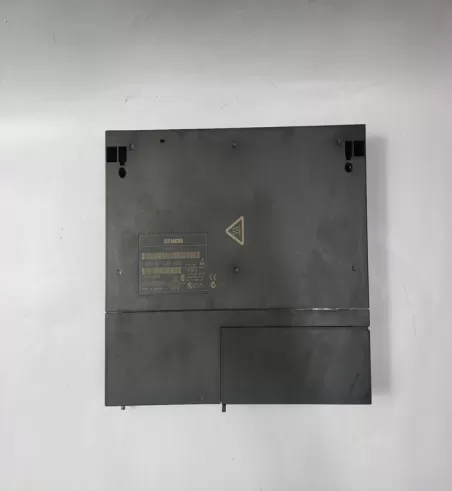

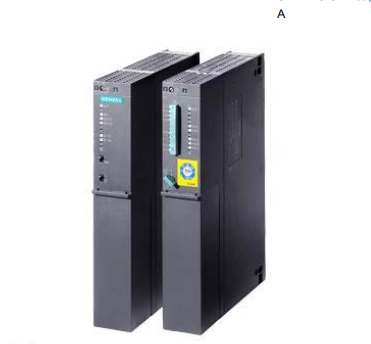

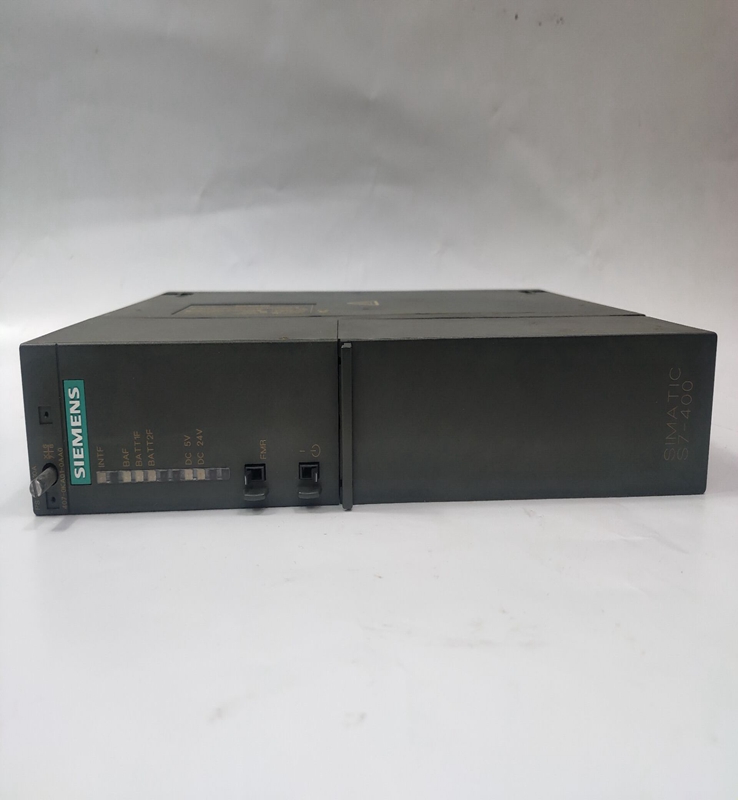

6ES7407-0KA01-0AA0 SIEMENS Power supply

6ES7407-0KA01-0AA0 SIEMENS Power supply

Brand：SIEMENS                          Model number：6ES7407-0KA01-0AA0

Country of origin: Germany          Product weight：1. 39kg

HS code：8517623990

Product Dimensions：

Supply voltage

Rated value (DC)

● 120 V DC Yes; Rated value 110 V DC

● 230 V DC Yes

permissible range, lower limit (DC) 88 V

permissible range, upper limit (DC) 300 V

Rated value (AC)

● 120 V AC Yes

● 230 V AC Yes

permissible range, lower limit (AC) 85 V

permissible range, upper limit (AC) 264 V

Line frequency

● Rated value 50 Hz Yes

● Rated value 60 Hz Yes

● permissible range, lower limit 47 Hz

● permissible range, upper limit 63 Hz

● Mains/voltage failure stored energy time 20 ms

● Mains buffering according to NAMUR

recommendation

Yes

Input current

Rated value at 110 V DC 1.2 A

Rated value at 230 V DC 0.6 A

Rated value at 120 V AC 1.2 A

Rated value at 230 V AC 0.6 A

Inrush current, max. 18 A; 15 x rated value input current

Output voltage

Rated value (DC)

● 5 V DC Yes

● 24 V DC Yes

Output current

for backplane bus (5 V DC), max. 10 A; 200 mA base load required

for backplane bus (24 V DC), max. 1 A; idling-proof

Short-circuit protection Yes

Power

Active power input, typ. 105 W

Power loss

Power loss, typ. 29.7 W

Battery

Backup battery

● Backup battery (optional) Yes; 2x lithium AA; 3.6 V / 1.9 Ah

Hardware configuration

Slots

● required slots 2

Potential separation

primary/secondary Yes

EMC

Compliance with line harmonic distortion limits

● Compliance with line harmonic distortion acc. to

IEC 61000-3-2, IEC 61000-3-3
