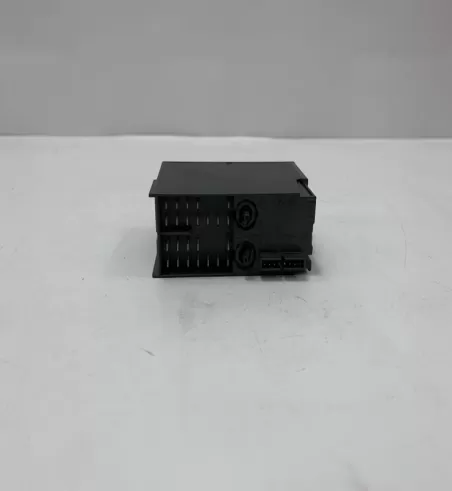

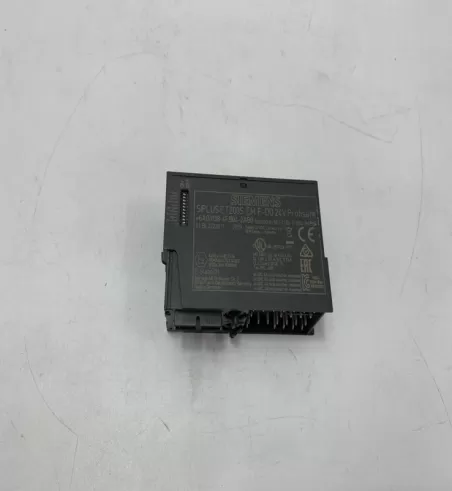

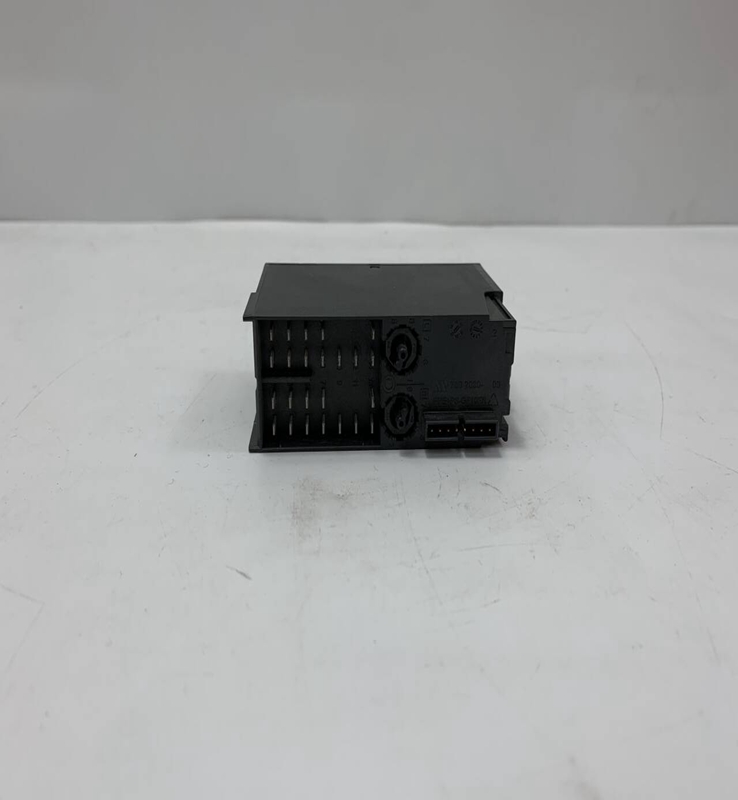

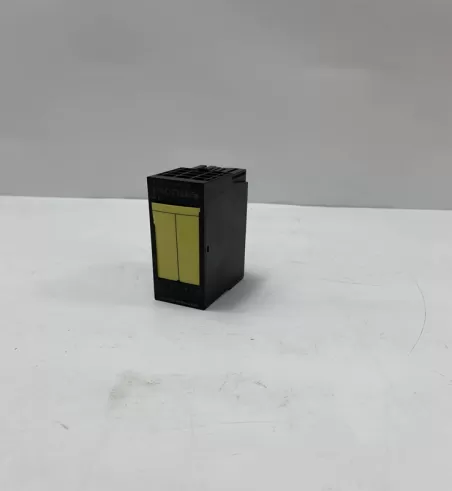

6AG1138-4FA04-2AB0 SIEMENS

Product Dimensions：

Potential separation digital inputs

● between the channels No

● between the channels and backplane bus Yes

● Between the channels and load voltage L+ No

Permissible potential difference

between M internally and the inputs 75 V DC/60 V AC

Isolation

Isolation tested with 500 V DC

Standards, approvals, certificates

CE mark Yes

Highest safety class achievable in safety mode

● acc. to EN 954 Cat. 3 (single-channel), Cat. 4 (two-channel)

● Performance level according to ISO 13849-1 e

● SIL acc. to IEC 61508 SIL 2 (single-channel), SIL 3 (two-channel)

Ambient conditions

Ambient temperature during operation

● min. -25 °C; = Tmin

● max. 60 °C; = Tmax

Extended ambient conditions

● relative to ambient temperature-atmospheric

pressure-installation altitude

Tmin ... Tmax at 1080 hPa ... 795 hPa (-1000 m ... +2000 m)

Relative humidity

— With condensation, tested in accordance

with IEC 60068-2-38, max.

100 %; RH incl. condensation/frost (no commissioning under

condensation conditions)

Resistance

— against biologically active substances /

conformity with EN 60721-3-3

Yes; Class 3B2 mold, fungus and dry rot spores (with the

exception of fauna); Class 3B3 on request

— against chemically active substances /

conformity with EN 60721-3-3

Yes; Class 3C4 (RH < 75%) incl. salt spray according to EN

60068-2-52 (degree of severity 3). The supplied connector covers

must remain on the unused interfaces during operation!

— against mechanically active substances /

conformity with EN 60721-3-3

Yes; Class 3S4 incl. sand, dust. The supplied connector covers

must remain on the unused interfaces during operation!
