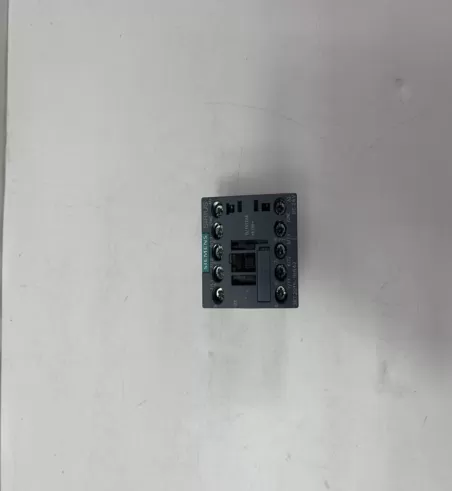

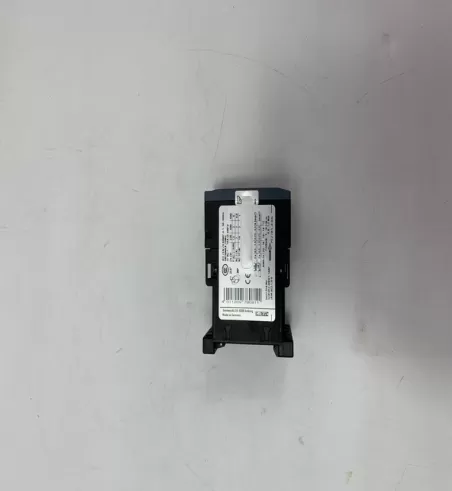

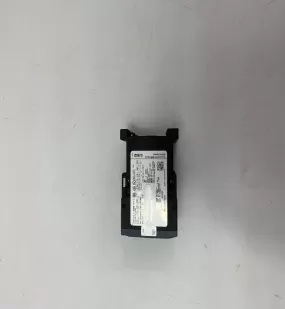

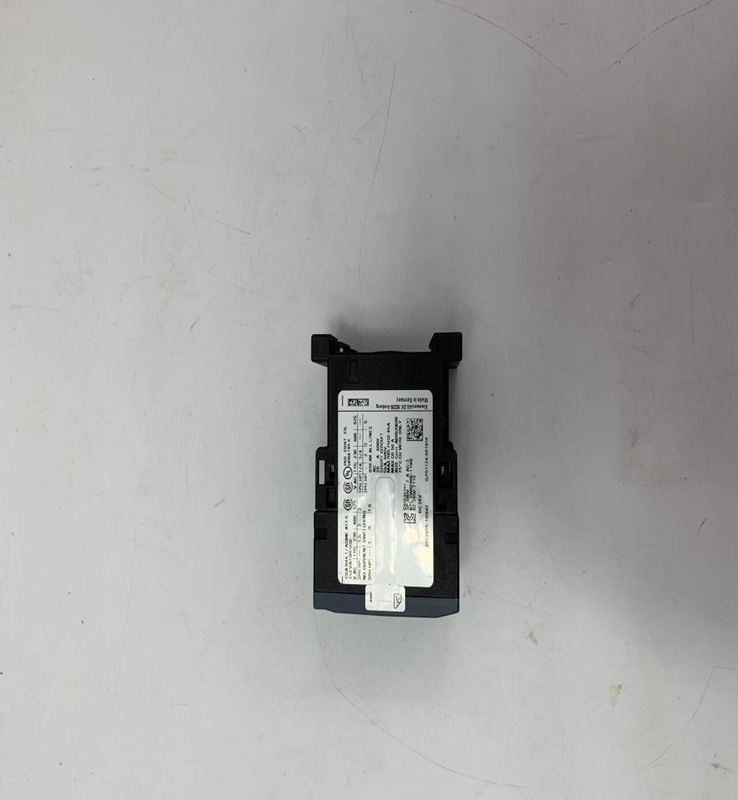

3RT2015-1BB42 SIEMENS

Product Dimensions：

Short-circuit protection

Design of the fuse link

● for short-circuit protection of the main circuit

— with type of coordination 1 required gG NH 3NA, DIAZED 5SB, NEOZED 5SE: 100 A

— with type of assignment 2 required gG NH 3NA, DIAZED 5SB, NEOZED 5SE: 35 A

● for short-circuit protection of the auxiliary switch

required

fuse gG: 10 A

Installation/ mounting/ dimensions

Mounting position +/-180° rotation possible on vertical mounting surface; can be

tilted forward and backward by +/- 22.5° on vertical mounting

surface

Mounting type screw and snap-on mounting onto 35 mm standard mounting rail

according to DIN EN 60715

● Side-by-side mounting Yes

Height 85 mm

Width 45 mm

Depth 107 mm

Required spacing

● for grounded parts

— at the side 6 mm

● for live parts

— at the side 6 mm

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

SIEMENS6SE6440-2UD13-7AA1

SIEMENS6SL3224-0BE37-5AA0

SIEMENS6DD1684-0BC0

SIEMENS6DD1684-0AH0

SIEMENS6AV6542-0CA10-0AX0

SIEMENS3RT1044-1AG20

SIEMENS6AV6647-0AH11-3AX0

SIEMENS3RT2017-1AF01

SIEMENS6ES7321-1CH20-0AA0

SIEMENS6ES7331-7HF01-0AB0

SIEMENS6ES7195-7HA00-0XA0

SIEMENS6SE70386GL841JA1

SIEMENSGB14048.5

SIEMENS6ES7131-4BD01-0AA0

SIEMENS3TB4817-OA

SIEMENS3TB46 17-OA

SIEMENS3UA5840-2F

SIEMENS6ES74145HM060AB0

SIEMENS5SX21C0.5

SIEMENS6AV6648-0CC11-3AX0

SIEMENS6FX5002-2DC10-1FA0

SIEMENS6EP1333-3BA00

SIEMENS6BK1620-0AA00-0AA0

Colour：new                                Warranty: 12 months

Lead Time：3-day working day    Price: Please contact us

Shipping Port: Xiamen, China       Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
