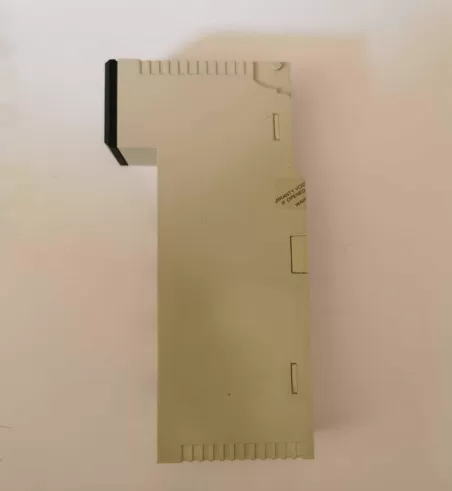

SCHNEIDER 26588

Product Dimensions：

Range of product Modicon Quantum automation platform

Product or component type Input/output analog module

Type of filter Single pole low pass - 3 dB at 21 Hz +/- 20 % input circuit

I/O modularity 6 channels

Addressing requirement 5 input words

2 output words

Analogue input number 4

Analogue input type Bipolar current +/- 20 mA 15 bits DC

Bipolar voltage +/- 10 V 16 bits DC

Bipolar voltage +/- 5 V 15 bits DC

Unipolar current 0...20 mA 15 bits DC

Unipolar offset current 4...20 mA 14 bits DC

Unipolar offset voltage 1...5 V 14 bits DC

Unipolar voltage 0...10 V 16 bits DC

Unipolar voltage 0...5 V 15 bits DC

Absolute maximum input +/- 25 mA current

+/- 50 V voltage

Input impedance > 10 MOhm voltage

> 250 Ohm current

Offset +/- 0.0014 % of full scale maximum/°C 0...60 °C input circuit

Gain shift +/- 0.002 of full scale maximum 0...60 °C input circuit

Common mode rejection > 80 dB 50/60 Hz input circuit

Analogue output number 2

Analogue output range 4...20 mA

Analogue output resolution 12 bits

Loop voltage 0...60 V DC with external resistance output circuit

7...30 V DC output circuit

Voltage drop 30 V DC 20 mA

Setting time 900 µs to +/- 0.1 % of the final value output circuit
