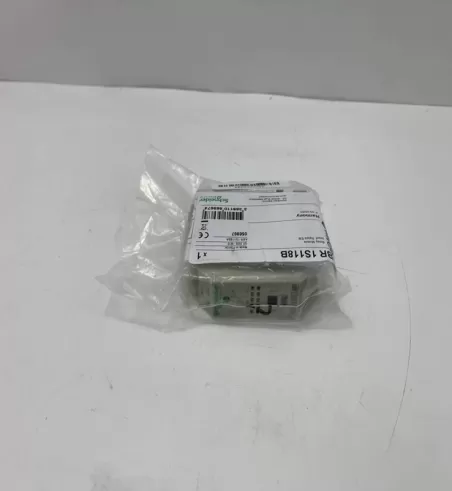

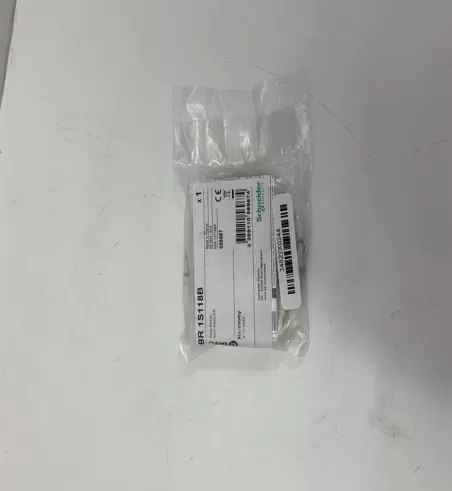

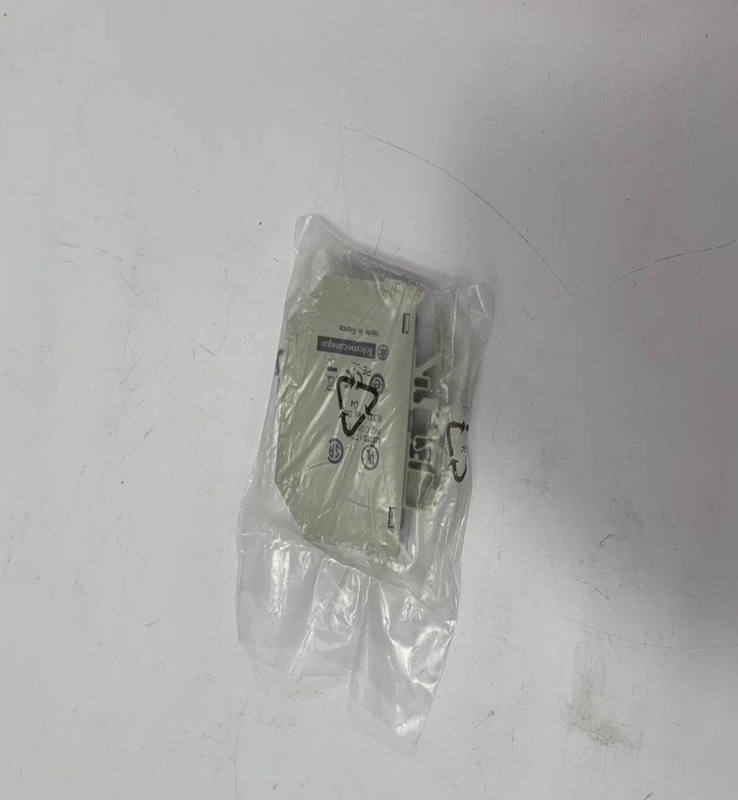

ABR1S118B SCHNEIDER

ABR1S118B SCHNEIDER ELECTRIC RELAY

Brand:SCHNEIDER           Model number:ABR1S118B

Country of origin: France             Product weight:0.09kg

HS code:853710119

Product Details:

Product Dimensions

Processor running (RUN) 1 LED green)

Processor or system fault (ERR) 1 LED red)

I/O module fault (I/O) 1 LED red)

Download in progress (DL) 1 LED green)

Memory card or CPU flash fault (BACKUP) 1 LED red)

ETH MS (Ethernet port configuration status) 1 LED green/red)

Eth NS (Ethernet network status) 1 LED green/red)

Peer processor running (REMOTE RUN) 1 LED green)

Processor ID set to A (A) 1 LED green)

Processor ID set to B (B) 1 LED green)

Processor acting as Primary (PRIM) 1 LED green)

Processor acting as Standby (STBY) 1 LED green)

I/O values overrided by user (FORCED IO) 1 LED green)

Hot standby link status (Hsby Diag) 1 LED green)

a: additional space below the rack to accommodate the height of the CPU. For an X Bus rack, the value is 30.9 mm (1.217 in.); for an

Ethernet rack, the value is 29.49 mm (1.161 in.).

b: the height of the rack. For an X Bus rack, the height is 103.7 mm (4.083 in.); for an Ethernet rack, the height is 105.11 mm (4.138 in.).

c: the height of the main local rack, 134.6 mm (5.299 in.)

a: enclosure depth: 135 mm (5.315 in.)

b: wiring + module depth: > 146 mm (5.748 in.)

c: wiring + module + DIN rail depth: > 156 mm (6.142 in.)

d: rack height: for an X Bus rack 103.7 mm (4.083 in.); for an Ethernet rack, 105.11 mm (4.138 in.)

e: module height: 134.6 mm (5.299 in.)
