750Xbxh-24D SCHNEIDER

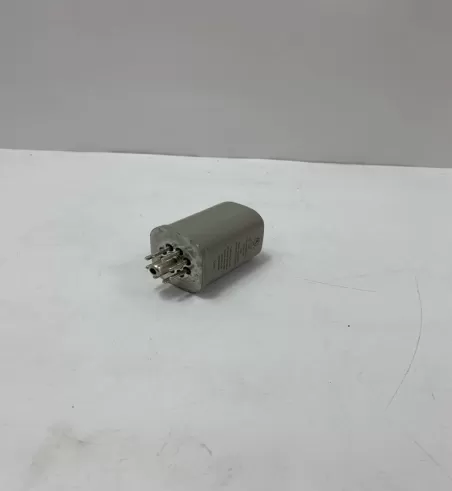

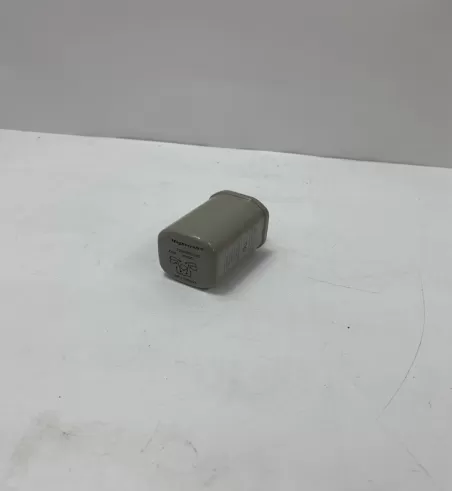

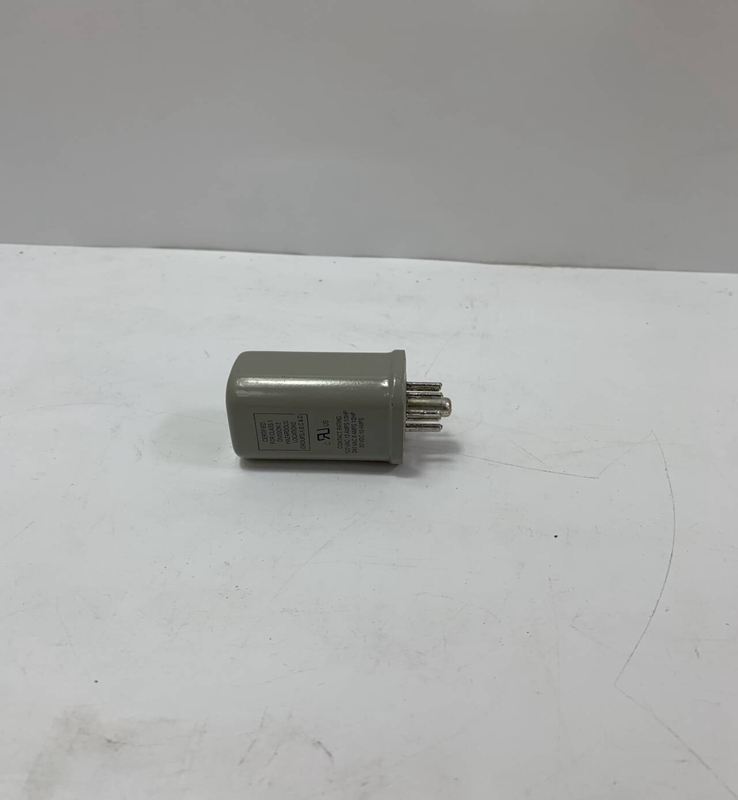

750Xbxh-24D SCHNEIDER Sealed Relay

Brand:SCHNEIDER           Model number750Xbxh-24D

Country of origin: France             Product weight:0.55kg

HS code:853710119

Product Details:

Product Dimensions

Power relay, SE Relays, 12A, DPDT, 24 VDC,

hermetically sealed contacts, hazardous

location series

Product Type Relay

Switch Function DPDT

Contact Composition 2 NC + 2 NO

Input Current 12 A

Contacts Material Silver alloy contacts

Minimum Switching Current 100 mA 5 V

Coil Resistance 470 Ohm

Input voltage 24 V DC

Drop-out Voltage Threshold >= 0.15 Uc AC

>= 0.1 Uc DC

Rated Operational Current 12 A at 120 V AC conforming to UL

12 A at 240 V AC conforming to UL

12 A at 28 V DC conforming to UL

Power consumption in W 1.2 W DC

Voltage Range 0.8...1.1 Un AC/DC

Maximum Switching Voltage 300 V

Motor Power HP 0.5 Hp 240 V AC 50/60 Hz

0.33 hp 120 V AC 50/60 Hz

Connections Terminals Octal terminal 8 pins)

Mounting Socket

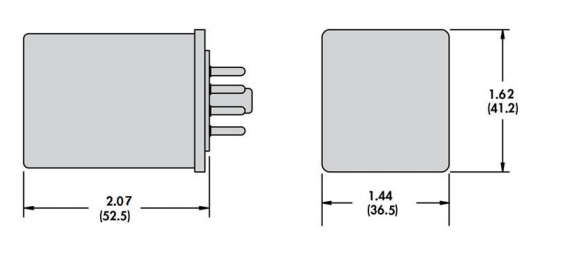

Height 2.07 in (52.5 mm)

Width 1.44 in (36.5 mm)

Depth 1.62 in (41.2 mm)

Product Weight 4.59 oz (130 g)

Operating Time 20 ms
