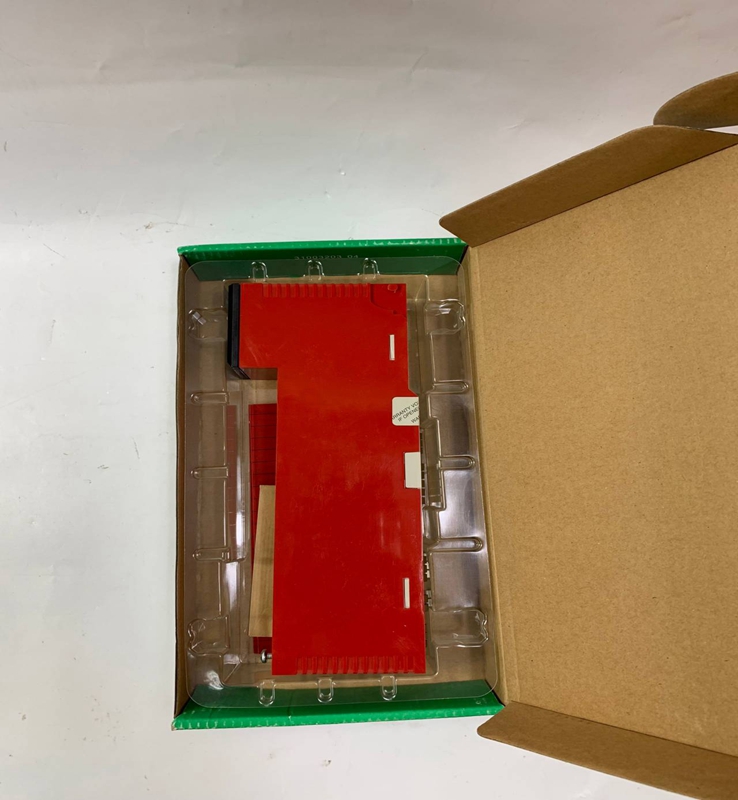

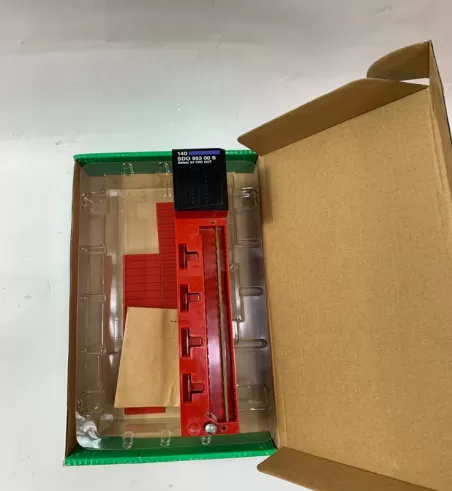

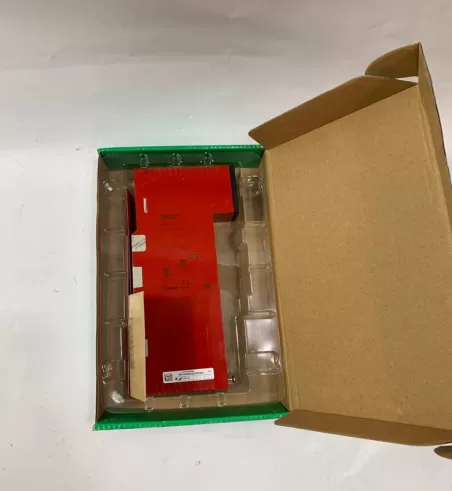

140SDO95300S SCHNEIDER

Product Dimensions：

Range of product Modicon Quantum automation platform

Product or component type Safety dc discrete output module

Complementary

Discrete output number 16

Group of channels 1

Discrete output logic Positive logic (source)

Addressing requirement 4 output words

7 input words

Discrete output voltage 19.2...30 V DC

Absolute maximum output 34 V

Maximum voltage drop <0.3 V 0.5 A

Sensor power supply 19.2…30 V

Maximum load current <= 0.65 A each point

<= 10.04 A each group

Surge current 2 A for 10 ms

Response time <= 20 ms at state 0 to state 1

<= 20 ms at state 1 to state 0

Maximum leakage current 0.5 mA 30 V

Protection type With

Load inductance Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz)))

0.5 8 Hz

Fault indication Channel fault

Overload

Power supply fault

System fault

Associated fuse rating 10 A

Isolation between channels and

bus

1500 Vrms for 1 minute

Isolation between group and

bus

1500 Vrms for 1 minute

Power dissipation 1.9 W + 0.65 I²

Marking CE
