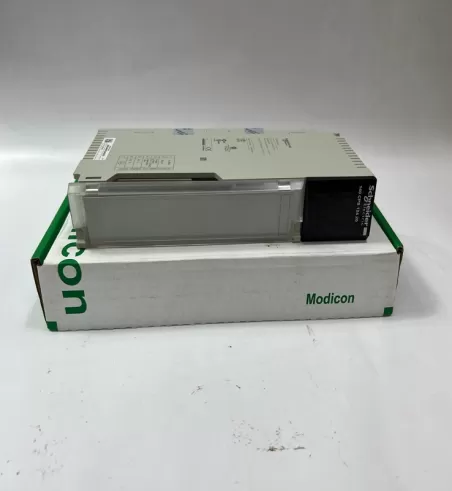

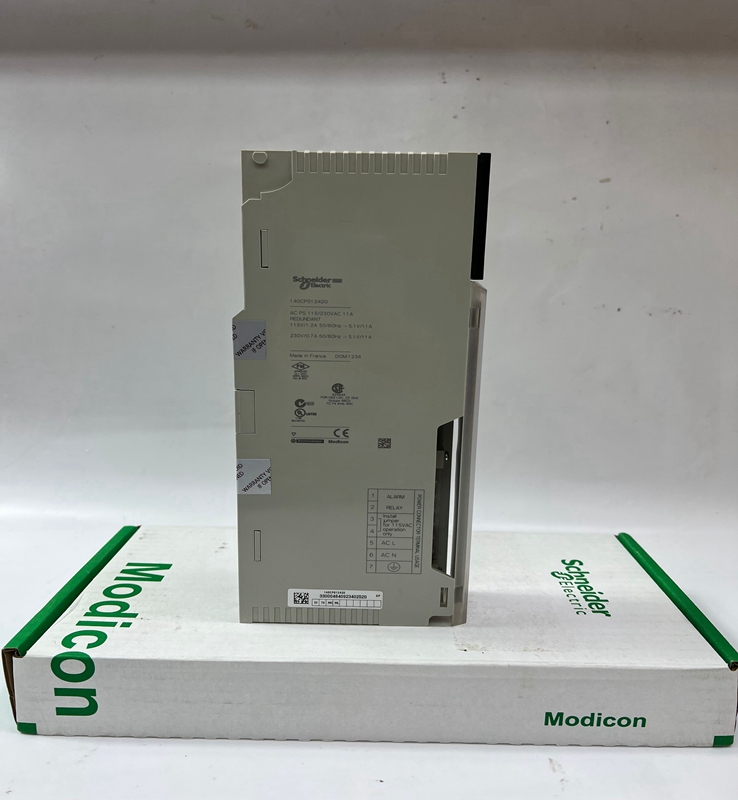

140CPS12420 SCHNEIDER power supply module Modicon Quantum 115V/230V AC-redundant

140CPS12420 SCHNEIDER power supply module Modicon Quantum 115V/230V AC-redundant

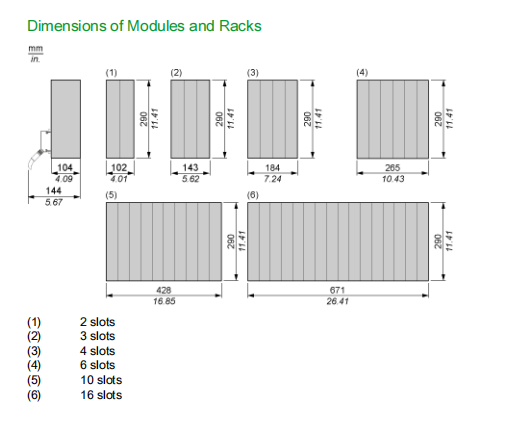

Product Dimensions：

NOTE: A normally closed relay contact rated at 220 Vac, 6 A / 30 Vdc, 5 A is available on terminals 1 and 2 of the power terminal strip. This contact set may be used to signal input power OFF. The relay will de-energize when input power drops below 8 Vdc.

Power supplies BMXCPS4002 power supply module X80 - 100..240 V AC Qty 1 This is not interchangeable but an equivalent functional product in the Modicon M580/X80 range. Please contact technical support about your migration options.

Input voltage 115 V (93...138 V) AC 47…63 Hz 230 V (170...276 V) AC Input current 1100 mA at 115 V 600 mA at 230 V Inrush current 19 A 230 V 38 A 115 V Rated power in VA 130 VA Associated fuse rating 2 A, slow-blow Harmonic distortion <= 10 % of fundamental rms value Output voltage 5.1 V DC Power supply output current 11 A 60 °C standalone 10 A 60 °C redundant Output overvoltage protection Internal Output overload protection Internal Power dissipation 6 + (1.5 x Iout) where Iout is in A Alarm output 1 NC 6 A 220 V power supply fault Local signalling 1 LED (green) for power (PWR OK) Marking CE Module format Standard Net weight 0.65 kg Environment Standards UL 508 CSA C22.2 No 142 Product certifications CUL Resistance to electrostatic discharge 4 kV contact conforming to IEC 801-2 8 kV on air conforming to IEC 801-2 Aug 16, 2021 1 Disclaimer: This docume

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

SCHNEIDER 140CRA21220

SCHNEIDER BMXDAI1604

SCHNEIDER 140XTS00200

SCHNEIDER 140XBP01600

SCHNEIDER LMC058

SCHNEIDER TM2ALM3LT

SCHNEIDER HMIGXO3501

SCHNEIDER CAD326BD

SCHNEIDER NS250L (160 A)

SCHNEIDER 750XBXH-24D

SCHNEIDER ATV28HU18N4

SCHNEIDER XC1-ZA2

SCHNEIDER LC1-D09F7

SCHNEIDER LC1D18E7

SCHNEIDER LC1-D09E7

SCHNEIDER LC1-D12E7

SCHNEIDER LC1-D32E7

SCHNEIDER XTCE025C10TD

SCHNEIDER XS530BSDBL2

SCHNEIDER XS8C4A4PCG13

SCHNEIDER LCID65F7

SCHNEIDER TSXP571634M

SCHNEIDER XSAV11373

SCHNEIDER ATV610U55N4

SCHNEIDER BMXDDO1602

SCHNEIDER BMXDDO3202K

Colour：new                  Warranty: 12 months

Lead Time：3-day working day   Price: Please contact us

Shipping Port: Xiamen, China     Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
