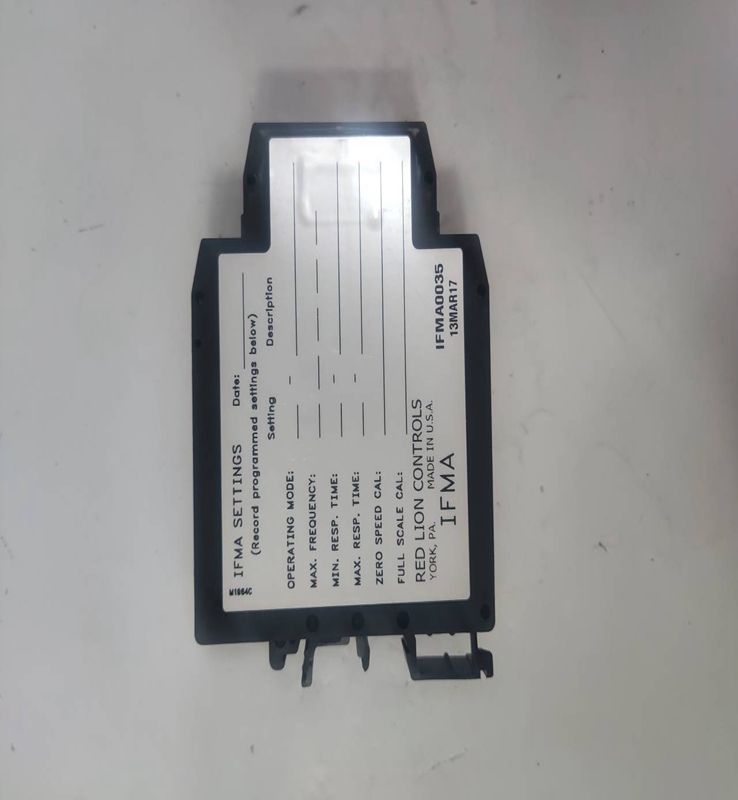

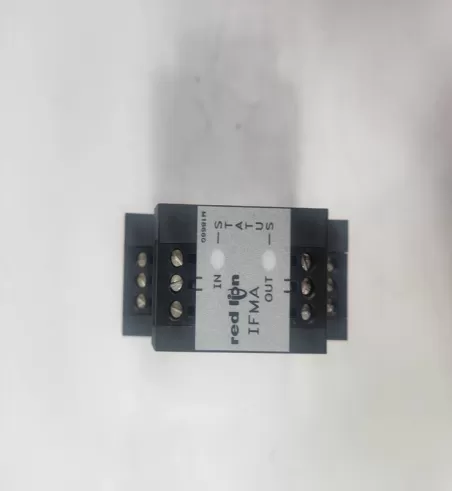

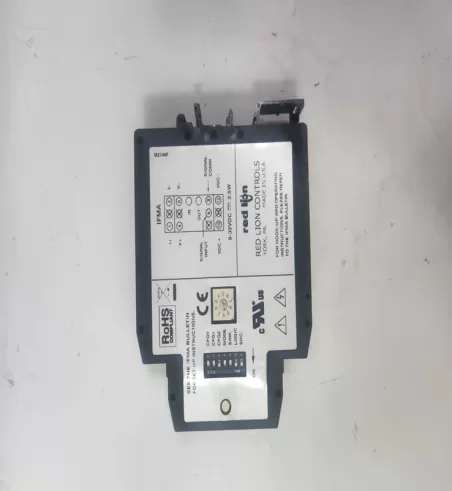

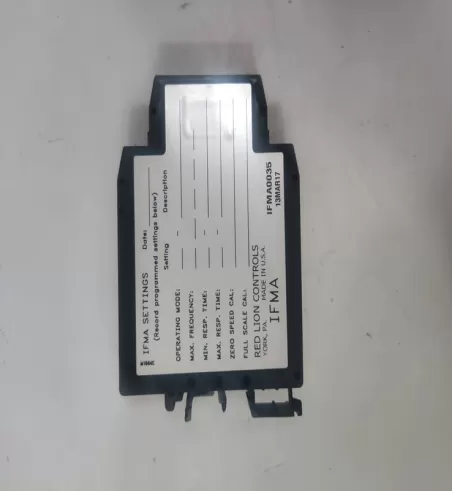

IFMA0035 REDLION Electrical Frequency Analog Converter

Brand：REDLION Model number：IFMA0035

Country of origin:the States Product weight：0.55kg

HS code：8517623990

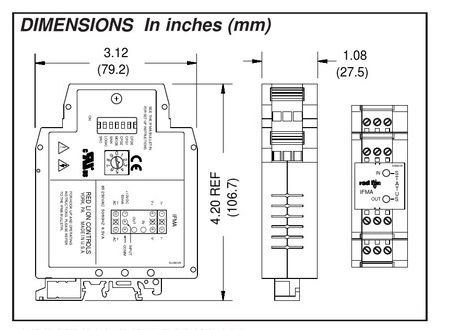

Product Dimensions：

DESCRIPTION

The Model IFMA accepts a frequeney inputand outputs an analog voltage or current in proportion to the input frequency,with.1% accuracy.The full scale input frequency can be set to any value from 1 Hz to 25 KHz either with a frequency source, or digitally with the on-board rotary switch and push-button.

The IFMAutilizes a seven position DIPswitcha rotary switch,a push-button and two indication LEDs to accomplish input circuit configuration, operational parameter set-up, and Input/Output indicationThe input circuitry is DIP switch

selectable for a varety of sources.

The indication LEDs are used during normal operation to display the input and output status of the IFMAThese LEDs are also used to provide visua feedback to the user of the existing parameter settings during parameter set-up.

The IFMA operates in one of four output modes.The programmable minimum and maximum response times provide optimal response at any input frequency The unit is equipped with a universal mounting foot for attachment to standard DIN style mounting rails. including top hat profile railaccording to EN

50022 -35 x7.5 and 35 x 15,and G profile rail according to EN 50035-G32.

SAFETY SUMMARY

All safety related regulations local codes and instructions that appear in the manual or on equipment must be observed to ensure personal safety and to prevent damage to either the instrument or equipment connected to it.If

equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

SPECIFICATIONS

1.POWER:

AC Operation: 85 to 250VAC.48to62 Hz;6.5 VA

DCOperation:9to32VDC-2.5W

Power Up Current:Ip=600 mAfor 50 msec.max.

2.SENSOR POWER:(ACversion only)+12VDC+25% @60 mA max.

3OPERATING FREOUENCYRANGE:

From O Hz to 25 KHz:user selectable.

4. SIGNAL INPUT: DIP switch selectable to accept signals from a variety of sources, including switch contacts outputs from CMOS or TTL circuits, magnetic pickups. and all standard RLC sensors.

Current Sourcing: Internal 1 KΩpull-down resistor for sensors with current sourcing output.(Max. sensor output current=24mA @24 Voutput.)

Current Sinking: Internal 3.9 KO pull-up resistor for sensors with current sinking output.(Max.sensor current=3 mA.)
