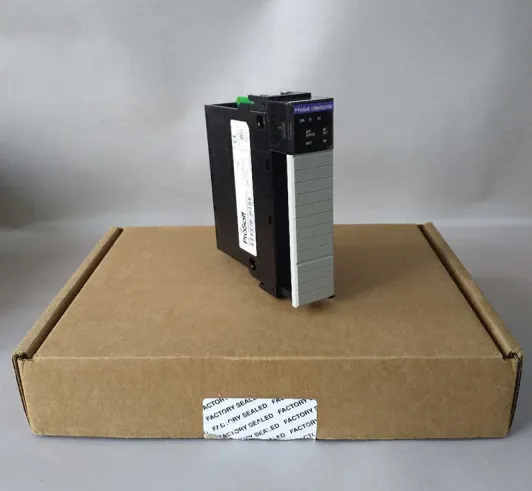

PROSOFT MVI56-MCM Modbus Master/Slave Communication Module

Brand: PROSOFT

Model number: MVI56-MCM

Colour: new

Warranty: 12 months

Lead Time: 3-day working day

Country of origin: U.S.A

Price: Please contact us

Product weight: 0.81kg

Shipping Port: Xiamen, China

Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Product Dimensions:

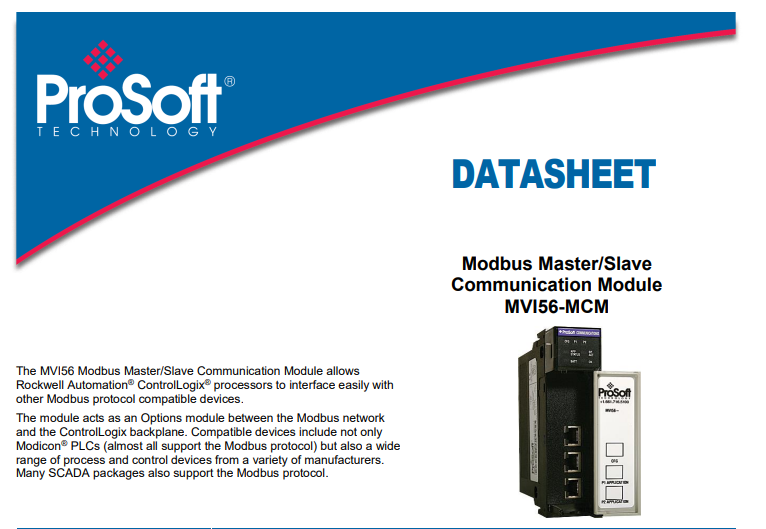

The MVI56 Modbus Master/Slave Communication Module allows Rockwell Automation® ControlLogix® processors to interface easily with other Modbus protocol compatible devices. The module acts as an Options module between the Modbus network and the ControlLogix backplane. Compatible devices include not only Modicon® PLCs (almost all support the Modbus protocol) but also a wide range of process and control devices from a variety of manufacturers. Many SCADA packages also support the Modbus protocol.

Licensed Backplane Technology

◆ Manufactured under license from Rockwell Automation®

◆ High-speed data transfer between MVI56 module and ControlLogix processor

◆ Installs as a Generic 1756 module, sample ladder logic included

◆ View module data and status in RSLogix™ 5000 controller tags

Modbus slave protocol interface

◆ Emulate Modbus slave device on each individually-configurable application port

◆ Supports Modbus RTU and Modbus ASCII protocol versions

◆ Floating-point data movement supported, including support for Enron, Daniel®, and other

◆ implementations  Suitable for SCADA and field device interface applications

General Specifications  Single Slot - 1756 backplane compatible·  Local or remote rack·  The module is recognized as an Input/Output module and has access to processor· memory for data transfer between processor and module  Ladder Logic is used for data transfer between module and processor.·  Configuration data obtained through user-defined ladder. Sample ladder file· included

Functional Specifications Modbus Master A port configured as a virtual Modbus Master actively issues Modbus commands to other nodes on the Modbus network. The Master ports have an optimized polling characteristic that polls slaves with communication problems less frequently.
