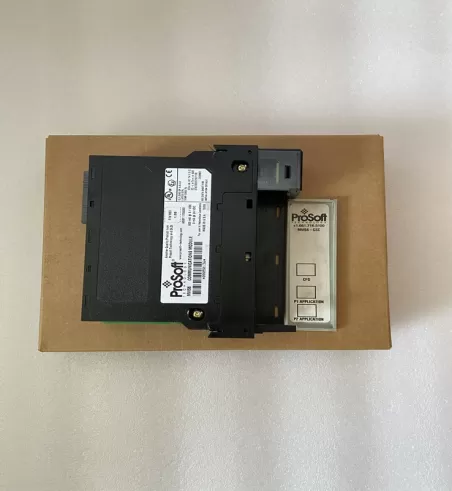

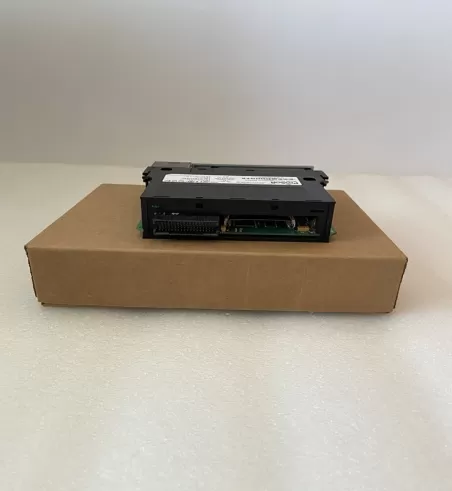

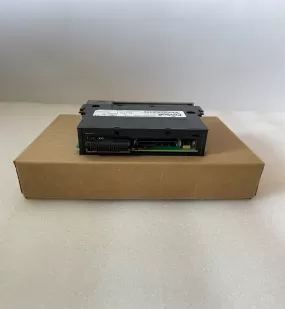

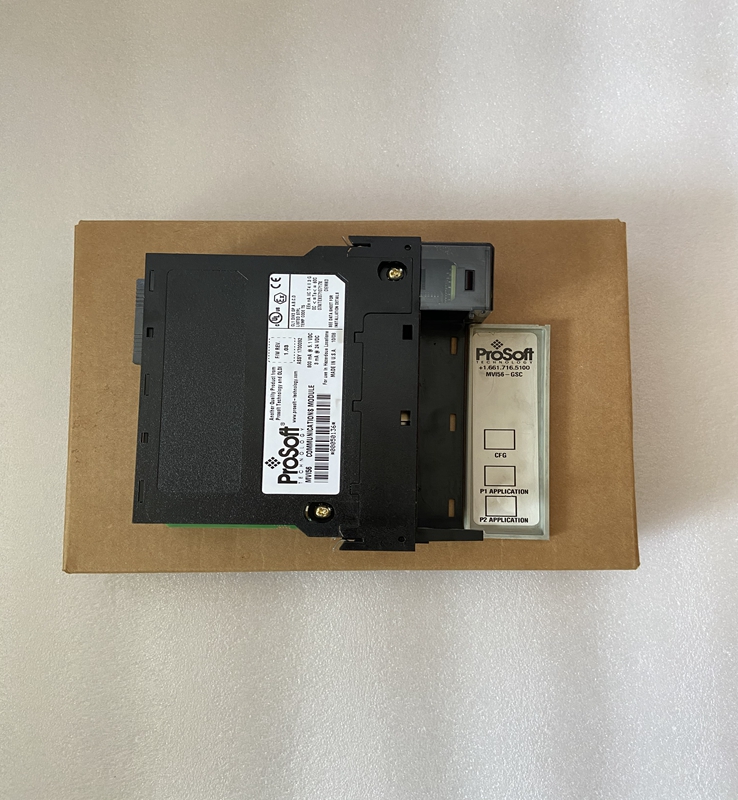

MVI56-MCMR PROSOFT Processor module

Product Details：

MVI56-MCMR PROSOFT Processor module

Brand：PROSOFT Model number：MVI56-MCMR

Country of origin:the States Product weight：0.55kg

HS code：8517623990

Product Dimensions：

The Limitorque Valve Actuator Master Communication Module allows ControlLogix compatible processors to interface easily with Limitorque Valve Actuators and other Limitorque protocol compatible devices.

The MVI56-LTQ module acts as an input/output module between the Limitorque valve network and the ControlLogix processor. The data transfer from the ControlLogix processor is asynchronous from the actions on the network. The 1500-word register space in the module transfers the valve information from the module to the processor. Ladder logic is responsible for control of the valves.

Data transferred from the processor to the module instructs the module to execute commands to valves on the Limitorque network.

.Single Slot - 1756 backplane compatible

.Local or remote rack

.The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module

.Ladder Logic is used for data transfer between module and processor.

.Configuration data obtained through user-defined ladder. Sample ladder file included

.Support for the storage and transfer of up to 150 valves to the ControlLogix processor’s controller tags

.Emulates Limitorque’s Port A/B polling scheme using both ports on the module

.Supports the following valves
