Product Details：

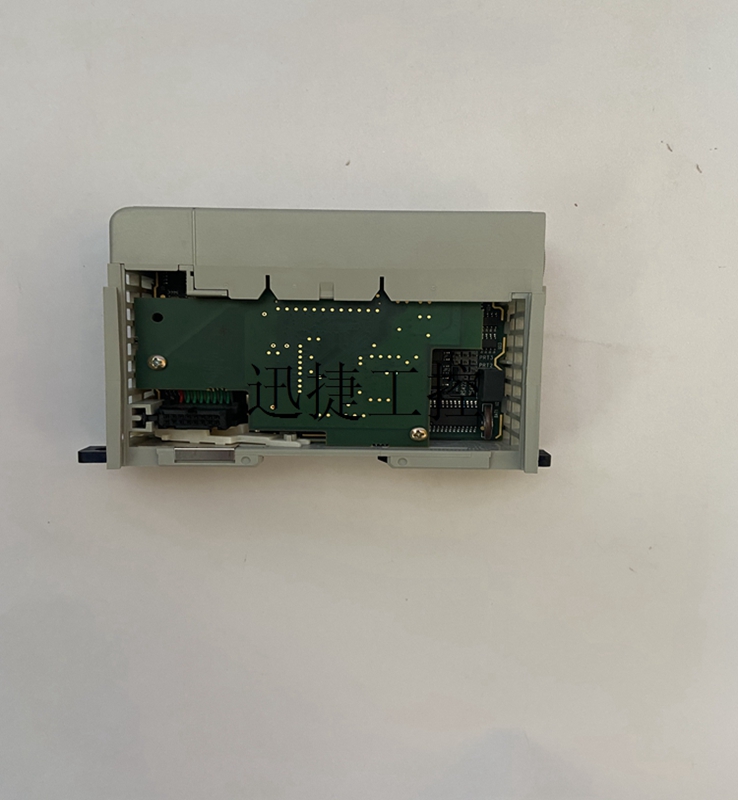

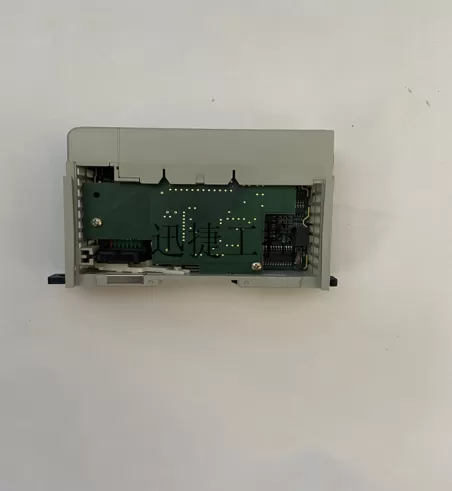

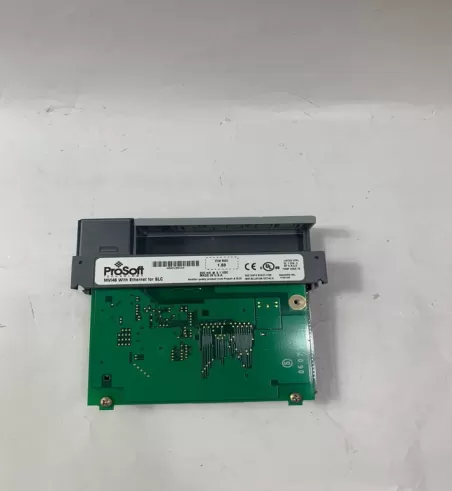

661-716-5100 PROSOFT Central control module

Brand：PROSOFT Model number：661-716-5100

Country of origin:the States Product weight：0.55kg

HS code：8517623990

Product Dimensions：

All modules in the MVI series use a rechargeable Lithium Vanadium Pentoxide battery to backup the 512K SRAM

memory, real-time clock, and CMOS. The battery should last for the life of the module.

The module must be powered for approximately twenty hours before it becomes fully charged. After it is fully charged,

the battery provides backup power for the CMOS setup and configuration data, the real-time clock, and the 512K

SRAM memory for approximately 21 days.

Before you remove a module from its power source, ensure that the battery within the module is fully charged. A fully

charged battery will hold the BIOS settings (after being removed from its power source) for a limited number of days.

When the battery is fully discharged, the module will revert to the default BIOS settings.

1 Open your web browser and navigate to http://www.prosofttechnology.com/pcb

2 Click the DOWNLOAD HERE link to download the latest version of ProSoft Configuration Builder.

3 Choose "SAVE" or "SAVE FILE" when prompted.

4 Save the file to your Desktop, so that you can find it easily when you have finished downloading.

5 When the download is complete, locate and open the file, and then follow the instructions on your screen to install the program.

If you do not have access to the Internet, you can install ProSoft Configuration Builder from the ProSoft Solutions CD-ROM, included in the package with your module.
