Phoenix 2703981 ILETHBKDI8DO42TX-PAC

Product Dimensions：

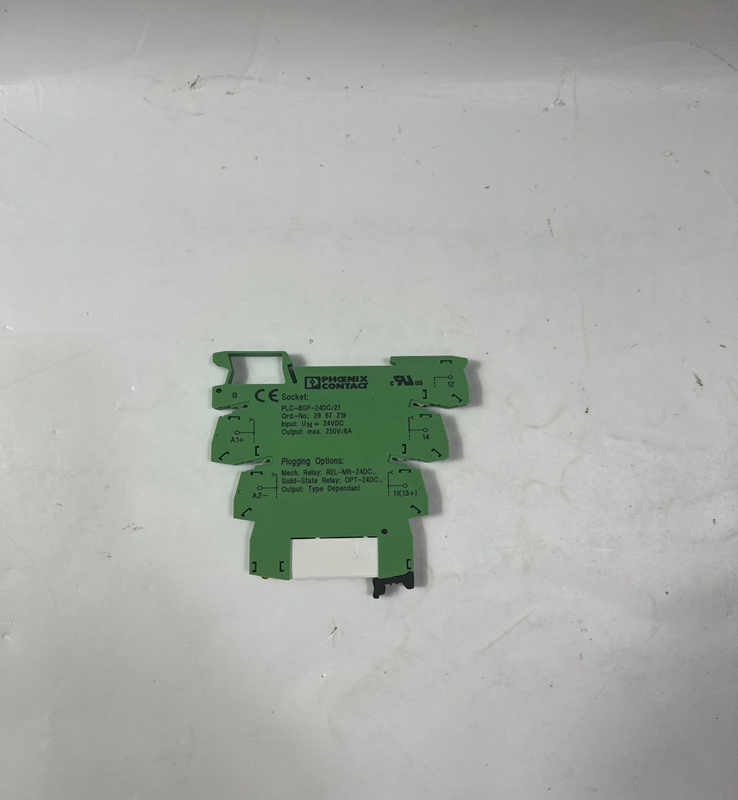

6.2 mm PLC basic terminal blocks with spring-cage connection

method, input voltage 24 V DC(without relay or optocoupler)

Nominal input voltage UN 24 V DC

Status display LED

Protective circuit Damping diode, polarity protection diode

Compatible components Miniature relay, REL-MR-24DC/21AU, RELMR-24DC/21; Miniature optocoupler, OPT-24DC/24DC/2,

OPT-24DC/24DC/100, OPT-24DC/230AC/1

Connection data

Conductor cross section solid min. 0.14 mm²

Conductor cross section solid max. 2.5 mm²

Conductor cross section stranded min. 0.14 mm²

Conductor cross section stranded max. 2.5 mm²

Conductor cross section AWG/kcmil min. 26

Conductor cross section AWG/kcmil max 14

Connection method Spring-cage connection

Stripping length 8 mm

Width 6.2 mm

Height 80 mm

Depth 94 mm

Color green

Ambient temperature (operation) -40 °C ... 60 °C

Ambient temperature (storage/transport) -40 °C ... 85 °C

Operating mode 100% operating factor

Inflammability class acc. to UL 94 V0

Mounting position Any

Assembly instructions In rows with zero spacing
