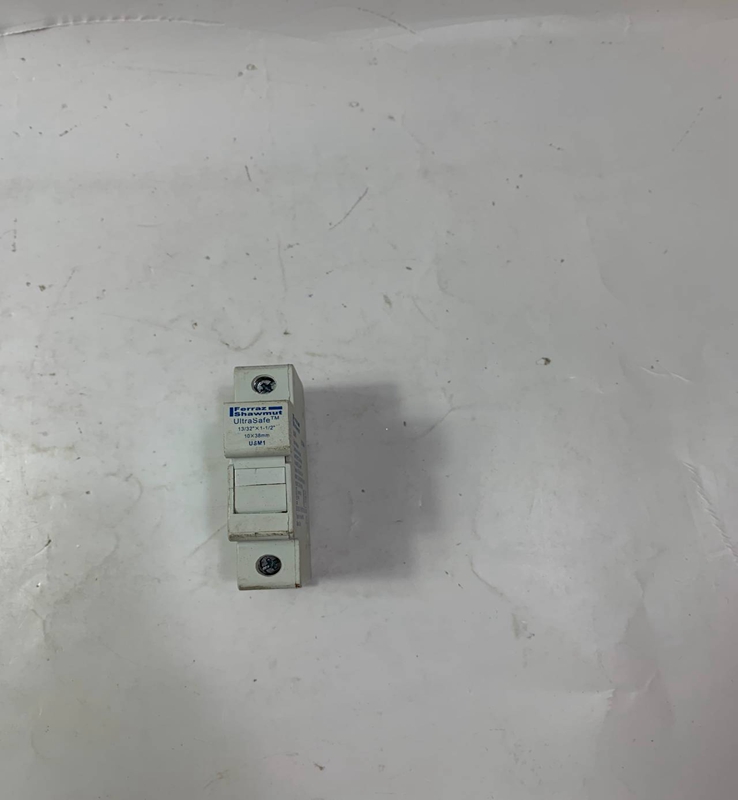

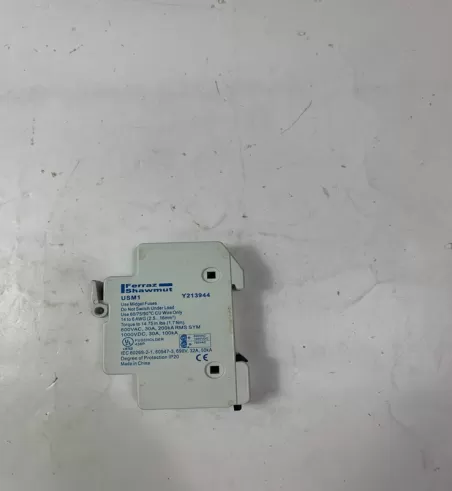

Y213944 FERRAZ SHAWMUT

Product Dimensions：

Mersen UltraSafe Modular Fuse holders introduce a new level of safety

for Class CC (USCC) and Midget 1-1/2" x 13/32" (USM) AC and DCrated fuses up to 30 amperes. UltraSafe holders qualify as “Fingersafe” under IEC and DIN standards to an IP20 grade of protection,

including fuse changing (with the flick of a finger). UltraSafe holders

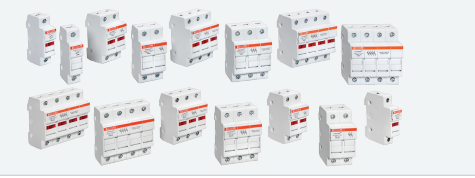

are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse

indicators in each pole. Multi-pole units can also be field assembled by

ordering pin-tie handles.

UltraSafe holders save up to 15% mounting space and any combination

can be snapped onto 35mm DIN-rail for extra savings in panel building

time. UltraSafe holders with Class CC fuses chosen for Type “2” No

Damage protection give one of the safest protection packages in the

industry. UltraSafe body material is tough and durable polyamide, with

exceptional insulating properties.

APPLICATIONS:

• All circuits up to 600 volts for motors, control circuits,

transformers, etc…

• DC circuits up to 1000VDC including photovoltaic applications

• Non-load disconnect

RECOMMENDED FUSE USAGE:

• USM use with: ATQ, ATM*, A6Y-2B, A25Z-2, TRM, OTM, A13X-2,

A60Q-2, DCT*, HP6M, HP10M

• USCC use with: ATDR, ATMR*, ATQR

RATINGS:

USM (Midget 10x38mm Fuses)

• Volts: 800VAC Maximum,

1000VDC Maximum

• Amps: 30A Maximum

• SCCR: 200kA AC, 100kA DC

USCC (Class CC Fuses)

• Volts: 600VAC/DC Maximum

• Amps: 30A Maximum

• SCCR: 200kA

Min. voltage to operate indicator light:

90VAC, 115VDC [Less than 0.7 mA leakage

current at 600V]

USM1IHEL minimum indicator operating

voltage: 350VDC

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！
