SC656A-BV0FP Hyde Park ULTRASONIC SENSOR

Product Details:

SC656A-BV0FP Hyde Park ULTRASONIC SENSOR

Brand:Hyde Park                               Model numberSC656A-BV0FP

Country of origin: Germany                Product weight0.55kg

HS code:8517623990

Product Dimensions:

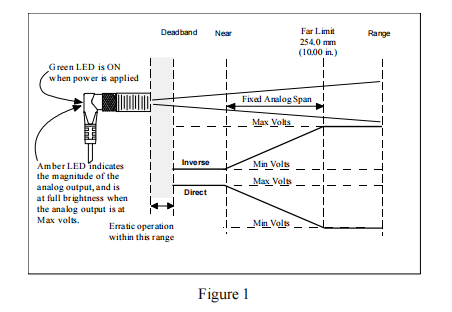

This self-contained, ultrasonic proximity sensor is capable of sensing most objects within

its sensing range (Fig.1). Objects that are transparent, opaque, plastic, glass, metal, liquid

or solid can be detected if located within the sensing window. Sensor is reconfigured

using the AC441A handheld configurator and the SUPERPROX+ configuration software.

Power Supply:

Supply: + 15 to 24 VDC @ 50 mA max

Protection: ESD and reverse-polarity

Analog Output:

Output Voltage: 0 Volt (minimum) to 10 Volts (maximum)

Output Resolution: 9.77 mV (millivolts)

Output Load: 1000 ohms (minimum)

Protection: Short-circuit to common and ESD

Operating Temperature:

@ 15 VDC supply 0 to 60C (32F to 140F) @ 100% relative humidity

@ 24 VDC supply 0 to 50C (32F to 122F) @ 100% relative humidity

Sensing:

Maximum far limit: 254.0 mm (10.00 in.)

Resolution, object position, worst case:  0.69 mm (0.027 in.)

Repeatability:  0.69 mm (0.027 in.)

Minimum object area, flat smooth: 40 mm2

(0.027 in.) @ 152 mm (6.0 in.) distance

Minimum object diameter: 1.6 mm (0.06 in.) @ 152 mm (6.0 in.) distance

Maximum plane-reflector angle:  10

Sonic Cone Angle: 7

Sensor Dimensions:

Threads: 18 mm x 1 mm

Length: 64.7 mm (2.55 in.)

Sensor Cable: Model No. AC119 - 5 meters (16 ft.) rt. Angle

Model No. AC129 - 5 meters (16 ft) straight

 (Must be purchased separately)

Sensor Materials:

Housing: PEI

Transducer face: FDA approved silicone rubber

Cable: Non-toxic PVC jacket

LED: Polycarbonate
