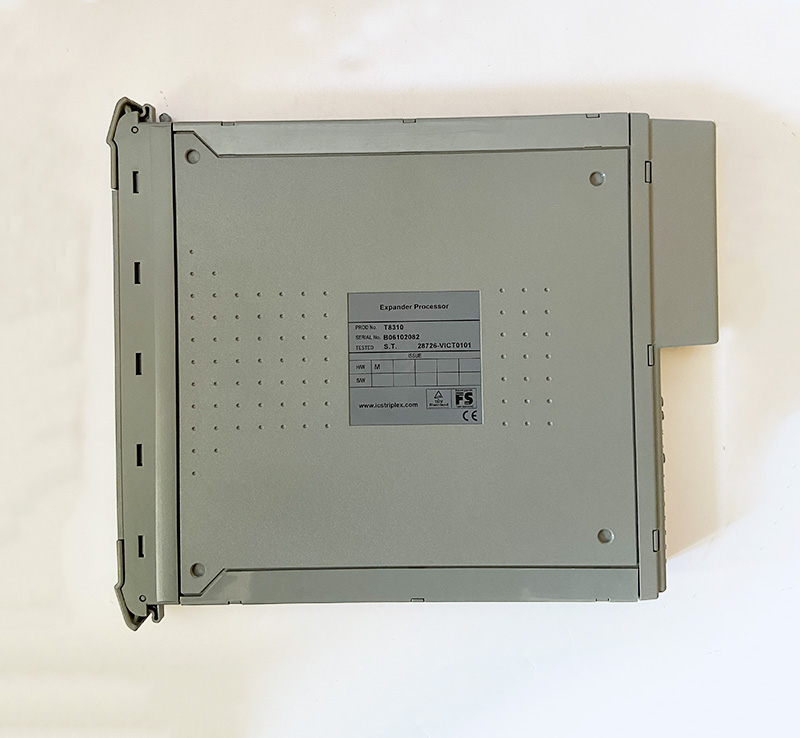

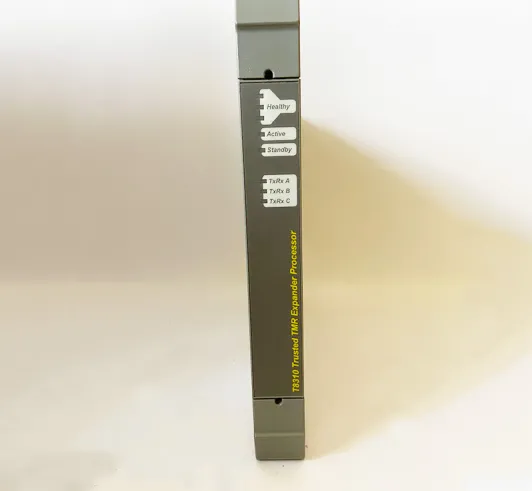

ICS Triplex T8310 Supply Module

Brand: Rockwell Automation

Model number: T8310

Colour: new

Warranty: 12 months

Lead Time: 3-day working day

Country of origin: U.S.A

Price: Please contact us

Product weight: 1.175kg

Shipping Port: Xiamen, China

Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Product Dimensions:

4.1. Standby Standby is the default mode of operation for the Module, once internal supply levels are established. In this mode the module may receive messages addressed to the Module itself over the IMB or Expander Bus. Response messages over the Expander Bus will only be transmitted following a transition to the Active Mode. The Module does not provide the capability of passing messages to and from other modules within the Expander Chassis in this mode.

4.2. Active In the Active Mode, the Module is responsible for the forwarding of messages from the Expander Bus to the Expander Chassis IMB, and response messages from the Expander Chassis IMB to the Expander Bus. The Module also provides all of the functions available within the Standby Mode of operation.

4.3. Expander Processor Module Active/Standby Control TMR Expander Processor Module transition between Active and Standby (and vice-versa) is controlled locally by negotiation between two TMR Expander Processor Modules. Interlocks are incorporated within the TMR Expander Processor Module to ensure that both modules within an Active/Standby configuration cannot assume Active Mode operation. Where both Modules are healthy, the Active mode of operation defaults to the left-most Module.

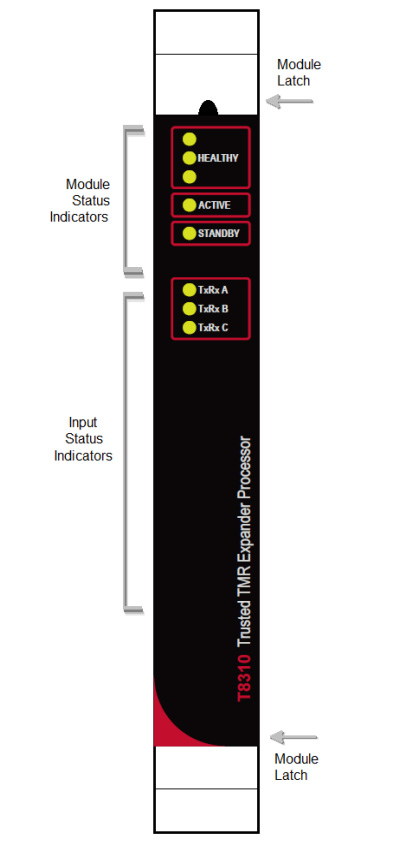

Input Module faults are reported to the user through visual indicators (LEDs) on the front panel of the Module. Faults are also reported via status variables which may be automatically monitored in the application programs, and external system communications interfaces. There are generally two types of faults that must be remedied by the user; external wiring and module faults. External wiring faults require corrective action in the field to repair the fault condition. Module faults require replacement of the Module.
