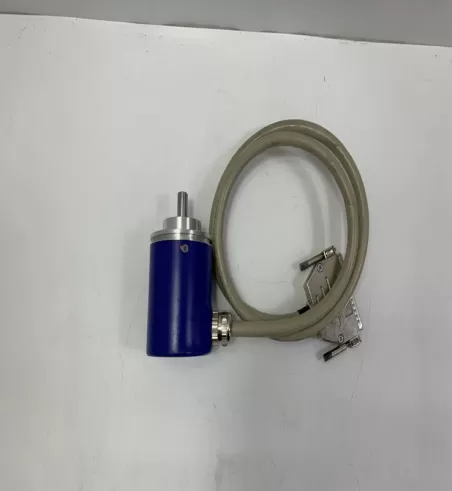

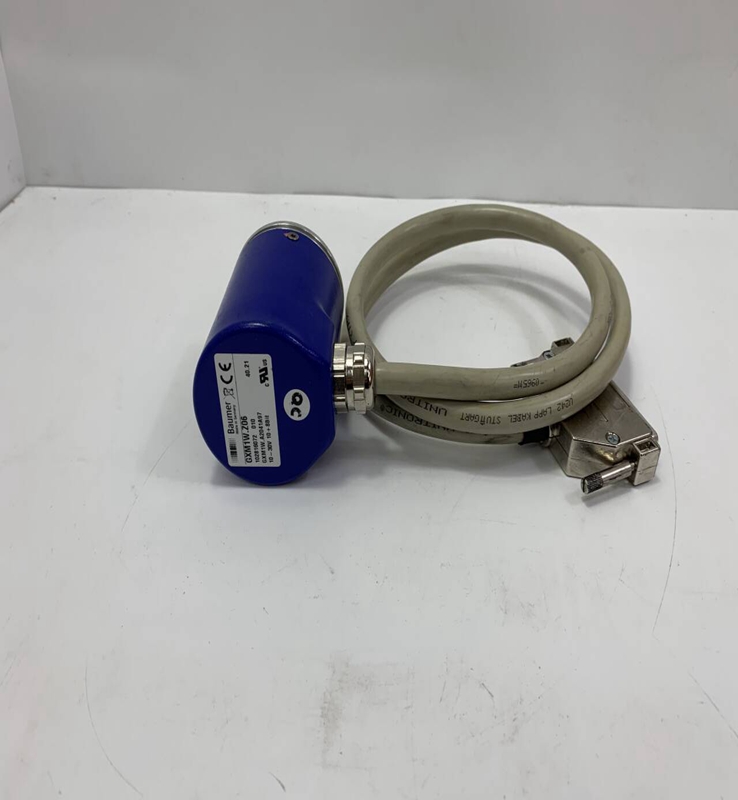

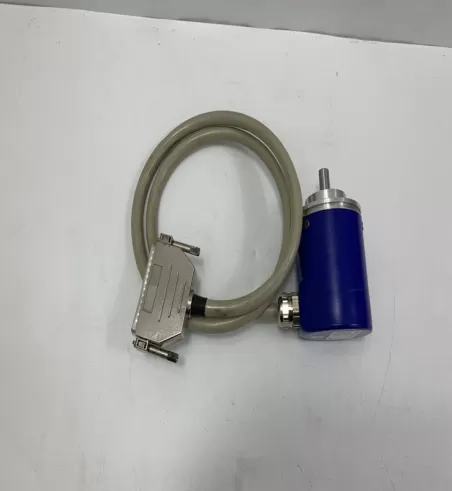

GXM1W.A2041A9700 BAUMER

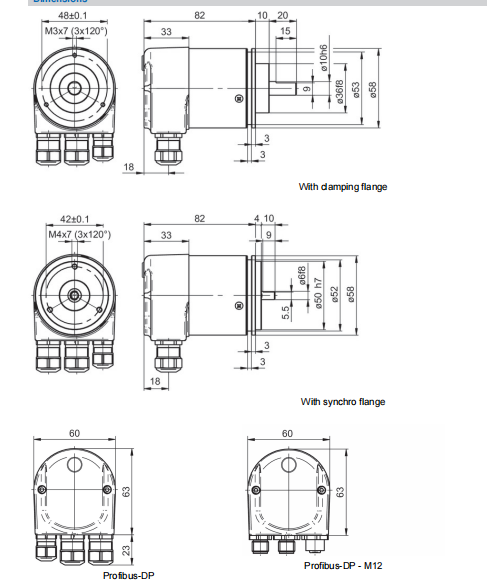

Product Dimensions：

Solid shaft with clamping or synchro flange

Optical multiturn encoders 13 bit ST / 16 bit MT

■ Encoder multiturn / bus cover

■ Optical sensing method

■ Resolution: singleturn 13 bit, multiturn 16 bit

■ Clamping or synchro flange

■ Interface: Profibus-DP

■ Code continuity check optional by bus

■ Maximum resistant against magnetic fields

Size (flange) ø58 mm

Shaft type ø10 mm solid shaft (clamping flange)

ø6 mm solid shaft (synchro flange)

Flange Clamping or synchro flange

Protection EN 60529 IP 54 (without shaft seal)

IP 65 (with shaft seal)

Operating speed ≤10000 rpm (mechanical)

≤6000 rpm (electric)

Starting acceleration ≤1000 U/s²

Starting torque ≤0,015 Nm (+25 °C, IP 54)

≤0,03 Nm (+25 °C, IP 65)

Rotor moment of inertia 20 gcm²

Admitted shaft load ≤20 N axial

≤40 N radial

Material Housing: steel

Flange: aluminium

Bus cover: zinc die-cast

Operating temperature -25...+85 °C

-40...+85 °C (optional)

Relative humidity 95 % non-condensing

Resistance EN 60068-2-6

Vibration 10 g, 16-2000 Hz

EN 60068-2-27

Shock 200 g, 6 ms
