GEL2442 (72Gl) Minicoder Central control module

Product Details：

GEL2442 (72Gl) Minicoder Central control module

Brand：Minicoder Model number：GEL2442 (72Gl)

Country of origin: U.K. Product weight：0.55kg

HS code：8517623990

Product Dimensions：

The flagship of the BEI Sensors product line. It was designed from the ground up for the industrial marketplace. The H25 offers features such as EMI shielding, 40 lb. ABEC 7 bearings, matched thermalcoefficients on critical components, and custom high efficiency optics.

The encoder meets NEMA 4 and 13 requirements when ordered with the shaft seal. Typical applications include machine control, process control, the wood processing industry, oil well logging, industrial weighing, agricultural machinery, textile equipment, web process control, robotics, and food processing.

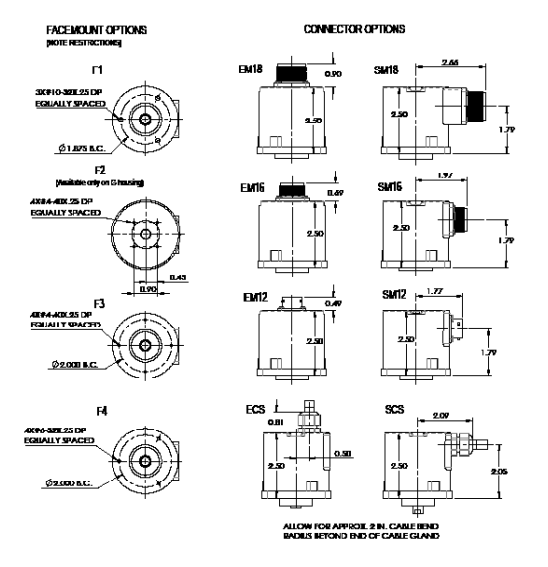

1. Mounting is usually done either using the D-style square flange mount, E- or G-style servo mounts, or

one of the standard face mounts, F1 for example. Consult factory for additional face mount options.

2.The shaft seal is recommended in virtually all installations. The most common exceptions are

applications requiring a very low starting torque or those requiring operation at both high temperature

and high speed.

3. Non-standard index widths and multiple indices are available by special order. Consult factory.

4. Complementary outputs are recommended for use with line driver type (source/sink) outputs. When

used with differential receivers, this combination provides a high degree of noise immunity.

5. Output IC’s: Output IC’s are available as either Line Driver (LD) or NPN Open Collector (OC) types.

Open Collectors require pull-up resistors, resulting in higher output source impedance (sink impedance

is similar to that of line drivers). In general, use of a Line Driver style output is recommended. Line

Drivers source or sink current and their lower impedance mean better noise immunity and faster

switching times. Warning: Do not connect any line driver outputs directly to circuit common/OV,

which may damage the driver. Unused outputs should be isolated and left floating. Our applications

specialists would be pleased to discuss your syste
