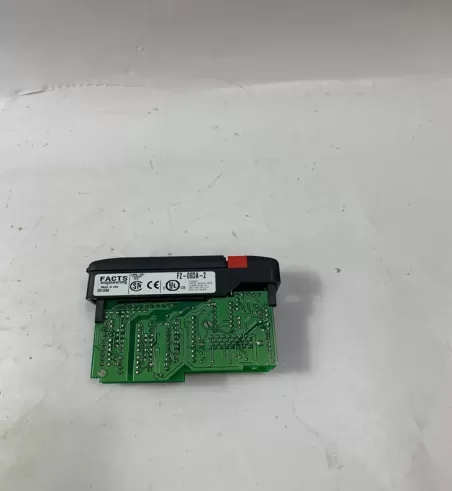

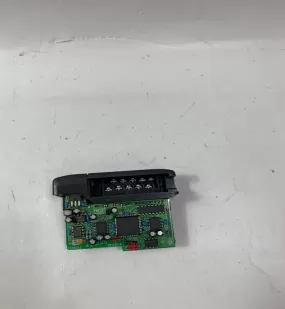

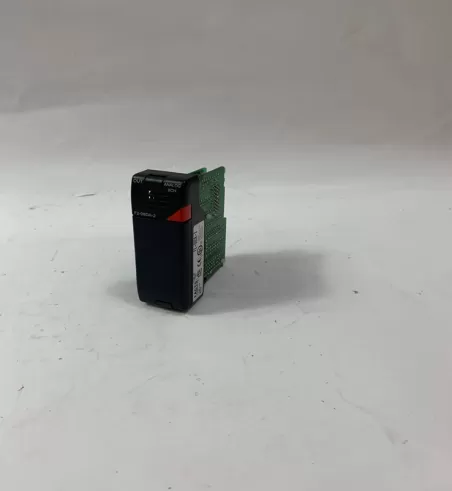

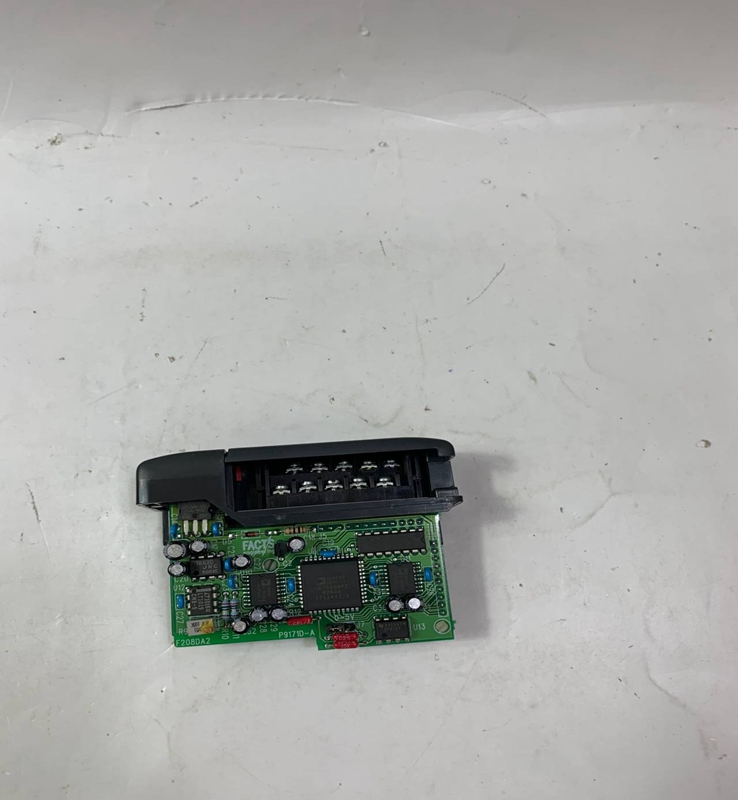

F2-08DA-2 KOYO

Product Dimensions：

The F2-08AD-2 Analog Voltage Input module provides several hardware features:

*Analog inputs are optically isolated from the PLC logic.

*The module has a removable terminal block so the module can

be easily removed or changed without disconnecting the wiring.

*With a DL240, DL250--1 or DL260 CPU, you can update all channels

in one scan.

*Low-power CMOS design requires less than 80mA from an external

18--26.4 VDC power supply Firmware Requirements:To use this module, D2--230 CPUs must have firmware version 1.6 or later.

To use the pointer method of writing values,D2--240 CPUs require firmware version 2.2 or later and D2--250 CPUs require

firmware version 1.06 or later.

The following tables provide the specifications for the F2-08AD-2 Analog Input Module. Review these specifications to make sure the module meets your application requirements.

The F2-08AD-2 Analog Input appears as a 16-point discrete input module. The module can be installed in any slot of a DL205 system. The available power budget and discrete I/O points are the limiting factors. Check the user manual for your particular model of CPU and I/O base for more information regarding power budget

and number of local, local expanison or remote I/O points.

Even though the module can be placed in any slot, it is important to examine the configuration if you are using a DL230 CPU. As you will see in the section on writing the program, you use V-memory locations to extract the analog data. If you place

the module so that the input points do not start on a V-memory boundary, the instructions cannot access the data. This also applies when placing this module in a remote base using a D2--RSSS in the CPU slot.
