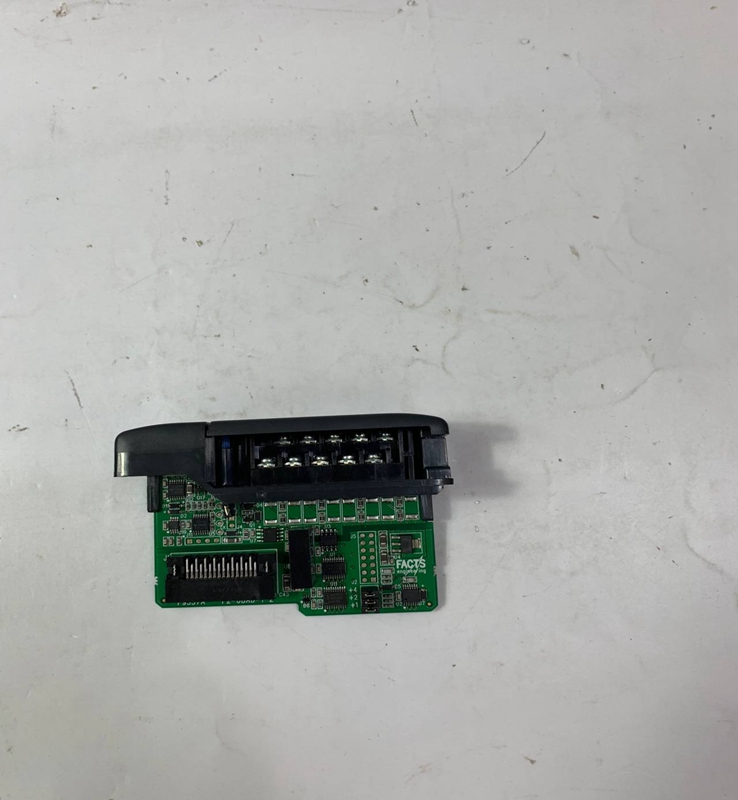

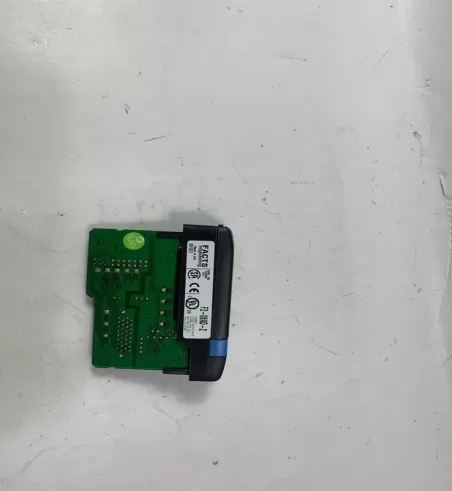

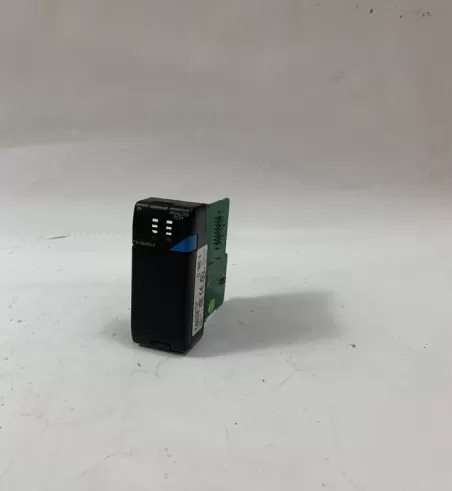

F2-08AD-2 KOYO

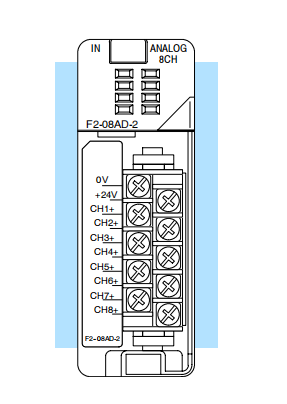

Product Dimensions：

The F2-08AD-2 Analog Voltage Input module provides several hardware features:

*Analog inputs are optically isolated from the PLC logic.

*The module has a removable terminal block so the module can

be easily removed or changed without disconnecting the wiring.

*With a DL240, DL250--1 or DL260 CPU, you can update all channels

in one scan.

*Low-power CMOS design requires less than 80mA from an external

18--26.4 VDC power supply Firmware Requirements:To use this module, D2--230 CPUs must have firmware version 1.6 or later.

To use the pointer method of writing values,D2--240 CPUs require firmware version 2.2 or later and D2--250 CPUs require

firmware version 1.06 or later.

The following tables provide the specifications for the F2-08AD-2 Analog Input Module. Review these specifications to make sure the module meets your application requirements.

The F2-08AD-2 Analog Input appears as a 16-point discrete input module. The module can be installed in any slot of a DL205 system. The available power budget and discrete I/O points are the limiting factors. Check the user manual for your particular model of CPU and I/O base for more information regarding power budget

and number of local, local expanison or remote I/O points.

Even though the module can be placed in any slot, it is important to examine the configuration if you are using a DL230 CPU. As you will see in the section on writing the program, you use V-memory locations to extract the analog data. If you place

the module so that the input points do not start on a V-memory boundary, the instructions cannot access the data. This also applies when placing this module in a remote base using a D2--RSSS in the CPU slot.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

KOYO TRD-2T1000BF

KOYO TRD-NA720PW

KOYO D2-06B-1

KOYO D2-260

KOYO D0-DCM

KOYO H2-ECOM100

KOYO H0-ECOM100

KOYO D2-FILL

KOYO DO-06-DD1-D

KOYO F2-08AD-2

Weintek MT8150XE

Weintek cMT3072X2

Weintek cMT3102X

Weintek cMT-G01

Weintek MT8090XE

Weintek CMT2078X1

Weintek MT8100iE

Weintek cMT3092X

Weintek MT8071IE

Weintek MT8101IE

Colour：new                                   Warranty: 12 months

Lead Time：3-day working day      Price: Please contact us

Shipping Port: Xiamen, China         Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
