F0-04AD-1 AutomationDirect

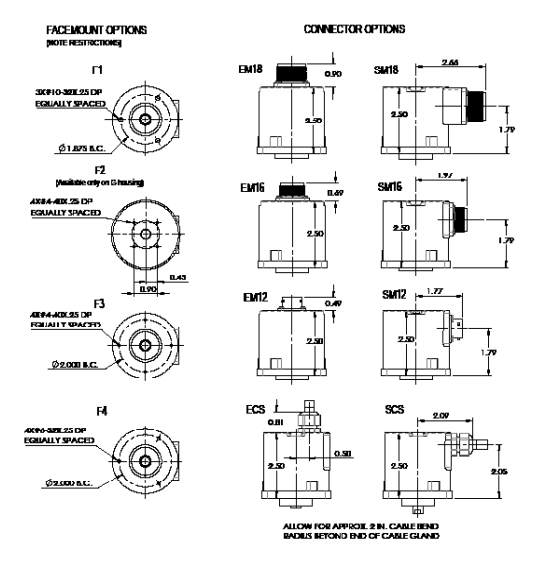

Product Dimensions：

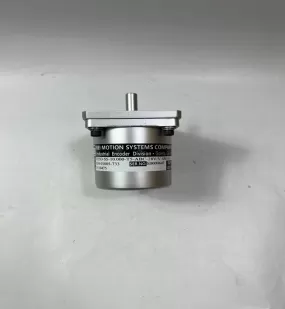

The flagship of the BEI Sensors product line. It was designed from the ground up for the industrial marketplace. The H25 offers features such as EMI shielding, 40 lb. ABEC 7 bearings, matched thermalcoefficients on critical components, and custom high efficiency optics.

The encoder meets NEMA 4 and 13 requirements when ordered with the shaft seal. Typical applications include machine control, process control, the wood processing industry, oil well logging, industrial weighing, agricultural machinery, textile equipment, web process control, robotics, and food processing.

1. Mounting is usually done either using the D-style square flange mount, E- or G-style servo mounts, or one of the standard face mounts, F1 for example. Consult factory for additional face mount options.

2.The shaft seal is recommended in virtually all installations. The most common exceptions are applications requiring a very low starting torque or those requiring operation at both high temperature

and high speed.

3. Non-standard index widths and multiple indices are available by special order. Consult factory.

4. Complementary outputs are recommended for use with line driver type (source/sink) outputs. When used with differential receivers, this combination provides a high degree of noise immunity.

5. Output IC’s: Output IC’s are available as either Line Driver (LD) or NPN Open Collector (OC) types.

Open Collectors require pull-up resistors, resulting in higher output source impedance (sink impedance is similar to that of line drivers). In general, use of a Line Driver style output is recommended. Line

Drivers source or sink current and their lower impedance mean better noise immunity and faster switching times. Warning: Do not connect any line driver outputs directly to circuit common/OV,

which may damage the driver. Unused outputs should be isolated and left floating. Our applications specialists would be pleased to discuss your syste

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

AutomationDirect EA9-T6CL-R

AutomationDirect D0-06DD1

AutomationDirect D4-32TD1

AutomationDirect D4-64ND2

AutomationDirect D4-EX

AutomationDirect DL06

AutomationDirect D2-262

AutomationDirect D0-06DR-D

AutomationDirect EA7-T15C

AutomationDirect F0-04AD-1

AutomationDirect F0-08ADH-1

AutomationDirect F2-08AD-1

AutomationDirect F4-04DA-1

AutomationDirect F4-16AD-1

AutomationDirect F4-MAS-MB

AutomationDirect D2-32ND3

AutomationDirect DL205 D2-09B-1

AutomationDirect VT300WA0000

Colour：new                                   Warranty: 12 months

Lead Time：3-day working day      Price: Please contact us

Shipping Port: Xiamen, China         Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
