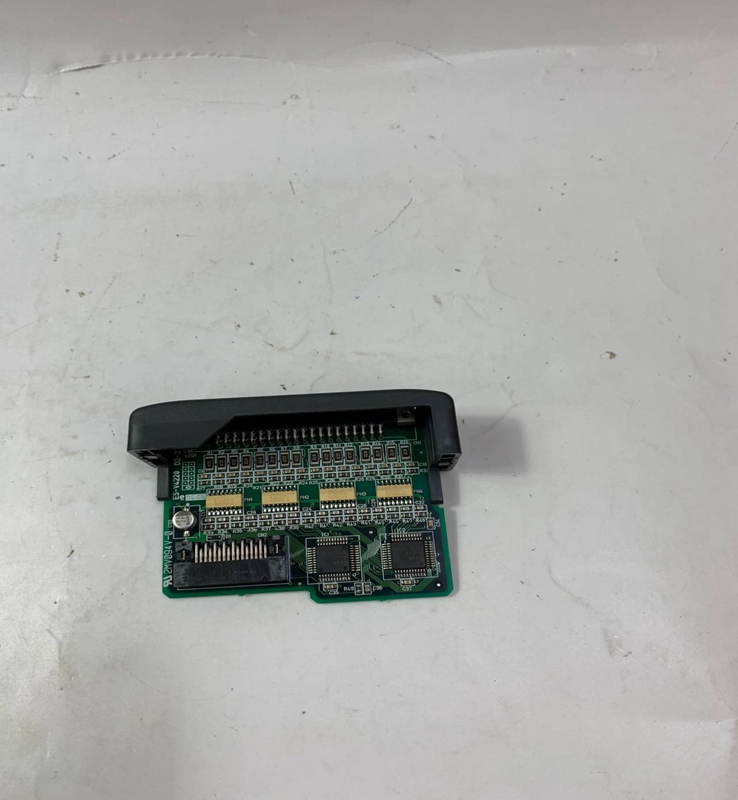

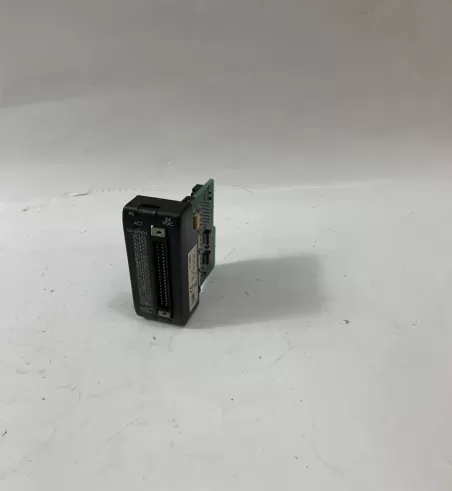

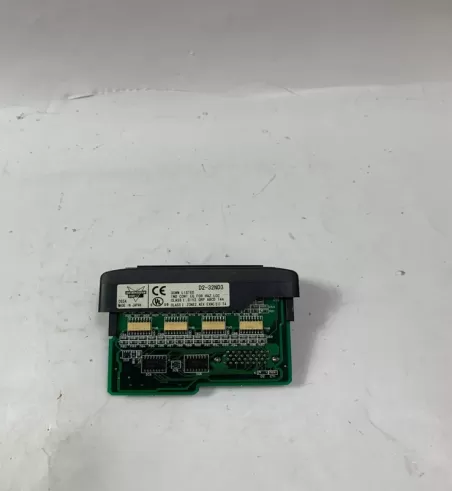

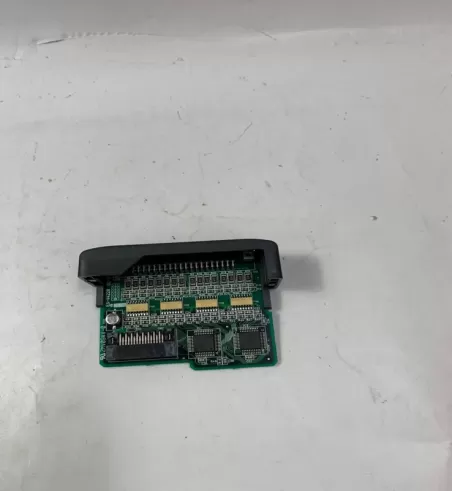

D2-32ND3 KOYO

Product Dimensions：

Inputs per Module 32 (sink/source)

Commons per Module 4 isolated (8 I/O terminal points / com)

Input Voltage Range 20-28 VDC

Peak Voltage 30VDC

ON Voltage Level 19VDC minimum

OFF Voltage Level 7VDC maximum

AC Frequency N/A

Input Impedance 4.8 kΩ

Input Current 8.0 mA @ 24VDC

Minimum ON Current 3.5 mA

Maximum OFF Current 1.5 mA

Base Power Required 5VDC 25mA

OFF to ON Response 3 to 9 ms

ON to OFF Response 3 to 9 ms

Terminal Type (not included) 40-pin Connector1

Status Indicator Module Activity LED

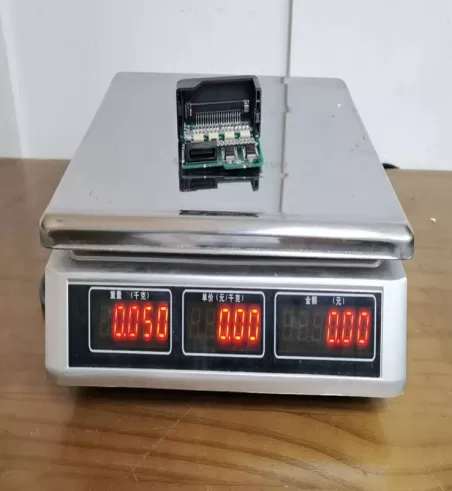

Weight 2.1 oz. (60g)

1 Connector sold separately.

 See Terminal Blocks and Wiring for wiring options

See Wiring Solutions for part numbers of

ZIPLink cables and connection modules

compatible with this I/O module.

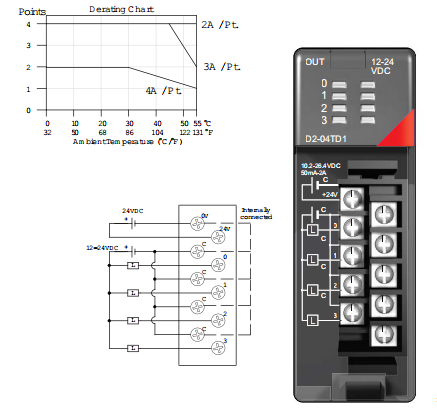

At 40mS duration, loads of 3.0 A or greater cannot be used.

At 100mS duration, loads of 2.0 A or greater cannot be used.

Find the load current you expect to use and the duration that the output is

ON. The number at the intersection of the row and column represents the

switching cycles per minute. For example, a 1A inductive load that is on

for 100ms can be switched on and off a maximum of 60 times per minute.

To convert this to duty cycle percentage use: (duration x cycles)/60. In this

example,(60 x .1)/60 = .1, or 10% duty cycle.
