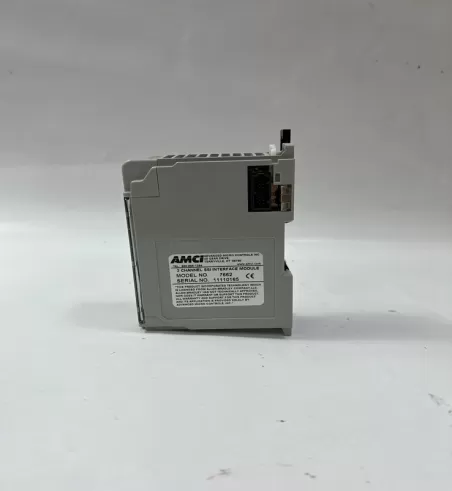

AMCI 7662 AMCI Interface Module

Brand：AMCI Model number：7662

Country of origin: United States Product weight：0.27kg

Product Details：

Product Dimensions：

The 7662 module is a SSI interface module that can reside in either a Rockwell Automation CompactlLogix or MicroLogix 1500 rack system. This module is capable of connecting to two independent SSI output sensors. This module also has two latching inputs, one for each channel, that are used to capture the sensor’s data.

The 7662 module uses 8 input and 8 output registers to communicate with the PLC. The Position, Velocity, Actual SSI data, Latched Value, and Status information are reported to the Input Registers. All module setup parameters, including Preset Value, Count Direction, Velocity Response Time, Display Format, as well as the SSI-Logic parameters [Data Type (binary or gray code), Data Logic (positive or negative), Number of Clock Bits, Number of Data Bits, MSB Number, and Clock Frequency] are programmed through the Output registers assigned to the module.

The 7662 module stores its parameters in a non-volatile flash memory when power is removed so it is not necessary to program the module at every power up. However, this flash memory is good for a minimum of 10,000 write cycles so the module must not be programmed during every machine cycle.

The module has two opto-coupler latching inputs that will capture the scaled sensor data on the rising, falling, or both transitions of the input. These inputs can be wired to be sinking or sourcing and will activate when they see a voltage level between 8 and 24Vdc across the + and – latch terminals.
