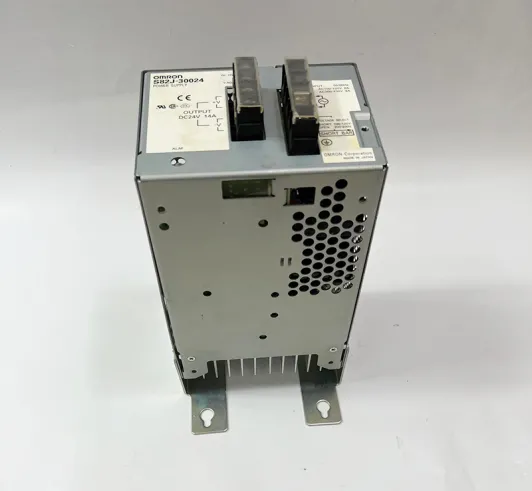

OMRON S82J-30024 Switch Mode Power Supply

Brand: OMRON

Model number: S82J-30024

Colour: new

Warranty: 12 months

Lead Time: 3-day working day

Country of origin: Japan

Price: Please contact us

Product weight: 1.895kg

Shipping Port: Xiamen, China

Payment: T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Product Dimensions:

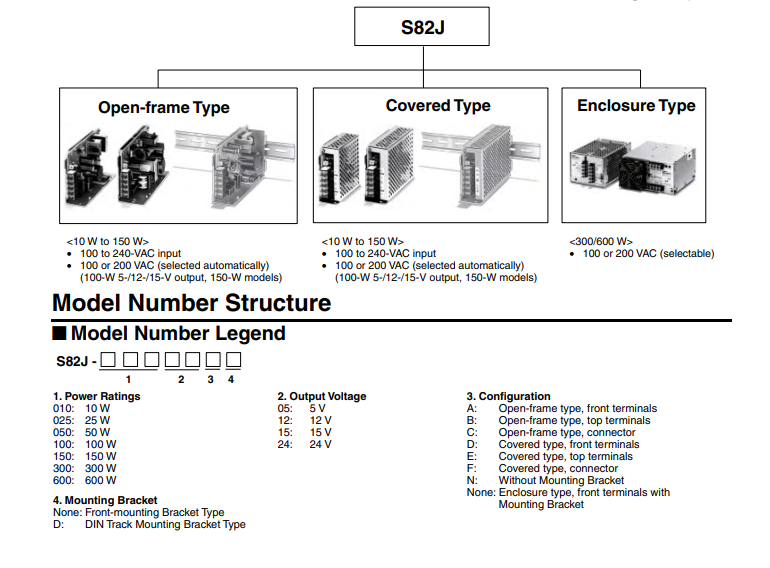

OMRON S82J-30024  Switch mode Power Supply

Power range from 10 W up to 600 W.

• Output Voltages: 5 V, 12 V, 15 V, or 24 V.

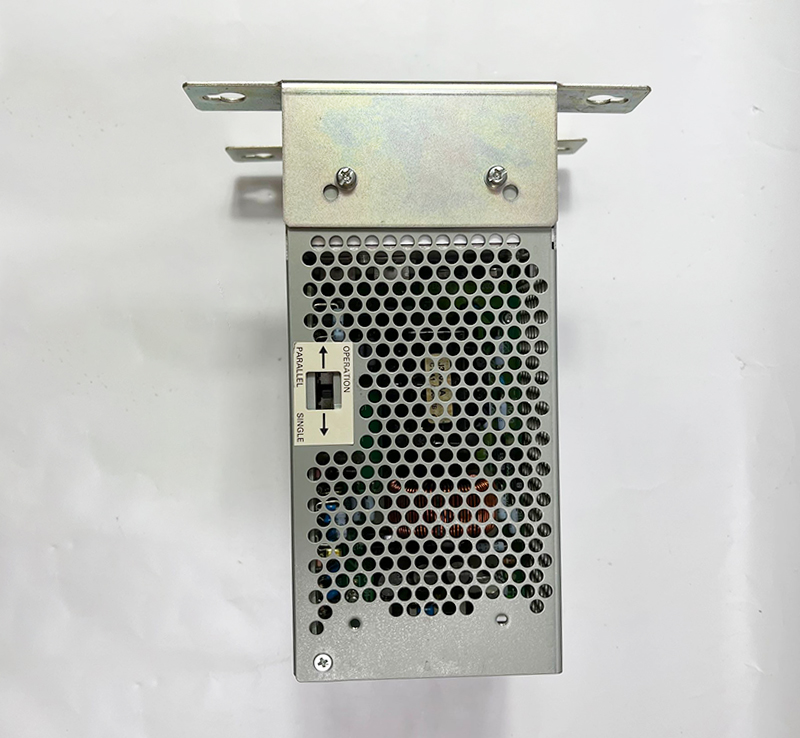

• Mounting bracket provided for mounting to control panels.

• Maintenance-free up to 300 W due to natural ventilation.

• Protection-ON alarm indicator shows valuable protection functions in action (300-/600-W models).

• Conforms to EMC standards: EN50081-2 and EN50082-2.

• With an external filter, achieves conformance to EN50081-1 for universal usage on EMI (300-/600-W models).

• Finger protection terminal block to meet VDE0106/P100

• Class 2 approved 10-W, 25-W (except for 5-V output), and 50-W (only for 24-V output) models.

• UL508 approved. All models can be used at full load in UL508A industrial control panel applications.

• Approved by UL/CSA standards, EN60950, and EN50178 (VDE0160).

• Six-language instruction manual provided. (English, French, German, Italian, Spanish, and Japanese)

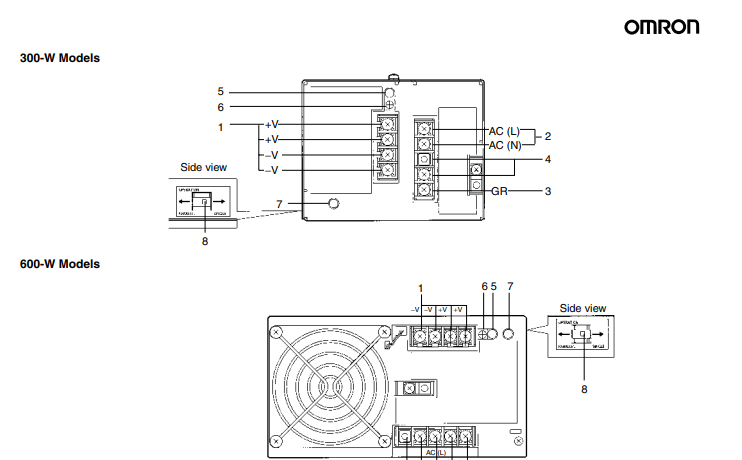

1. DC Output Terminals: Connect the load lines to these terminals.

2. Input Terminals: Connect the input lines to these terminals. Note: A fuse is inserted into the AC (L) side.

3. Ground Terminal (GR): Connect a ground line to this terminal.

4. Input Voltage Selector Terminals: Short-circuit the terminals if the input is 100 to 120 VAC and open the terminals if the input is 200 to 230 VAC

5. Output Indicator (DC ON): Lights while a Direct Current (DC) output is ON.

6. Output Voltage Adjuster (V.ADJ): It is possible to increase or decrease the output voltage by 10%.

7. Protection-ON Alarm Indicator: The red indicator will be lit if the overvoltage (for a 300-/600-W model) or overheat protection (for a 600-W model) circuit is triggered. This indicator will also be lit when overcurrent (for a 600-W model) is detected.

8. Parallel/Single Operation Selector: Set the selector to PARALLEL if the Units are in parallel operation.

9. NC Terminals: Leave unconnected.

The Power Supply is provided with an overload protection function that protects the load and the power supply from possible damage by overcurrent. When the output current rises above 105% to 160% of the rated output current, the protection function is triggered, decreasing the output voltage. When the output current falls within the rated range, the overload protection function is automatically cleared.
