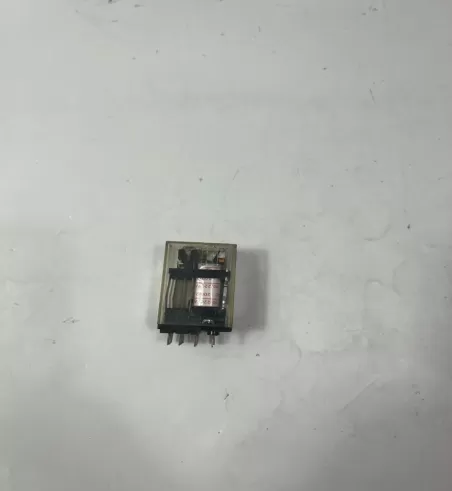

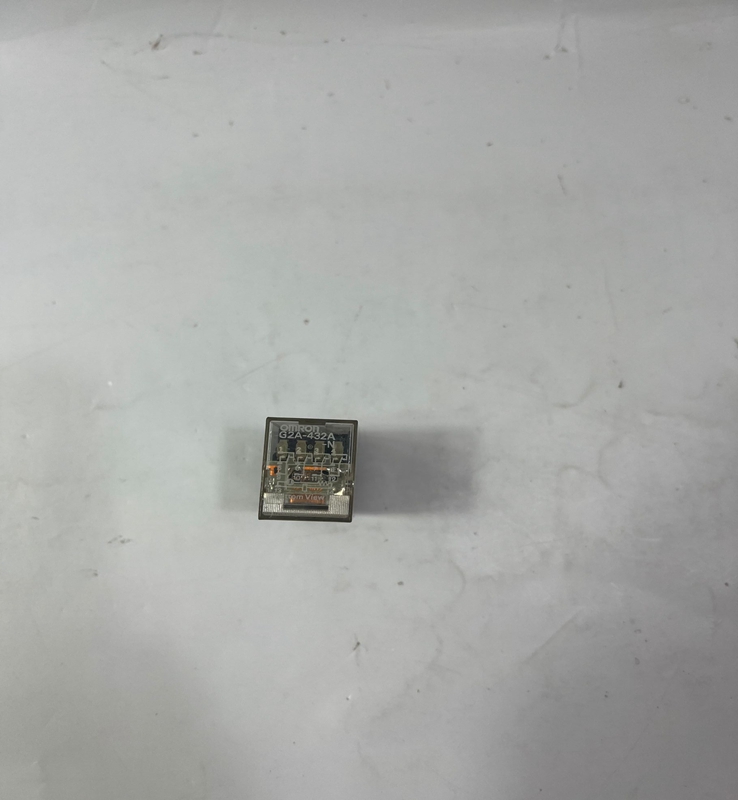

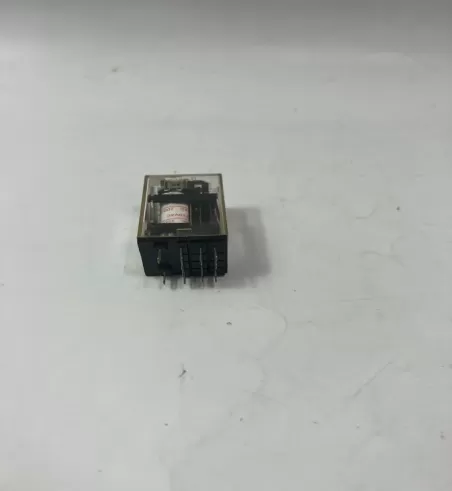

G2A-432A Omron General Purpose Relays

Product Details:

G2A-432A Omron General Purpose Relays

BrandOMRON                              Model numberG2A-432A

Country of origin: Japan                   Product weight0.55kg

HS code:8538900000

Product Dimensions:

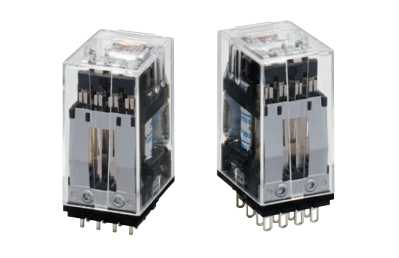

Highly Reliable, 4-pole Miniature Relay Ideal

for Sequence Control

• Card lift-off employed for greater life and stable quality.

• Long endurance and stable quality are assured by card lift-off

system.

• Mounting interchangeability with MY-series Relays.

• Operation indicator mechanism incorporated for at-a-glance

monitoring of ON/OFF operation. In addition, a built-in operation

indicator model is also included in this Relay Series.

1. When placing your order, add the coil voltage rating listed in the specifications to the model number as shown below.

Example: G2A-432A 100/110 VAC

 2. Built-in diode model and the operating coil of the G2A-432A-N1 are available only with DC ratings.

 3. The Latching Relay (G2AK) and Fully sealed Relay (G2A-434A) developed based on the G2A are also available in this se-

 ries.

: 1. The data shown above are initial values.

2. The contact resistance was measured with 0.1 A at 5 VDC using the voltage drop method.

3. The operate or release time was measured with the rated voltage imposed with any contact bounce ignored at an ambient temperature

of 23°C.

4. The insulation resistance was measured with a 500-VDC megger applied to the same places as those used for checking the dielectric

strength.

5. The electrical endurance was measured at an ambient temperature of 23°C.

6. This value was measured at a switching frequency of 60 operations per minute.
