CS1G-CPU44H Omron CS1 Programmable Logic Controllers

Product Details：

CS1G-CPU44H Omron CS1 Programmable Logic Controllers

Brand：OMRON Model number：CS1G-CPU44H

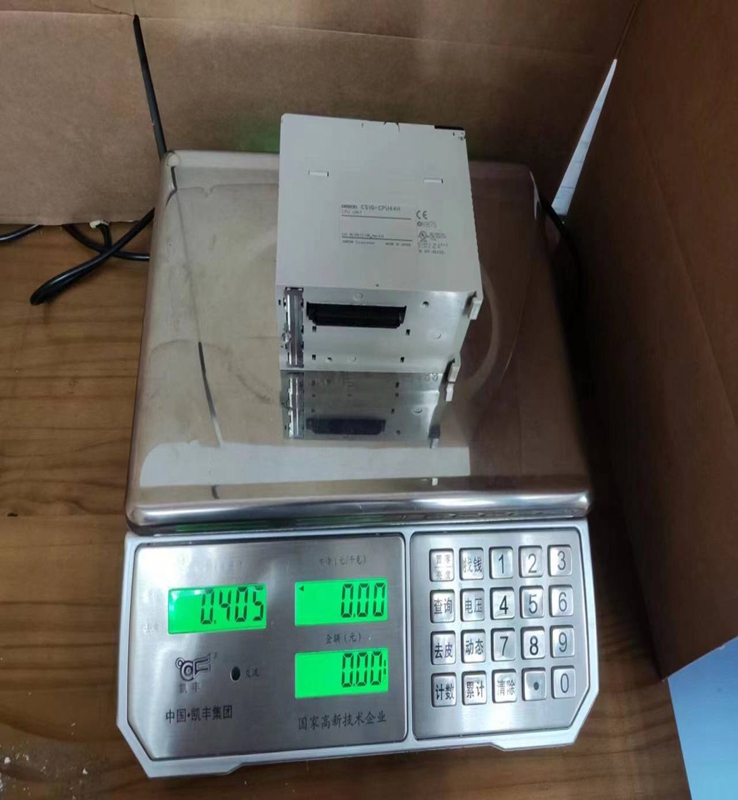

Country of origin: Japan Product weight：0.405kg

HS code：8538900000

Product Dimensions：

CS1 is Omron's most extensive PLC family, with a maximum capacity of 5120 'local' digital I/Os. Up to 7 expansion racks can be connected to a single CPU rack, bringing the maximum number of I/O units to 80. Any combination from over 200 models of digital I/Os, analog I/Os, control units and communication units can be mounted in any order. The huge instruction set and function block library allow you to write very compact programs, using any mix of IEC 61131-3 Structured Text and ladder language.

Highly Reliable, 4-pole Miniature Relay Ideal

for Sequence Control

• Card lift-off employed for greater life and stable quality.

• Long endurance and stable quality are assured by card lift-off

system.

• Mounting interchangeability with MY-series Relays.

• Operation indicator mechanism incorporated for at-a-glance

monitoring of ON/OFF operation. In addition, a built-in operation

indicator model is also included in this Relay Series.

Note: 1. The coil of the G2A-432A-N1 or a built-in diode model operates with DC only.

2. The G2A Series include the G2A-434A Power Relay and G2AK Latching Relay. Refer to G2A-434 and G2AK for details.

3. Built-in indicator models satisfying international standards are available. Contact your OMRON representative for details.

: 1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of +15%/–20% for AC rated current and

±15% for DC coil resistance.

2. The AC coil resistance and coil inductance values are for reference only.

3. Performance characteristic data is measured at a coil temperature of 23°C.

4. The maximum voltage is one that is applicable instantaneously to the Relay coil at an ambient temperature of 23°C and not continuously.

5. For built-in operation indicator models rated at 6, 12, and 24 VDC, add an LED current of approx. 5 mA to the rated currents.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
