01 Development Status of Smart Home Industry
Smart home refers to an intelligent system centered on the residence, using integrated wiring technology, Internet technology, automatic control technology, sensor technology, audio and video technology, etc. to integrate residential related facilities into a unified platform to achieve control and management. Compared with ordinary homes, the smart home system has expanded the application of information interaction, automatic control, remote management and other functional applications in addition to the traditional living functions, which helps to create a more comfortable, safe and pleasant living space, so it has been widely recognized by people. attention, showing a good market development prospects.
Up to now, the smart home system has undergone changes from single-product intelligence to whole-house intelligence and then to reverse customization. It puts more emphasis on the "people-centered" provision of personalized services, and puts forward the following technical requirements for the application of smart home equipment: interconnection, intercommunication, information exchange, real-time response, high function integration, smaller size, safer and more reliable, etc.
In response to this, when customers in the industry are developing smart home systems, there is a high demand for embedded computer products that can be tailored for software and hardware, more customized, and more durable. NORCO's self-developed X86 platform motherboard MITX-6990 supports integrated control applications for modern smart home devices.
02 X86 platform motherboard MITX- -6990

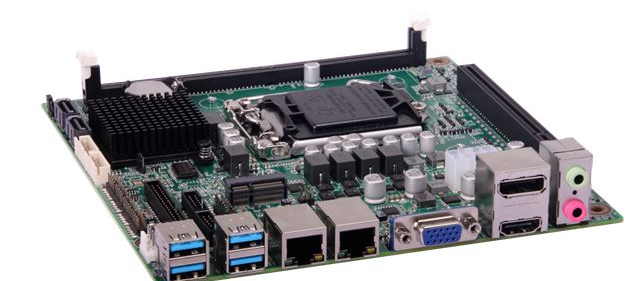

MITX-6990 is a Mini-ITX motherboard built by NORCO with the 8th/9th generation Intel Core processor. It has excellent computing power, graphics performance and low power consumption. It has a compact structure and rich 1/0 function interfaces. It can be highly integrated in In the smart home system.
MITX-6990 meets the higher rate real-time data collection, transmission and processing requirements of the smart home system:
➢Support 8th/9th generation Intel Core i3/i5/i7/i9 processors (up to 65W) and Intel H310/Q370/Z390 chipsets, with better performance in terms of turbo frequency and power consumption control;
➢1*UDIMM memory slot, supports DDR42400/2666MHz, up to 32GB, to meet the product application requirements of large memory;
➢Support 2*SATA 3.0 and 1*MSATA (optional) to expand storage capacity;
➢Support 2*LAN (Intel 1219-LM/Intel 1225-V), 4*USB3. 0, 4*USB2. 0, 6*RS232, 1*RS232/RS422/RS485 to help realize high-speed network communication and multi-machine networking;
➢Support 1*Mini-PGle (4G/Wifi/MSATA function optional), 1*M.2 E-Key 2230 WIFI/BT to help realize wireless network communication.
MITX-6990 has rich 1/0 function interfaces to meet the needs of smart home system audio and video technology applications and multi-functional module integration:
➢Integrate Intel UHD Graphics 630 graphics controller, support 1*VGA, 1*HDMI, 1*DP++ display interface, support independent multi-display and 4K high-resolution display;
➢Support 1*Line out, 1*Mic in, 1*JAMP power amplifier interface;
➢Support 1*PCle x16(16-lanes), 2*CAN (optional function), 1*PS/2, 8*GPI0, 1*CPUFAN, 1*SYSFAN, 1*JFP, 2*SATA PWR power supply interface can direct hit
Extended to external devices.
