Advantech launches SQRAM DDR5 5600 series industrial memory. This series follows the new trend of computer memory, supports DDR5, and has a data transmission speed of up to 5600MT/s. The SQRAM 5600 Series delivers lightning-fast speeds, with bandwidths from 8GB to 48GB and beyond, and incredible data transfer rates that far exceed industry standards. In addition, it has undergone rigorous laboratory testing and supports a wide temperature operating range of -40 ~ 95 °C to ensure stable and reliable product operation. These features make the SQRAM DDR5 5600 Series ideal for multi-tasking and data-intensive systems such as high-end medical imaging, AI and machine learning, and edge server systems.
5600 MT/s ultra-high speed, 24GB&48GB ultra-large capacity
For most industrial applications, the pursuit of faster and more efficient performance, as well as high speed and capacity, remains a top priority. The SQRAM DDR5 5600 series uses the 13th generation Intel® Core™ processor to provide transmission performance up to 5600MT/s. In addition, tested by AIDA64 Memory Benchmark v6.70, the read/write speed is 20% higher than the previous generation 4800MT/s.
The bandwidth of this memory architecture is 50% higher than DDR4, and as the number of cores per CPU continues to increase, the efficiency is also improved, helping to alleviate the problem of tight bandwidth per processor core. In addition, the new DDR5-5600 DIMM is available in 24GB and 48GB capacities and uses 3Gbx8 IC (upgraded from the previous generation 2Gbx8 IC), providing greater capacity and higher cost-effectiveness, and can run multiple applications simultaneously, No need to worry about running out of memory resources.
Industrial-grade wide temperature & customized services for harsh environments
Because electronic devices operate in a variety of environments and applications, wide-temperature DRAM is essential for critical applications in challenging environments.
SQRAM DDR5 5600 supports ultra-wide temperature operation of -40~95 °C. The wide temperature solution ensures that DDR5 5600 is suitable for outdoor high and low temperature environments, as extreme temperatures are a challenge for traditional memory solutions. In addition, SQRAM also has other outstanding designs to cope with harsh environments, such as anti-sulfide, underfill, conformal coating and SPD write protection, to cope with challenging environments and ensure product reliability, stability and durability.
Supports Advantech’s intelligent management software SQRAM Manager & DeviceOn
Advantech's SQRAM series products come with built-in software SQRAM Manager & DeviceOn, which can monitor DRAM in real time, provide useful information including dynamic cache speed, real-time operating temperature, and provide advanced overheating alerts to inform users of the operating health of the memory system. To maintain the stability of system performance, Advantech's unique software flexibly supports cloud remote control mode and on-premises versions of each device, which you can download from the Advantech website.

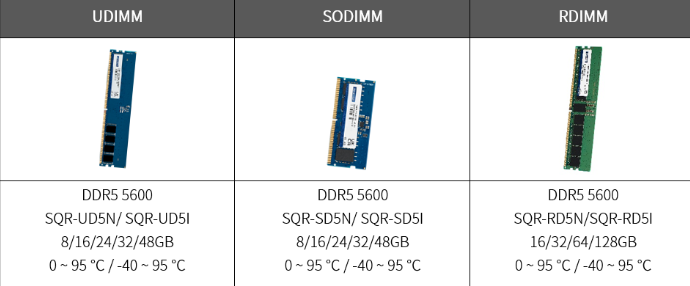

Advantech SQRAM DDR5 5600 memory series product features:
Ultra-high speed: 5600MT/s
Available capacity: 8/16/24/32/48/64/128GB
Compatible with 13th Generation Intel® Core™ Processors
Operating temperature range: 0 ~ 95 °C (Tc) / -40 ~ 95 °C (Tc)
1.1V low voltage, lower power consumption and higher energy efficiency
30µ" gold finger interface, anti-oxidation, longer service life
Using original high-quality DRAM chips (Samsung, Micron, Hynix)
Support SQRAM software - real-time monitoring/overheating alarm function
Anti-sulfurization / underfill / conformal coating / SPD write protection, customized services available
Lifetime warranty
