PXI-8430 National Instruments Serial Interface Module

Product Details：

PXI-8430 National Instruments Serial Interface Module

Brand：National Instruments Model number：PXI-8430

Country of origin: United States Product weight：0.14kg

HS code：8517623990

Product Dimensions：

Board Assembly Part Numbers (Refer to Procedure 1 for identification procedure):
Part Number and Revision		Description
191883B-0xL or later		PXI-8430/8, PXI-8431/8
191889B-01L or later		PXI-8430/16
191880B-0xL or later		PCI-8430/8, PCI-8431/8
191886B-01L or later		PCI-8430/16
Volatile Memory
Target Data	Type			Size	Battery Backup		User1 Accessible		System Accessible		Sanitization Procedure
None
Non-Volatile Memory (incl. Media Storage)
Target Data	Type		Size			Battery Backup		User Accessible		System Accessible	Sanitization Procedure
Glue logic	CPLD (8430/8 only)		Intel EPM7064S			No		No		No	None
Glue logic	CPLD (8431/8 and 8430/16 only)		Intel EPM7128S			No		No		No	None
Device configuration	EEPROM		64 Kbit			No		No		Yes	None
1 Refer to Terms and Definitions section for clarification of User and System Accessible

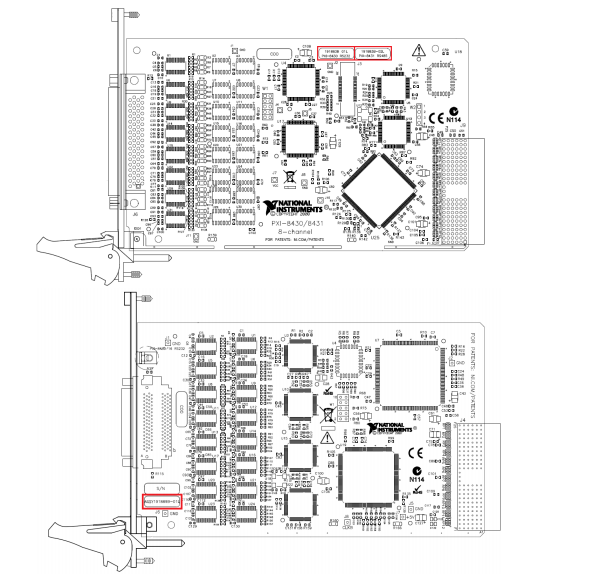

Procedures Procedure 1 – Board Assembly Part Number identification: To determine the Board Assembly Part Number and Revision, refer to the “Assy#” label applied to the surface of your product as marked by red on the drawing below. The Assembly Part Number should be formatted as “P/N: #####a-xyL” where “a” is the letter revision of the Board Assembly (eg. A, B, C…X) and the “xy” is the type definition (eg.: 01 = 8430, 8-port, 02 = 8431, 8-port).
