PXI-2596 National Instruments

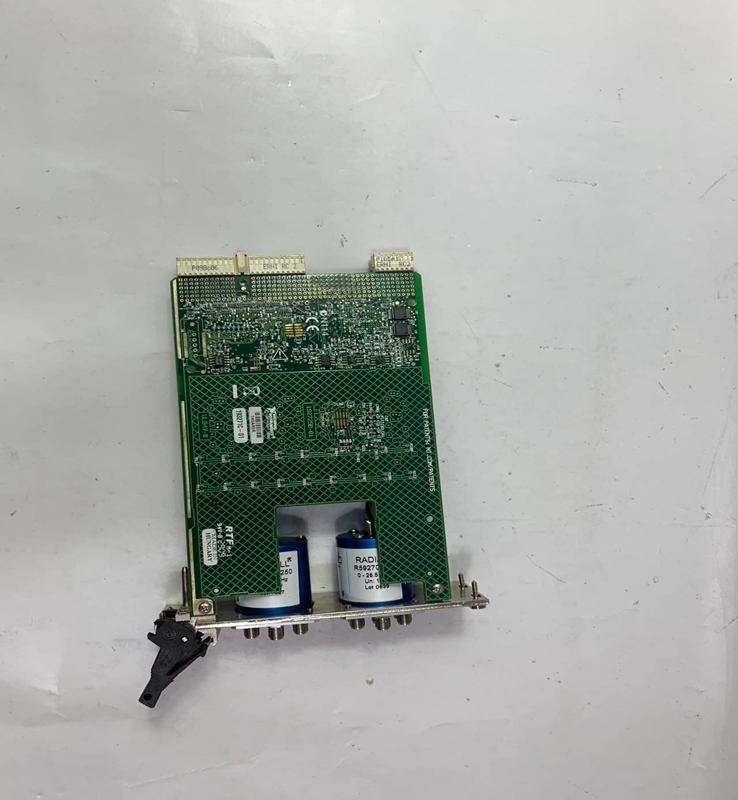

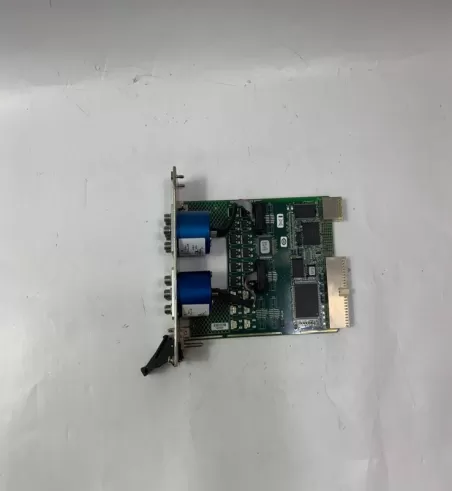

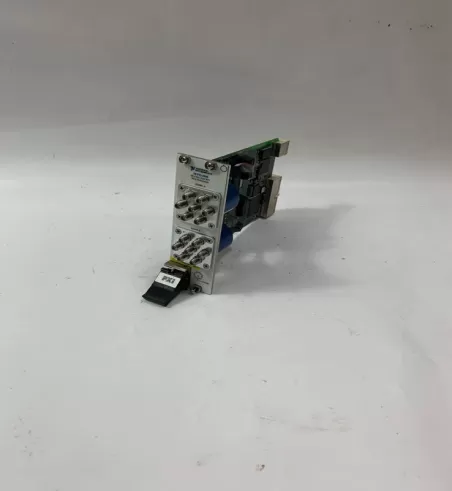

PXI-2596 National Instruments Multiplexer Switch Module

Brand：National Instruments Model number：PXI-2596

Country of origin: United States Product weight：0.100kg

HS code：8517623990

Product Details：

Product Dimensions：

This document lists specifications for the NI PXI-2596 (PXI-2596) relay module. Allspecifications are subject to change without notice. Visit ni.com/manuals for the most current specifications.

This module is rated for Measurement Category I and intended to carry signal voltages no greater than 100 V. This module can withstand up to 500 V impulse voltage. Do not use this module for connection to signals or for measurements within Categories II, III, or IV. Do not connect to MAINs supply circuits (for example, wall outlets) of 115 or 230 VAC.

NI recommends against switching active RF signals. As a relay actuates, the channel is momentarily unterminated. Some RF sources can be damaged by reflections if their outputs are not properly terminated. Refer to your RF source documentation for more information.

National Instruments recommends against switching RF signals below

-35 dBm with this device.

This product is designed to meet the requirements of the following electrical equipment safety standards for measurement, control, and laboratory use:

• IEC 61010-1, EN 61010-1

• UL 61010-1, CSA 61010-1

For UL and other safety certifications, refer to the product label or the Online Product Certification section.

This product meets the requirements of the following EMC standards for electrical equipment for measurement, control, and laboratory use:

• EN 61326-1 (IEC 61326-1): Class A emissions; Basic immunity

• EN 55011 (CISPR 11): Group 1, Class A emissions

• AS/NZS CISPR 11: Group 1, Class A emissions

• FCC 47 CFR Part 15B: Class A emissions

• ICES-001: Class A emissions
