PCI-4065 National Instruments

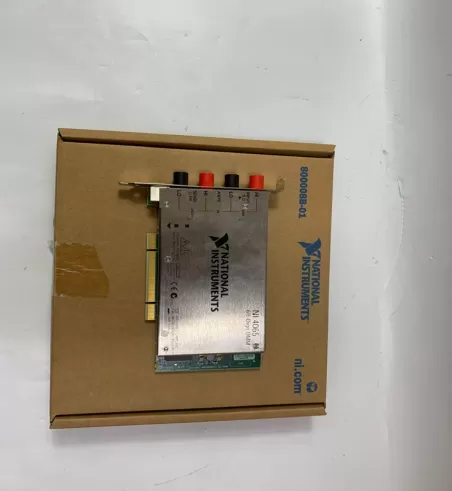

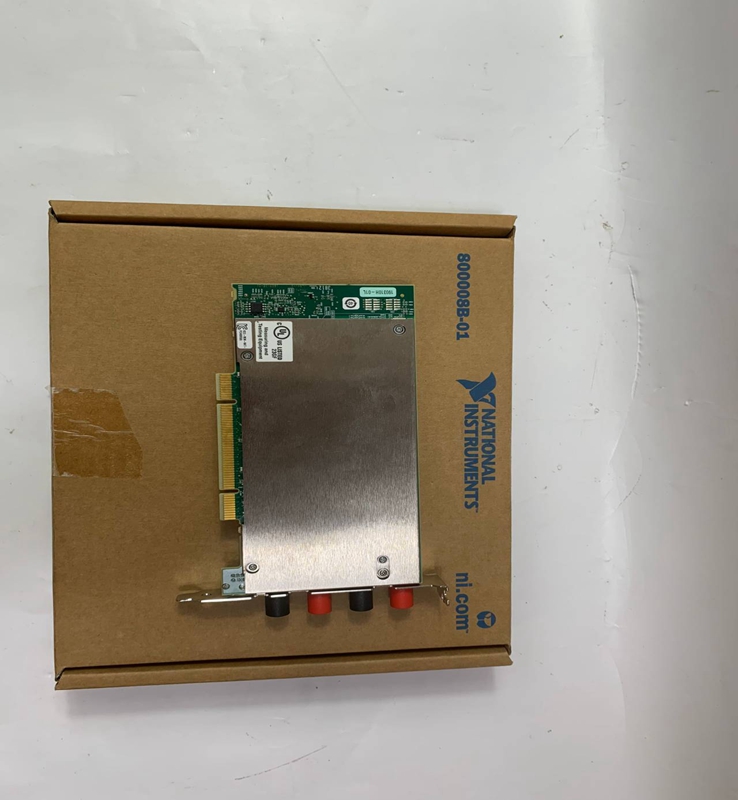

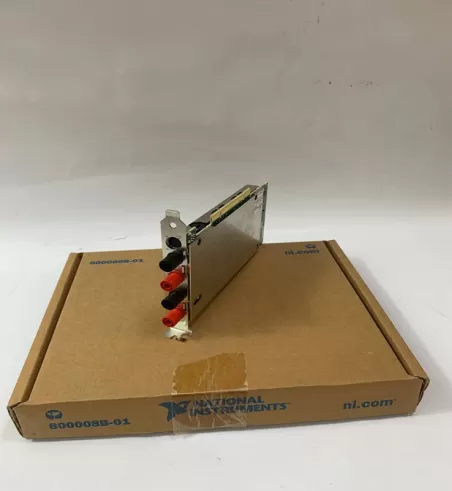

PCI-4065 National Instruments Multimeter Card

Brand：National Instruments Model number：PCI-4065

Country of origin: United States Product weight：0.55kg

HS code：8517623990

Product Details：

Product Dimensions：

The NI PXIe-4310 provides eight, simultaneously sampled, analog input channels, each with channel-to-channel and channel-to-earth isolation. The PXIe-4310 has a 10 V maximum measurement range when using a TB-4310 (10V) that can be expanded to 600 V when using a TB-4310 (600V). Each channel of the PXIe-4310 has a 16-bit ADC with three programmable filter settings and four gain settings. Two input PFI lines are available on the module for triggering/clocking

For a complete list of terminal blocks supported by a specific release of NI-DAQmx, refer to the NI-DAQmx Readme, available on the version-specific download page or installation media.

Refer to the PXIe-4310 Specifications document for module specifications

This chapter describes how to connect AI input signals to the PXIe-4310. It also provides the I/O connector signal pin assignments of the module.

Driver support for the PXIe-4310 was first available in NI-DAQmx 17.1. For the list of devices supported by a specific release, refer to the NI-DAQmx Readme, available on the version-specific download page or installation media.

The PXIe-4310 provides channel-to-channel and channel-to-earth isolation. Refer to the PXIe-4310 Specifications for information about Safety Voltage operating levels.

VSIG is the voltage difference between AI<0..7>+ and AI<0..7>-. This is the desired signal to be measured. VCM is the common-mode voltage with respect to the AI isolated ground, COM<0..7>, calculated by subtracting COM<0..7> from AI<0..7>-. VISO is the isolation voltage with respect to the chassis ground of the measurement device.

The analog input channels are floating with respect to chassis ground and each other. If you make a ground-referenced connection between the signal source and the PXIe-4310 input, make sure

the voltage on the AI+, AI-, and COM connections are within the safety voltage limits to ensure safe operation. Refer to the PXIe-4310 Specifications for more information about Safety Voltages

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
