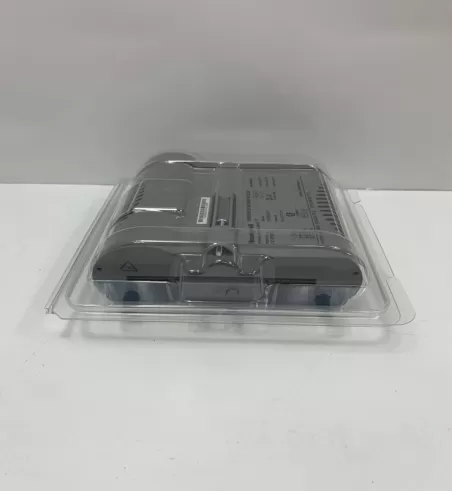

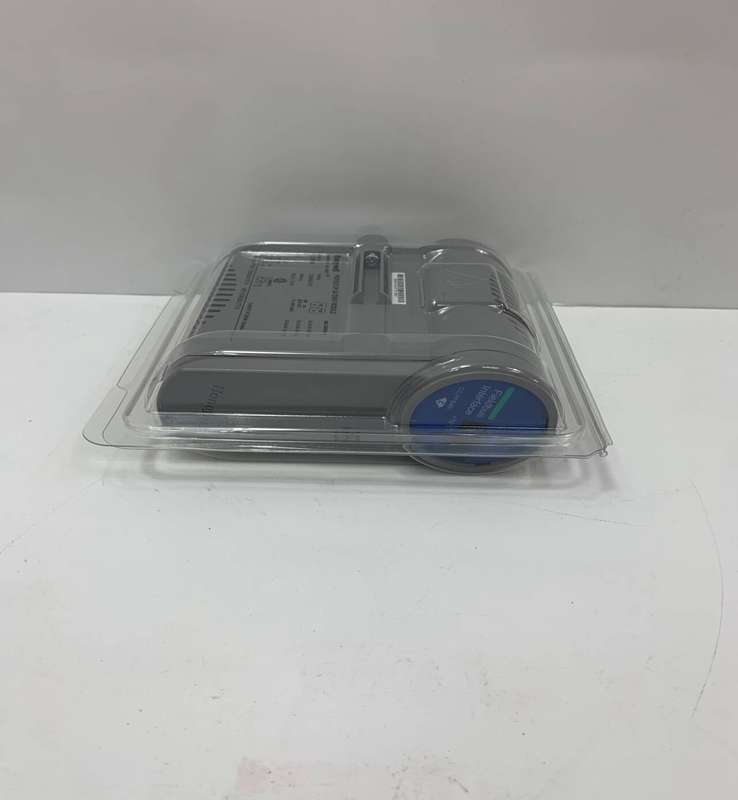

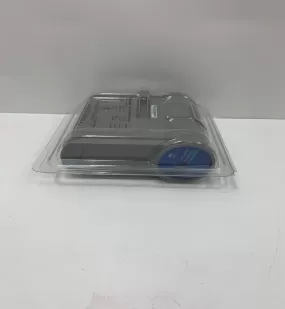

CC-IP0101 51410056-175 Honeywell

Product Dimensions：

ExperionTM LX is a member of Honeywell’s Experion family, Experion LX is specifically designed to meet the customer

needs in mid-tier markets (Chemicals, Industrial Power, F&B, Bio-fuels, …), through integrating state-of-the-art

technology from the award-winning Experion Process Knowledge System (PKS) with innovative design of Series 8 I/O

modules and cabinets, validated wider range of COTS options, easy engineering and maintenance capabilities, and

integrator-friendly programs and tools. Experion LX is the perfect platform for process, asset and business

management with small to medium complexity, and enables customers to increase their profitability and productivity

and accessibility to local support without sacrificing quality and reliability in an increasingly competitive environment.

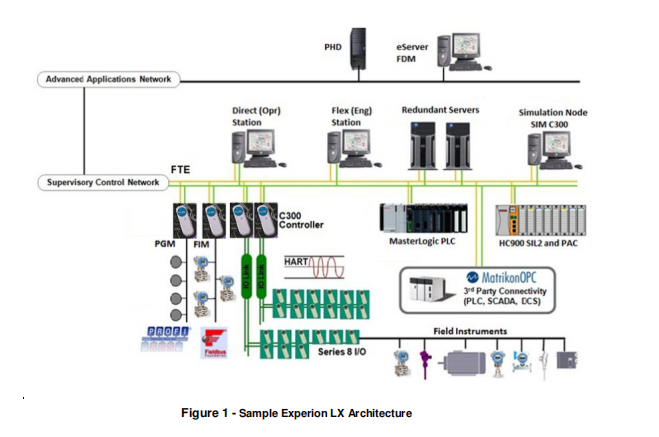

The Experion LX platform comprises many different integrated hardware and software solutions depending upon the

needs of the application. This pictured architecture is a representation of many of the possible nodes that can be used

in the Experion LX architecture. Note that the architecture is highly scalable and not all nodes are necessary or

required.

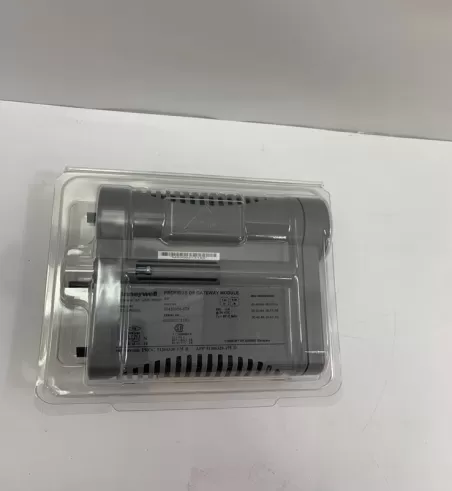

This document provides technical information for the Series 8 Profibus Gateway Module, released with Experion LX.

The PROFIBUS Gateway Module provides a common module platform to support the interface to the PROFIBUS DP

and the C300 Controller. The PGM is developed in the Series 8 form factor for use with the C300 Controller. The Series

8 form factor employs an Input Output Termination Assembly (IOTA) and an electronics module which mounts and

connects to the IOTA.

As a PROFIBUS gateway, PGM is always a master and communicates with the PROFIBUS compatible slave devices.

The PGM mounts in the same fashion and shares all characteristics, power and grounding, certifications, and meets all

environmental rating as all other Series 8 components.

The PGM is optionally redundant and supports two DP networks per module.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

HONEYWELL 900B01-0301

HONEYWELL RA890G1229

HONEYWELL CC-PCF901

HONEYWELL CC-TCF901

HONEYWELL CC-TAIX01

HONEYWELL CC-TAIX11

HONEYWELL CC-SCMB02

HONEYWELL FC-USI-0002

HONEYWELL SPS5710-2-LF

HONEYWELL 2MLL-PMEB-CC

HONEYWELL T6861H2WB-M

HONEYWELL 51191579-100

HONEYWELL S806

HONEYWELL 51199932-200

HONEYWELL TK-FXX102

HONEYWELL TK-FPDXX2

HONEYWELL FC-SDI-1624

HONEYWELL FC-QPP-0001

HONEYWELL FC-PSU-UNI2450U

HONEYWELL FC-USI-0001

HONEYWELL 51198685-100 SPS5710-2-LF

HONEYWELL PSU-240516

HONEYWELL SD0-0824

HONEYWELL STG77L -E1H000-1-C-BHC-11C-B-00A0-TP

HONEYWELL STT750-S-0-C-BHC-11C-B-30A0-F1-0000

Colour：new                                   Warranty: 12 months

Lead Time：3-day working day      Price: Please contact us

Shipping Port: Xiamen, China         Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
