HIMA Z7149

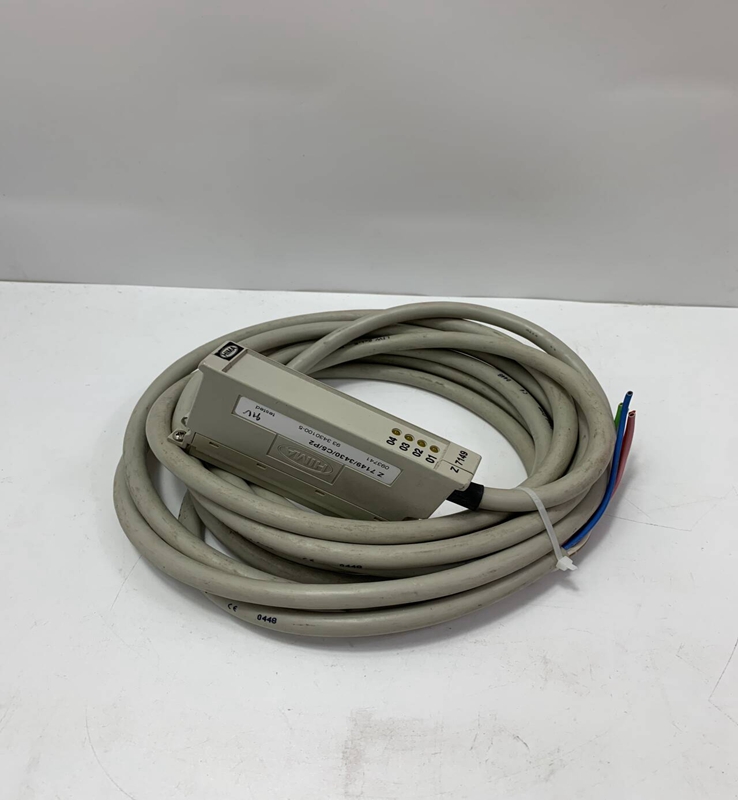

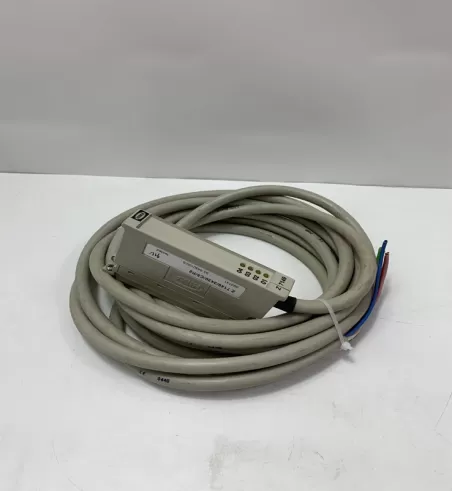

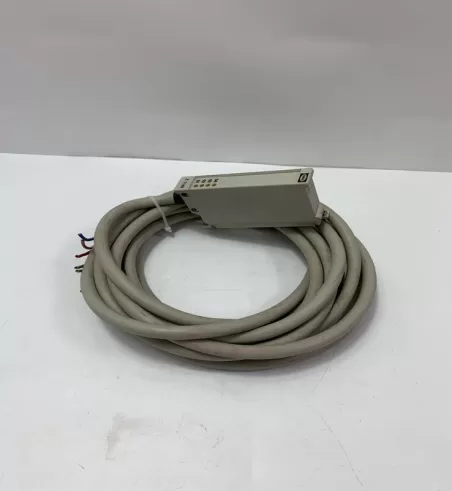

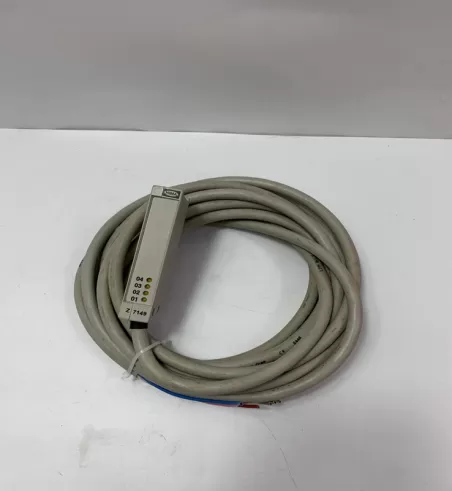

HIMA Z7149 CABLE PLUG

BrandHIMA                                 Model numberZ7149

Country of origin: Germany            Product weight0.730kg

HS code:8517623990

Product Details:

Product Dimensions:

The module supplies PES H41q with 5VDC from a main supply of 24 VDC. It is a DC/DC con-

verter with electicalisolalion between input and output voltage. The module is equipped with

overvtltage prolection and curent imitaion. The outputs are short-circuit proof. The supply

connedions are separated for the oental device/I0 modules and HIBUS interface.

The present input voltage (L+) and the output voltages are indicated with LEDs on the font

plate. Aproper operation of the module is still assured if the LED 5V CPU/EA iluminates only

slightly.

The power supply for the monitoring of the central dewice is fed separatelly ia pin z16 (NG).

Operating data

24 VDC, 15..20 %, T∞p< 15 %

Primary fuse

5AgL

Outputs for

central device/l0-modules

5 VDC,土025V1 10 A

HIBUS

5VDC,士025V1 1 A

Efoiency rate

270%

Space requirement

4 SU
