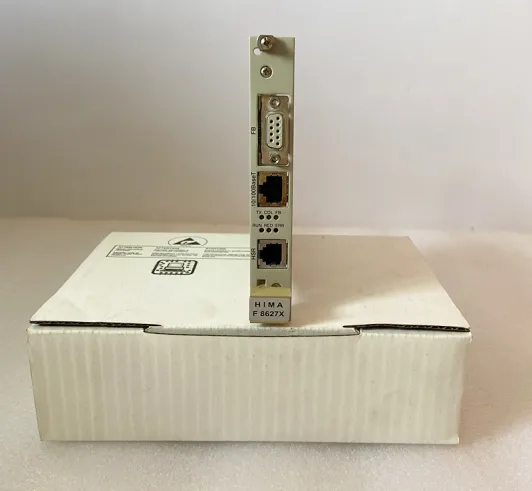

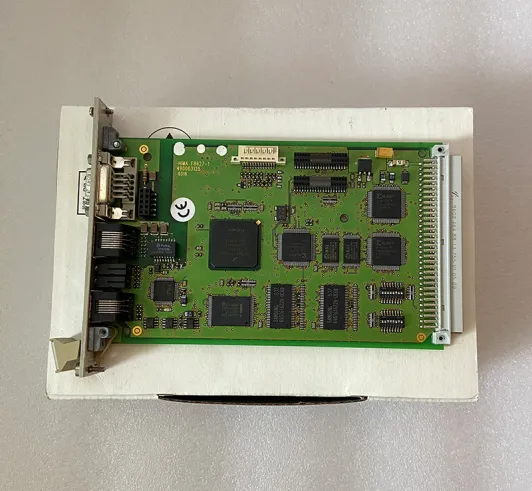

HIMA F8627X Central Module

Brand: HIMA

Model number: F8627X

Colour: new

Warranty: 12 months

Lead Time: 3-day working day

Country of origin: Germany

Price: Please contact us

Product weight: 0.13kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Product Dimensions:

For the serial interface only the bus station no. 1-31 can be set. Within an Ethernet network the bus station no. can be set from 1 to 99. Therefore the switches S1-6/7 must be set in addition to the switches S1-1/2/3/4/5. The number of the communication partners within a network is still limited to 64. This enhanced setting of the bus station no. is only possible from operating system BS41q/51q V7.0-8 (05.31) of the central module. Applications with the communication module F 8627X: – connection of the central module to a PADT (ELOP II TCP) – connection to other communication partners within an Ethernet network (safeethernet, Modbus TCP) The communication runs from the central module via the backplane bus to the communication module F 8627X and from the Ethernet ports of the F 8627X into the Ethernet network and vice versa. Special features of the central module: – Self-education: from operating system BS41q/51q V7.0-8 (05.31) – ELOP II TCP: from operating system BS41q/51q V7.0-8 (05.31) Further informations about the bus station no., ELOP II TCP, loading of operating systems and application programs (self-education) et al. corresponding to the central module you will find in the data sheet of the F8627X as well as the operating system manual of H41q/H51q and the safety manual of H41q/H51q.

Microprocessors INTEL 386EX, 32 bits Clock frequency 25 MHz Memory per microprocessor Operating System Flash-EPROM 1 MB User program Flash-EPROM 1 MB * Data SRAM 1 MB * * Degree of utilization depending on operating system version Interfaces Two serial interfaces RS 485 with electric isolation Diagnostic display Four digit matrix display with selectable information Shutdown on fault Safety-related watchdog with output 24 V, loadable up to 500 mA, short-circuit proof Construction Two European standard PCBs, one PCB for the diagnostic display Space requirement 8 SU Operating data 5 V / 2 A
