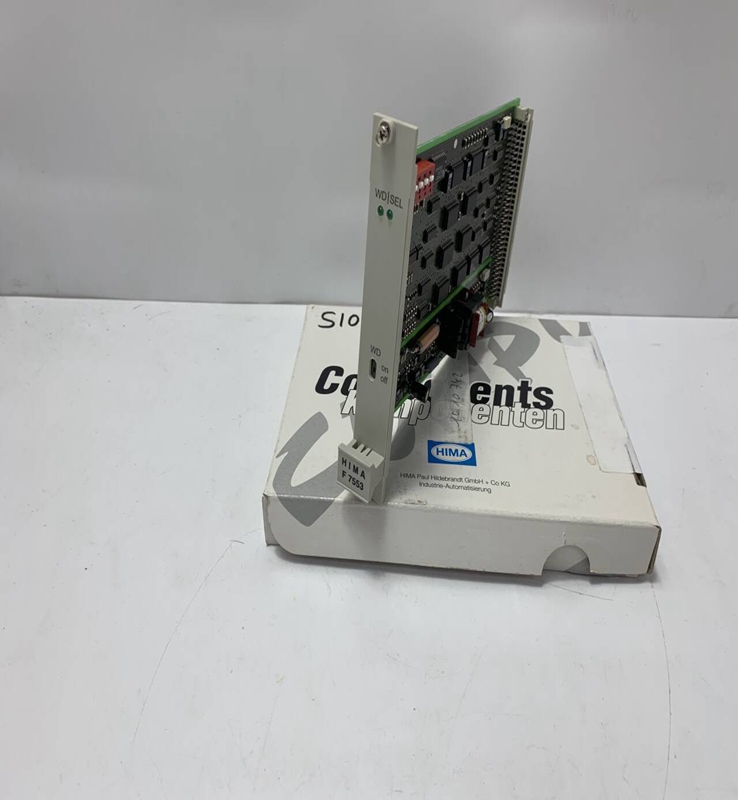

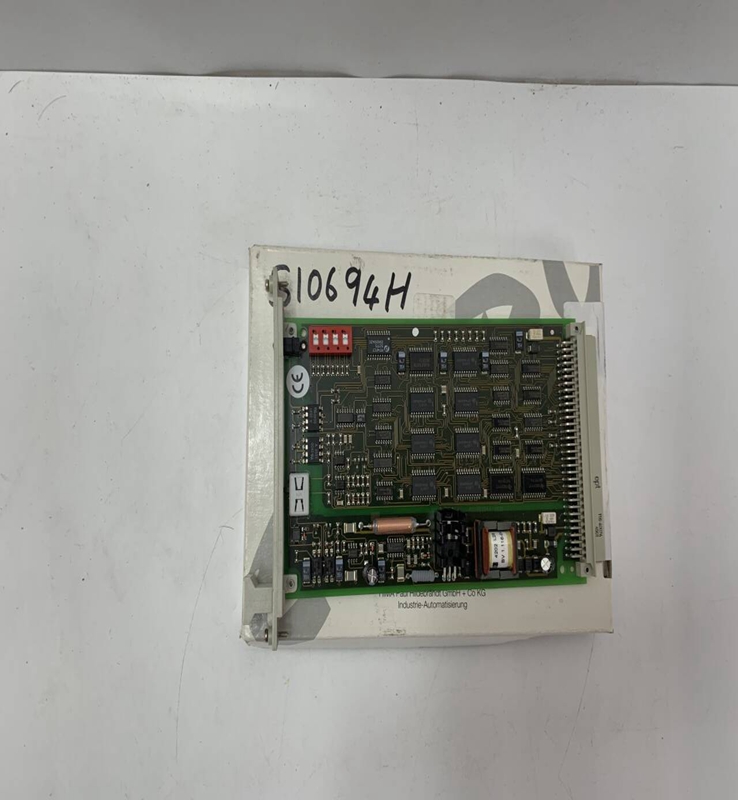

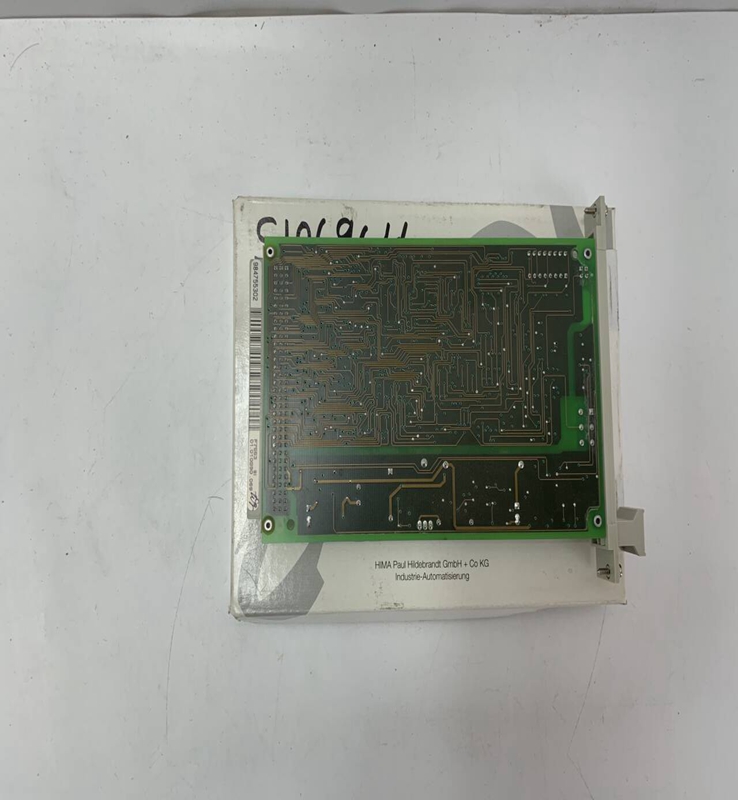

HIMA F7553

Product Dimensions：

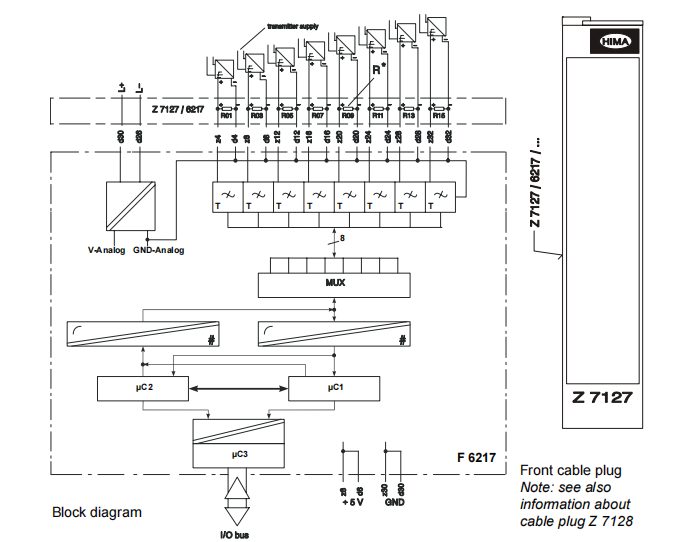

The module contains a redundant, safety-related processor system. Because of this, all the

tests are executed directly on the module. The main test routines are:

一Linearity of the A/D converters

- Overflow of the A/D converters

- Cross talking between the eight input channels

Function of the input filters

一Function of the I/0 bus communication

- Self tests of the microcontrollers

- Tests of the memories

Notes to the safety-related operation and use

Screened cables have to be used for the field input circuits, twisted cables are recommended.

If it is sure that the environment of the transmitter up to the module is free from interferences

and the distance is relatively short (e. g. inside a cabinet) then the cabling can be performed

without screened cables or twisted cables. However, the interference immunity of the analog

inputs can only be achieved by using screened cables.

Planning notes for ELOP II

For each input channel of the module exists an analog input value and an appertaining channel

fault bit. With activated channel fault bit a safety-related reaction has to be programmed in

ELOP II related to the corresponding analog input.

Recommendations for the use of the module according to IEC 61508, SIL 3

- Cables for power supply shall be locally separated from the input circuits,

- Application of a suitable earthing must be regarded,

Measures against rising of the temperature have to be taken outside of the module, e. g. .

fans in the cabinet,

- Recording events in a logbook for operation and maintenance.

A maintenance of the module is not required. In case of fault there is a switch-off. The failed

module must be replaced.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

HIMAF30

HIMAF35

HIMAF7130A

HIMAZ7128

HIMAZ7130

HIMAZ7149

HIMAK9203

HIMAF7133

HIMAF7131

HIMAF3430

HIMAF3240

HIMAB9302

HIMAB5232-2

HIMAF8650X

HIMAF6215

HIMAF3237

HIMAF3331

HIMAF3221

HIMAF3322

HIMAF8652X

HIMAF6214

HIMAF8650E

HIMAF8621A

HIMAZ7136

Colour：new                                  Warranty: 12 months

Lead Time：3-day working day     Price: Please contact us

Shipping Port: Xiamen, China        Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
