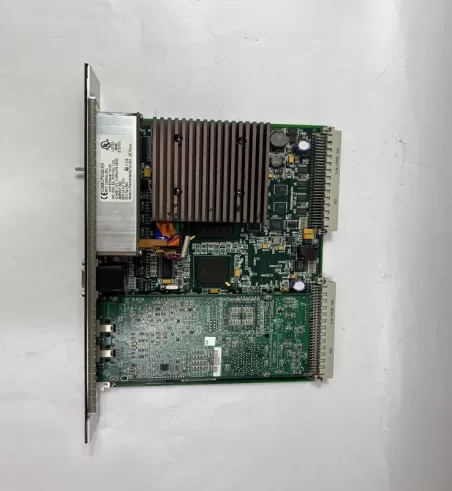

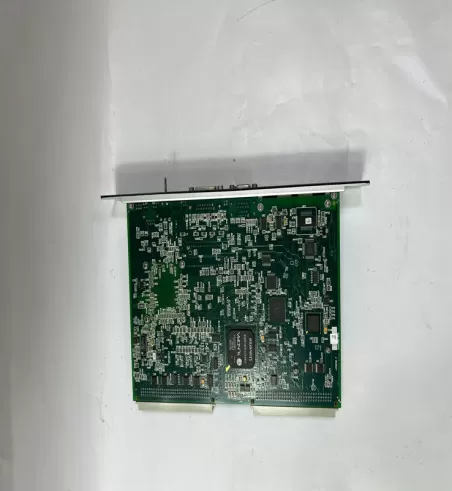

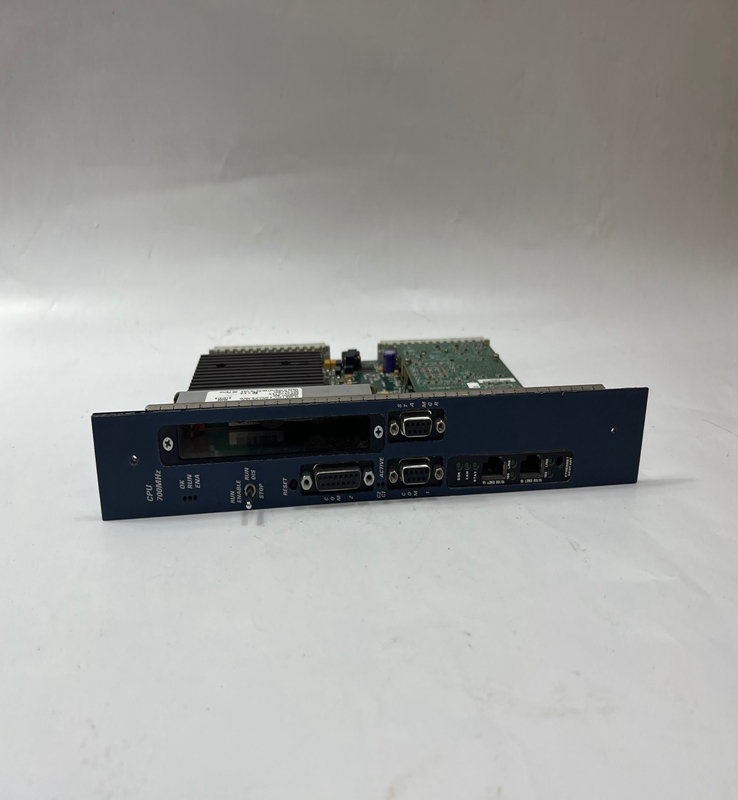

IC698CPE020-EK General Electric CPU module

IC698CPE020-EK General Electric CPU module

Brand：General Electric                  Model number：IC698CPE020-EK

Country of origin: U.S.                     Product weight：0.67kg

HS code：8517623990

Product Dimensions：

indicates a trademark of GE Intelligent Platforms, Inc. and/or its affiliates. All other trademarks are the property of their

respective owners. All rights reserved.

The RX7i CPUs are programmed and configured by the programming software to perform real

time control of machines, processes, and material handling systems. The CPU communicates

with I/O and smart option modules over a rack-mounted backplane using the VME64 Standard

format. It communicates with the programmer and HMI devices via the embedded Ethernet ports

or a serial port using SNP Slave protocol.

CPE010: 300MHz Celeron microprocessor

CPE020: 700MHz Pentium III microprocessor

Features

▪ Contains 10 Mbytes of battery-backed user memory and 10 Mbytes of non-volatile flash user

memory.

▪ Provides access to bulk memory via reference table %W.

▪ Configurable data and program memory.

▪ Programming in Ladder Diagram, C, Structured Text, and Function Block Diagram.

▪ Supports auto-located Symbolic Variables that can use any amount of user memory.

▪ Reference table sizes include 32Kbits for discrete %I and %Q and up to 32K words each for

analog %AI and %AQ.

▪ Supports Series 90-70 discrete and analog I/O, communications, and other modules. For a

list of modules supported, refer to the PACSystems RX7i Installation Manual, GFK-2223.

▪ Supports all VME modules supported by Series 90-70.

▪ Supports RX7i data monitoring over the web. Allows a combined total of up to 16 web server

and FTP connections.

▪ Supports up to 512 program blocks. Maximum size for a block is 128KB.

▪ Test Edit mode allows you to easily test modifications to a running program.

▪ Bit-in-word referencing.

▪ Battery-backed calendar clock.

▪ In-system upgradeable firmware.

▪ Three isolated serial ports: an RS-485 serial port, an RS-232 serial port, and an RS-232

Ethernet station manager serial port.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

GEIS220PRTDH1A

GEIS220PVIBH1A

GE369-HI-R-M-0-0-0-E

GEIC694MDL660CA

GE10055-F8T5/D

GEIC697PWR713

GE5KS42HN4056A

GEIC754VSF15CTD

GEIC754VGI08CTD

GEIS220PDIAH1A

GEIC200ERM002

GEIC694TBB132

GEIC693PWR322

GEAM-PACT

GEIC640MWS905

GECK75CA311

GEIC695PSA140B

GESELA36AT0100

GEIC200UDR164

GEIS200DSPXH1DBD

GEIS200ECTBG1ADE

GEIC200CPUE05-CG

GEIC695HSC308

GEIC670MDL740J

Colour：new                                  Warranty: 12 months

Lead Time：3-day working day     Price: Please contact us

Shipping Port: Xiamen, China        Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
