IC694TBB132F General Electric 32-Point High Density Extended Box

IC694TBB132F General Electric 32-Point High Density Extended Box

Product Dimensions：

Extended High-Density Terminal Blocks IC694TBB132 and IC694TBS132 are functionallyidentical to High-Density Terminal Blocks IC694TBB032 and IC694TBS032. The Extended  High-Density Terminal Blocks have an outer cover that is approximately ½-inch (13mm) deeper,  to accommodate wires with thicker insulation, such as that typically used with AC I/O modules.

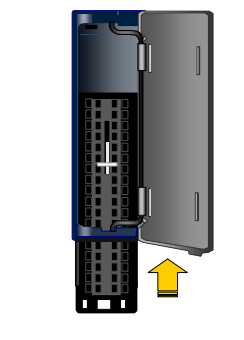

The diagram below compares the  space for wiring on a High-Density  Terminal Block (left) and an  Extended High-Density Terminal  Block (right), seen from the bottom  of the module.

Box-style Terminal Blocks, IC694TBB032 and  IC694TBB132, are used with high-density PACSystems  RX3i modules and equivalent Series 90-30 PLC modules.  These terminal blocks provide 36 screw terminals for field  wiring to the module.  Terminal Blocks IC694TBB032 and TBB132 are  functionally identical. Terminal Block IC694TBB032 comes  with a standard-depth outer cover. When installed, it is the  same depth as most other PACSystems and Series 90-30  PLC modules.  Extended Terminal Block IC694TBB132 comes with an  outer cover that is approximately ½-inch (13mm) deeper  than Terminal Block IC694TBB032, to accommodate wires  with thicker insulation, such as that typically used with AC  I/O modules.

Connecting Field Wiring to a Box-Style High-density Terminal Block  The bottom of the terminal block can be used as a gauge for the wire strip length, as shown  below. The stripped wire must be fully-inserted into the terminal block so that the insulation  meets the stop position inside the terminal, and the end of the wire is bent. Tightening the  terminal screw raises the wire and clamps it in place.

Spring-style Terminal Blocks, IC694TBS032 and  IC694TBS132, are used with high-density PACSystems  RX3i modules and equivalent Series 90-30 PLC  modules. These terminal blocks provide 36 spring-style  terminals for field wiring to the module.

Terminal Blocks IC694TBS032 and TBS132 are  functionally identical. Terminal Block IC694TBS032  comes with a standard-depth outer cover. When  installed, it is the same depth as most other  PACSystems and Series 90-30 PLC modules.

Extended Terminal Block IC694TBS132 comes with an  outer cover that is approximately ½-inch (13mm) deeper  than Terminal Block IC694TBS032, to accommodate  wires with thicker insulation, such as that typically used  with AC I/O modules.
