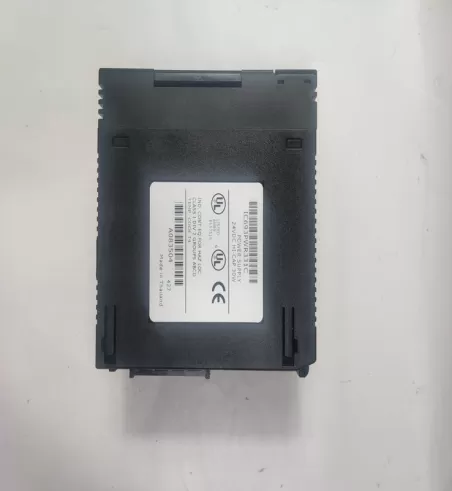

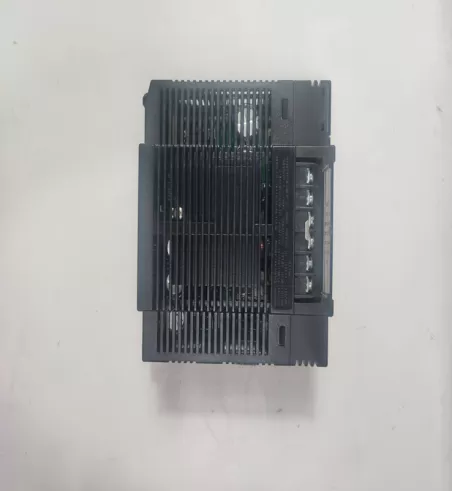

IC693PWR331C General Electric Large capacity power supply

IC693PWR331C General Electric Large capacity power supply

Brand：General Electric                  Model number：IC693PWR331C

Country of origin: U.S.                     Product weight：0.55kg

HS code：8517623990

Product Dimensions：

The Series 90-30 DC input High Capacity power supply (IC693PWR33 ) is a 30 watt wide range

supply designed for 24 VDC nominal inputs. For applications requiring greater +5V current

capacity than is available with the standard supply, this supply allows all 30 watts to be consumed

from the +5 V output. It will accept an input voltage range from 2 VDC to 30 VDC. Although it

is capable of maintaining all outputs within specifications with input voltages as low as 2 VDC, it

will not start with initial input voltages of less than 8 VDC. This power supply provides the

following outputs:

+5 VDC output.

+24 VDC Relay power output which provides power to circuits on Series 90-30 Output Relay

modules.

Isolated +24 VDC, which is used internally by some modules, can also be used to provide

external power for 24 VDC Input modules.

The load capacity for each output of this power supply is shown in the following table.

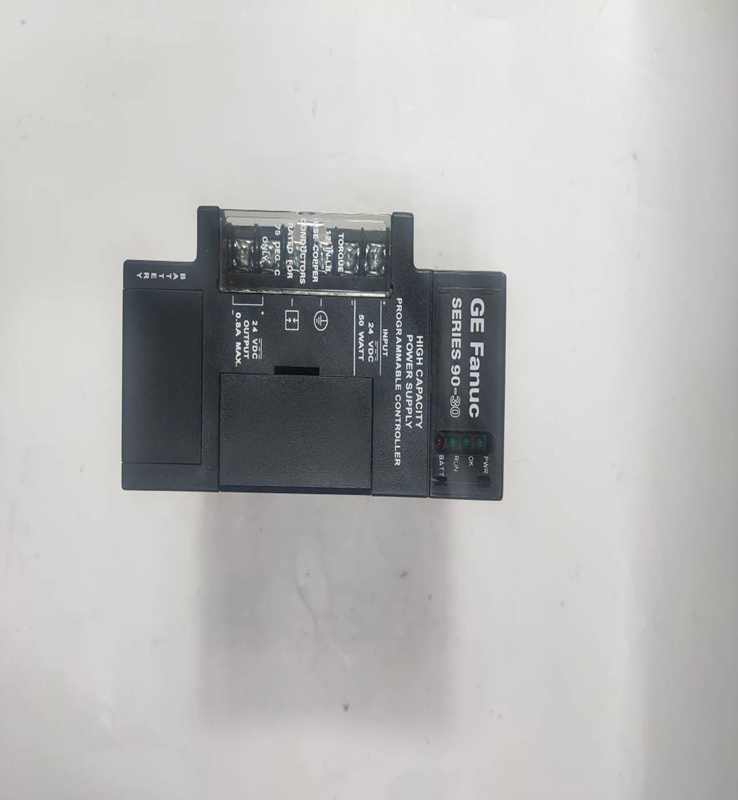

The + and - wires from the DC power source connect to the top two terminals on the

terminal strip. The + wire should be connected to the top terminal screw, and the - wire to

the second screw (counting from the top down). The ground connection connects to the

third screw. This connection scheme is clearly marked on the front of these power

supplies.
