IC693PWR322E GE 24/48 VDC standard power supply

Product Details:

IC693PWR322E GE 24/48 VDC standard power supply

BrandGE                                     Model numberIC693PWR322E

Country of origin: U.S.                      Product weight0.54kg

HS code:8517623990

Product Dimensions:

This IC693 PLC system DC input power supply is a 30-

watt supply designed for a 12 VDC nominal input. It will

accept an input range of 9.6 to 15.0 VDC. It mounts in a

standard power supply slot in any IC693 PLC baseplate.

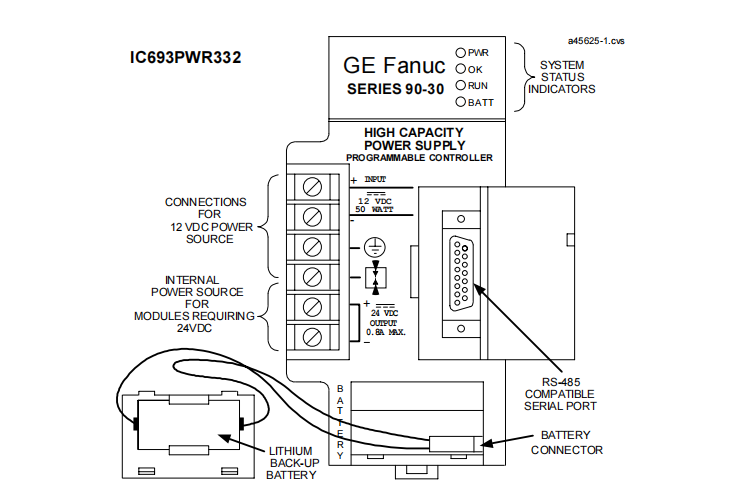

The + and – wires from the 12 VDC power source

connect to the top two protected terminals on the powers

supply terminal board. Connect the + wire to the top

terminal and the – wire to the second terminal. A

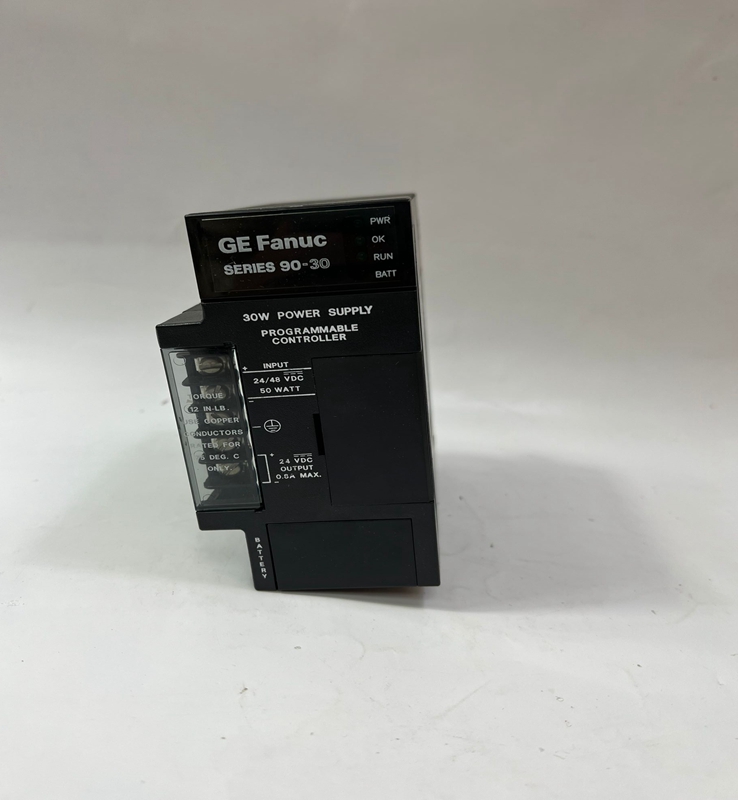

connection diagram is printed on the front of the power

supply module next to the terminal board.

The bottom two terminal board terminals provide

connections to the Isolated 24 VDC output. This output

can be used to provide power for input circuits for 24

VDC Input Modules (within the 15 watt limitation of this

output). This is useful because power switched to input

points must be supplied from a source external to the

IC693 input modules.

The input overvoltage protection devices are connected

internally to pin 4 of the terminal board. This pin is

normally connected to pin 3 (frame ground) via a factoryinstalled jumper strap. If a Hi-Pot test is to be performed

on this supply, the jumper strap must be removed during

the test so that the overvoltage protection devices are not

damaged. After testing, replace the jumper strap to

restore overvoltage protection during normal operation.
