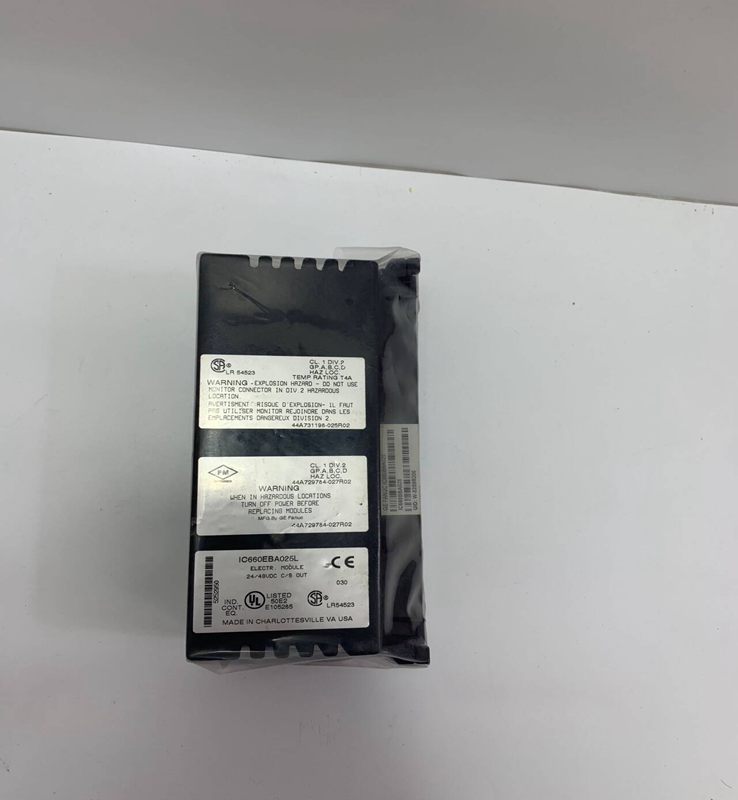

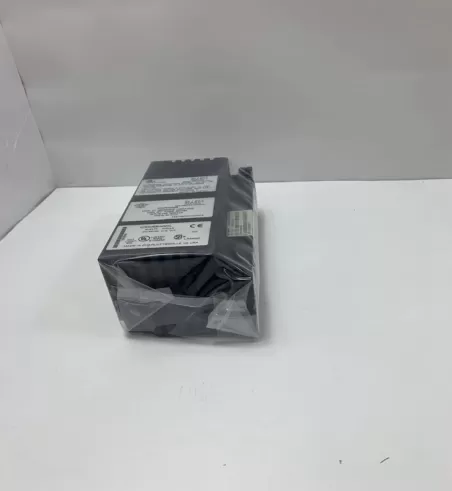

IC660EBA025L GE FANUK

Product Dimensions：

Current-source Analog Output Blocks have 6 output circuits for

devices that accept 4 to 20mA signals. Outputs 5 and 6 can also be

used for voltage applications. Two Current-source Analog Output

blocks are available:

115 VAC Current-source Analog Output Block

(IC66*BBA105)

24/48 VDC Current-source Analog Output Block

(IC66*BBA025)

These blocks are identical except for the power supply

Block features include:

Six 4-to-20 mA analog output circuits

No calibration required for operation

Software configurable

Advanced diagnostics

Dedicated Bus Switching Module control

These blocks provide power to all circuits; no separate power is

required for 4-20mA signals. Each output provides power and

control of a 4-to-20mA current loop. This power is isolated from the

rest of the block. The outputs and BSM circuitry are electrically

common. Output accuracy is 0.15% at 25°C. Output resolution is

6µA.

The block has a dedicated digital output that can be used to drive a

Bus Switching Module (IC66*BSM012 only). The outputs and BSM

circuitry are electrically common.

Configurable features of these blocks include:

Output Hold Last State or default

Circuit scaling to engineering units values

Output feedback checking and feedback time

CPU Redundancy

Fault reporting can be enabled or disabled circuit-by-circuit. These

blocks automatically perform the following diagnostic checks:

Output Overrange and Underrange

Output Feedback

These blocks are compatible with all Bus Controllers. Handheld

Monitor model IC66*HHM501G (version 4.0) or later is required for

configuration.

For an IC697 series PLC, the CPU must be release 2 or later. The

bus controller and programming software must be release 3 or later.

For an IC600 series PLC, the CPU must be rev. 105 or later. For an

IC600 series “Plus” PLC, rev. 110 or later is required. The bus

controller must be IC66*CBB902 or IC66*CBB903. The

programming software must be rel. 4.02 or later.

For an IC550 series PLC, the CPU must be rev. 3.0 or later. The

programming software must be rel. 2.01 or later.

If a Bus Switching Module will be attached directly to the block, it

must be the 24/48 VDC version (IC66*BSM021).
