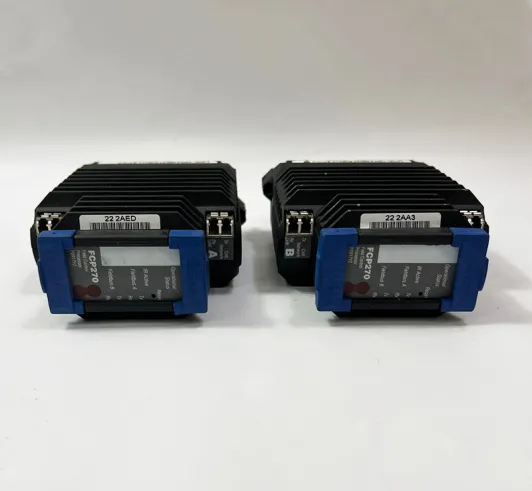

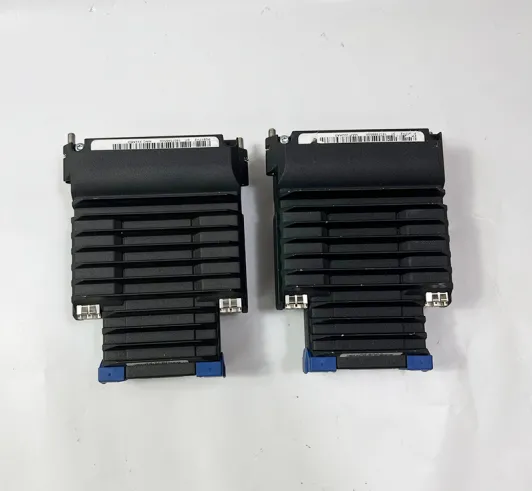

FOXBORO FCP270 Field Control Processor 270

Brand: FOXBORO

Model number: FCP270

Colour: new

Warranty: 12 months

Lead Time: 3-day working day

Country of origin: u.s.a

Price: Please contact us

Product weight: 0.71kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Product Dimensions:

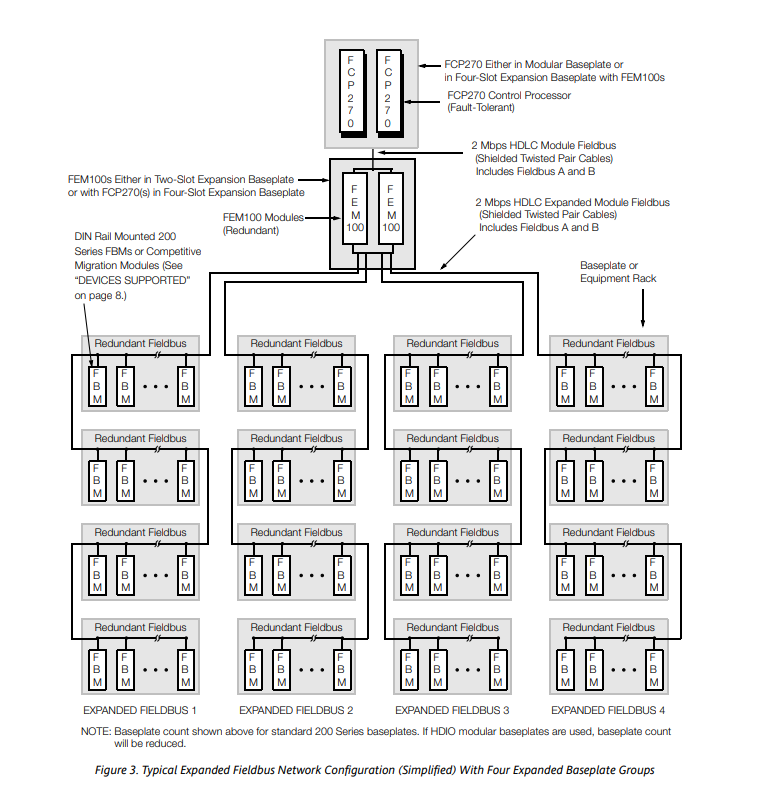

Performs regulatory, logic, timing, and sequential control together with connected Fieldbus Modules (FBMs)  Performs data acquisition and alarm detection4 and notification  Supports up to 32 200 Series FBMs - referring to4 both Compact or standard types  Supports up to 128 200 Series FBMs (Compact4 or standard) with a Fieldbus Expansion Module 100 (FEM100)  Supports up to 64 of the 100 Series FBMs4  No Fieldbus Communication Module is required4  Connects to The MESH control network via4 standard fiber optic 100 Mbps Ethernet

Uses a rugged, die cast aluminum housing for mounting in a non-vented field enclosure  Can operate in Class G3 harsh environments4  Is CE certified for field mounting in enclosures4  Supports both the 2 Mbps or 268 Kbps HDLC4 fieldbuses simultaneously with the FBI200 or FBI100, allowing connections to both 200 Series and 100 Series FBMs (affects the total number of each type of FBM supported).  Offers unique, patented, fault-tolerant operation4 using two control modules to greatly improve reliability relative to other process controllers  Uses versatile control algorithms and a wide4 variety of FBMs to provide control capabilities for a broad range of process applications.

Light-emitting diodes (LEDs) on the front of the FCP270 module provide visual indication of the:  FCP270 operational status4  Communications activity of The MESH control4 network A and B links  Communications activity of fieldbus A and B4  Infrared communications activity.4 The MESH control network path Tx LEDs indicate which controller is primary as well as the network path it is using; these LEDs are only active on the primary module.
