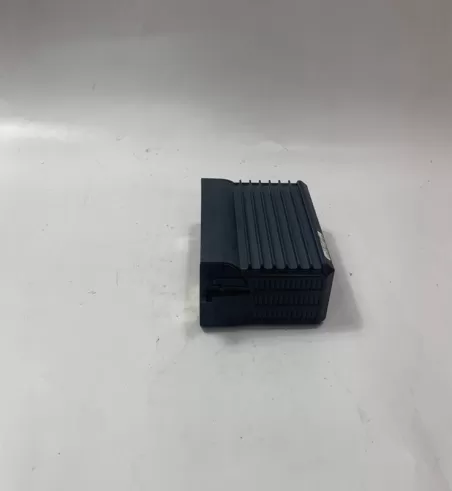

4609ACM Foxboro

Product Dimensions：

Each module has a single 10/100Mbps

copper Ethernet connection and a single RJ-45

connector on the front of the module for connectivity

to dual-ported Ethernet devices. The FBM233 is

connected to Ethernet switches or hubs in order to

communicate with one external device or up to 64

external devices.

A pair of modules combine to provide redundancy at

the Fieldbus Module (FBM) level. In this configuration,

one FBM233 is the Master, and the other is the

Tracker module. Input points on the control station

are updated from the device inputs received on the

 network connected to the Master. Device output

points, depending on the I/O driver, are written by

both the Master and Tracker module. Role switching

is automatic if problems are detected (for example,

loss of heartbeat from any device) by the I/O driver,

or the user can switch the roles at any time via

SMDH. The general network configuration is shown

in Figure 1.

The FDSI configurator sets up the FBM233 port and

XML based device configuration files. The port

configurator allows for easy setup of the

communication parameters for each port (such as,

Dynamic Host Configuration Protocol (DHCP),

IP addresses). The device configurator is not needed

for all devices, but when needed it configures device

specific and point specific considerations (such as,

scan rate, address of the data to be transferred, and

the amount of data to be transferred in one

transaction).

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

Foxboro FBI100

Foxboro P0926HW

Foxboro P0973CN

Foxboro P0922QS(FBM228)

Foxboro P0926GX(FBM233)

Foxboro FRS923-2SV-C

Foxboro FBM237

Foxboro E69F-B12

Foxboro P0800MW

Foxboro P0926GU

Foxboro P0914TD

Foxboro P0922VT

Foxboro P0914TG

Foxboro P0973JP

Foxboro P0973JM

Foxboro C0136HZ

Foxboro C0131MA

Foxboro M40G

Foxboro FBM231

Foxboro IGP10-D22E1F-M1L1

Foxboro D0128QJ

Foxboro P0926JM

Foxboro P0916JQ

Foxboro P0917MF

Foxboro RH926GH

Foxboro P0972KA

Colour：new                                 Warranty: 12 months

Lead Time：3-day working day    Price: Please contact us

Shipping Port: Xiamen, China       Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
