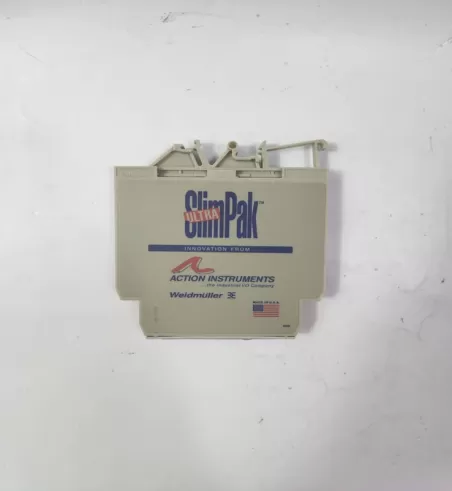

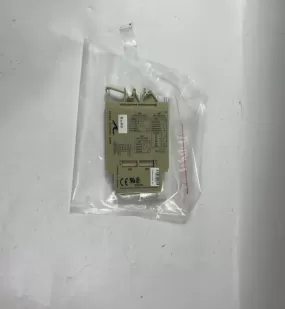

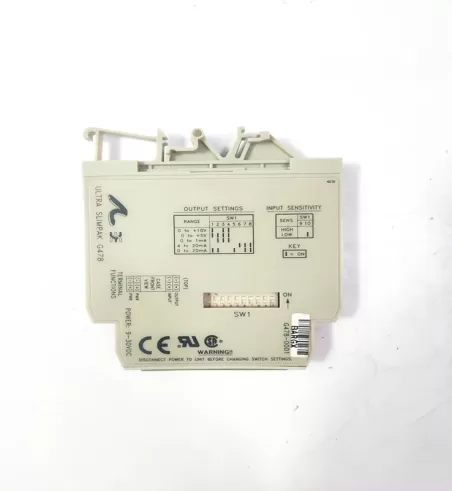

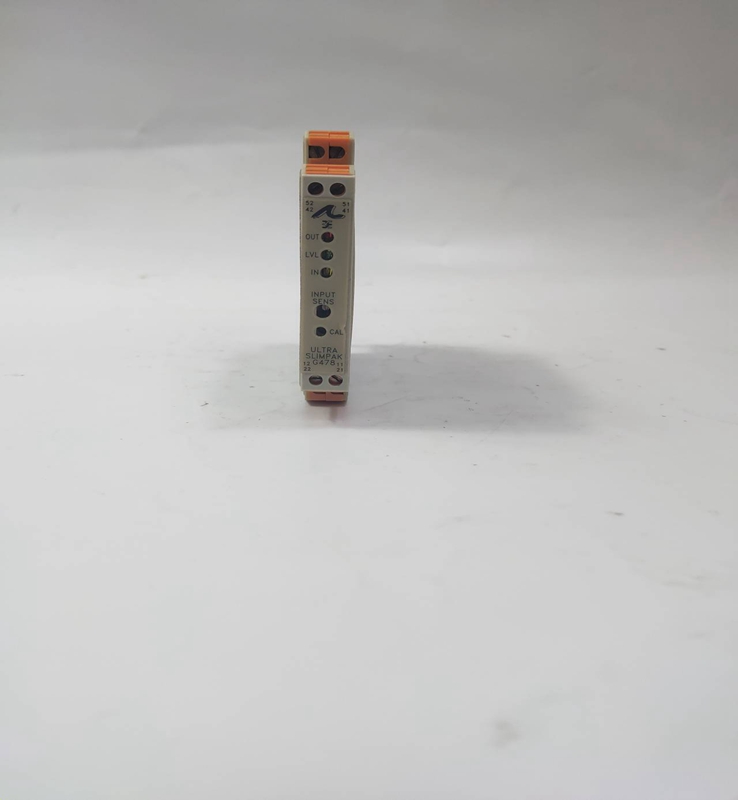

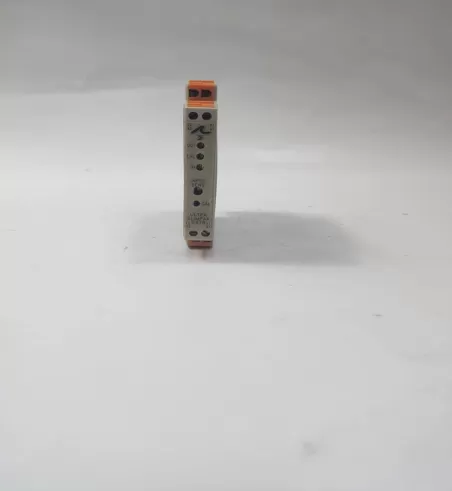

G478-0001 Eurotherm Frequency Input Signal Conditioner

G478-0001 Eurotherm Frequency Input Signal Conditioner

Brand：Eurotherm                               Model number：G478-0001

Country of origin:Britain                      Product weight：0.55kg

HS code：8517623990

Product Dimensions：

The Ultra SlimPak is a DIN rail mount, DC input signal

conditioner with 1800VDC isolation between input, output and

power. The field configurable input and output offers flexible,

wide ranging capability for DC current and voltage signals.

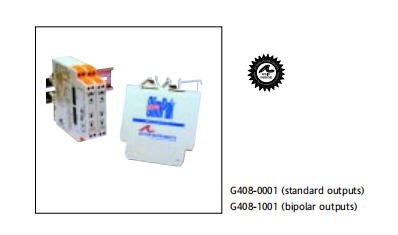

The input can be configured for any one of 12 voltage ranges from10mV to 100V or 6 current ranges from 1mA to 100mA (see Table1). The output is linear to the input and can be set for either 0-5V, 0-10V, 0-1mA, 0-20mA or 4-20mA (for models G408-0001)

and -5 to +5V or -10 to +10V (for model G408-1001).

Wide ranging, precision zero and span pots allow 50% adjustability of offset and span turn-down within each of the 18 switch selectable ranges. For example, the 0-2mA input range could be turned down to 0-1mA and provide a full scale output signal (e.g.4-20mA), or turned down and offset to achieve a 1-2mA/4-20mA I/O combination.

The G408 also accepts bipolar inputs (e.g. 10V range set to bipolar =-10 to +10V) and offers selectable normal or reverse operation (e.g.4-20mA/20-4mA). The ASIC based I/O channel is optically isolated to 1800VDC and is transformer isolated from the power supply

The useful in eliminating ground loops, converting signal

levels, and providing signal drive. The field configurable, wide

ranging capability ensures maximum flexibility for most DC to DC

applications, minimizing spare part requirements.

We have the same series of models in stock.  If you don't find the model you need, please contact us and we will provide you with an official quotation！

Eurotherm TU1451

Eurotherm 2500M/DI8CONTACT

Eurotherm 2704/VH/321/XX/R4

Eurotherm G478-0001

Eurotherm G408-0001

Colour：new                                   Warranty: 12 months

Lead Time：3-day working day      Price: Please contact us

Shipping Port: Xiamen, China         Payment:T/T

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
