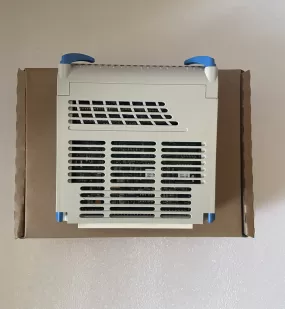

KL4501X1-BB1 Emerson

Product Dimensions：

Field power supplied to this device, either at the field

terminal or as bussed field power through the

carrier, must be removed before removing or

connecting the device.

This unit may be removed or inserted while system

power is energized under the following conditions:

(Note Only one unit at a time may be removed with

system power energized.)

• When used with KJ1501X1-BC1 System Dual

DC/DC Power Supply operating on 24 VDC or

12 VDC input power. The primary circuit wiring

inductance for input power must be less than 23

uH, or a certified supply with an open circuit

voltage, Ui of 12.6 VDC and an Lo of less than

23 uH (including wire inductance).

• Non sparking field circuits MUST be deenergized before removing and inserting this

product.

A rotary keying system ensures compatibility

between I/O cards and terminal blocks after

installation is complete. The terminal block must

have the keys set for the I/O card with which it is to

be used.

Note: Refer to the product label for serial number

and location and date of manufacture. Refer also to

the wiring diagram on the left side of the card.

Warning: This product has specific instructions for

installation, removal and operation in hazardous

areas. Refer to document 12P2046 "DeltaV 

Scalable Process System Zone 2 Installation

Instructions". Other installation instructions are

available in the "Installing Your DeltaV Automation

System" manual.
